Home > products > Titanium Wire > ASTM F136/F1341 Pure Titanium Wire Titanium Weld Wire

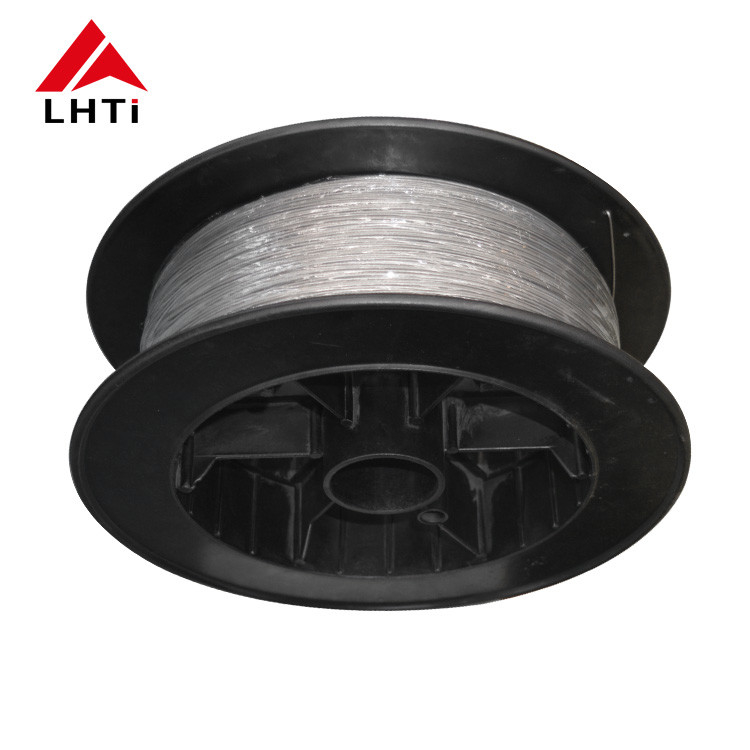

ASTM F136/F1341 Pure Titanium Wire Titanium Weld Wire

Product Details

Place of Origin: China

Brand Name: LHTI

Certification: ISO9001:2015; TUV; SGS;BV

Model Number: LH-12

Payment & Shipping Terms

Minimum Order Quantity: 10 kg

Packaging Details: Coil and spool package in carton case or plywood case,straight wire package in Plastic case,outside is standard export plywood case

Delivery Time: In stock--3 days.production--15-20 working days

Payment Terms: L/C, D/P, T/T, Western Union,paypal etc

Supply Ability: 50000 kgs per month

Get Best Price
Highlight:
Product Name:
ERTi 1 ERTi 2 Gr.1 Gr.2 Straight / Coil Ti Pure Titanium Wire Price
Grade:
Grade1 Grade2 ErTi1 ErTi2
Shape:
Coil,spool,straight
Material:
Pure Titanium
Surface:
Pickling Surface/polish Surface
Package:
Standard Export Package
Hot Sale Diameter:
0.8mm-5mm Etc
Length:
1000mm
Key Words:
Thin Titanium Wire
Product Name:
ERTi 1 ERTi 2 Gr.1 Gr.2 Straight / Coil Ti Pure Titanium Wire Price
Grade:
Grade1 Grade2 ErTi1 ErTi2
Shape:
Coil,spool,straight
Material:
Pure Titanium
Surface:
Pickling Surface/polish Surface
Package:
Standard Export Package
Hot Sale Diameter:
0.8mm-5mm Etc
Length:
1000mm
Key Words:
Thin Titanium Wire
ASTM F136/F1341 Pure Titanium Wire Titanium Weld Wire

ASTM F136/F1341 Pure Titanium Wire Titanium Weld Wire





1.Low Density and High Strength
2.Excellent Corrosion Resistance
3.Good resistance to effect of heat
4.Excellent Bearing to cryogenic property
5.Nonmagnetic and Non-toxic
6.Good thermal properties
7.Low Modulus of Elasticity



ASTM Base Metal Grade Base metal Normal composition Recommended Filler Metal
  UTS(min.) ksi[Mpa] YS(min.) ksi[Mpa]
Grade 1 35[240] 20[138] Unalloyed Ti CP1 ERTi-1
Grade 2 50[345] 40[275] Unalloyed Ti CP2 ERTi-2
Grade 4 80[550] 70[483] Unalloyed Ti CP4 ERTi-4
Grade 5 130[895] 120[828] Ti 6AL-4V ERTi-5
Grade 7 50[345] 40[275] Ti 0.15Pd ERTi-7



AWS CHEMICAL SPECIFICATIONS
AWS A5.16 UNS C O N H I Al V Pd
  Number
ERTi 1 R50100 0.03 0.03-0.10 0.012 0.005 0.08 - - -
ERTi 2 R50120 0.03 0.08-0.16 0.015 0.008 0.12 - - -
ERTi 4 R50130 0.03 0.08-0.32 0.025 0.008 0.25 - - -
ERTi 5 R56400 0.05 0.12-0.20 0.03 0.015 0.22 5.5-6.7 3.5-4.5 -
ERTi 7 R52401 0.03 0.08-0.16 0.015 0.008 0.12 - - 0.12-0.25
