GR23 Titanium Weld Wire Ti6Al4V ELI Coil Spool

Brand Name:	LHTI
Model Number:	LH-12
MOQ:	10 kg
Payment Terms:	L/C,D/P,T/T,Western Union,paypal etc
Supply Ability:	50000 kgs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Product Name:

ERTi 1 ERTi 2 Gr.1 Gr.2 Straight / Coil Ti Pure Titanium Wire Price

Grade:

Grade1 Grade2 ErTi1 ErTi2

Shape:

Coil,spool,straight

Material:

Pure Titanium

Surface:

Pickling Surface/polish Surface

Package:

Standard Export Package

Hot Sale Diameter:

0.8mm-5mm Etc

Length:

1000mm

Key Words:

Thin Titanium Wire

Packaging Details:

Coil and spool package in carton case or plywood case,straight wire package in Plastic case,outside is standard export plywood case

Supply Ability:

50000 kgs per month

Highlight:

GR23 titanium welding wire

titanium wire for welding

GR23 titanium weld wire

Product Description

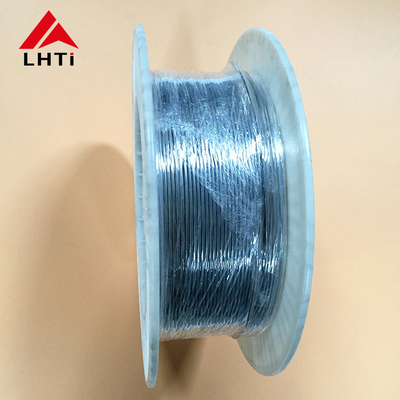

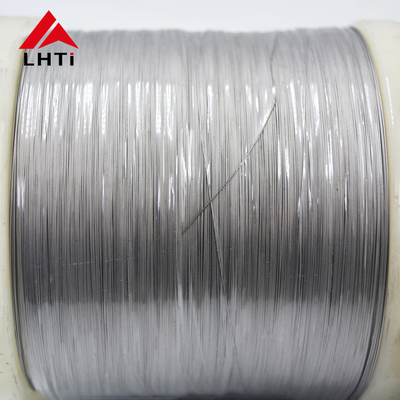

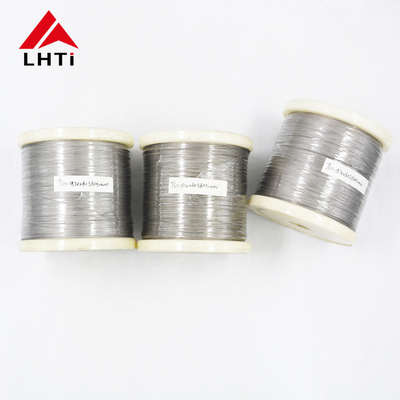

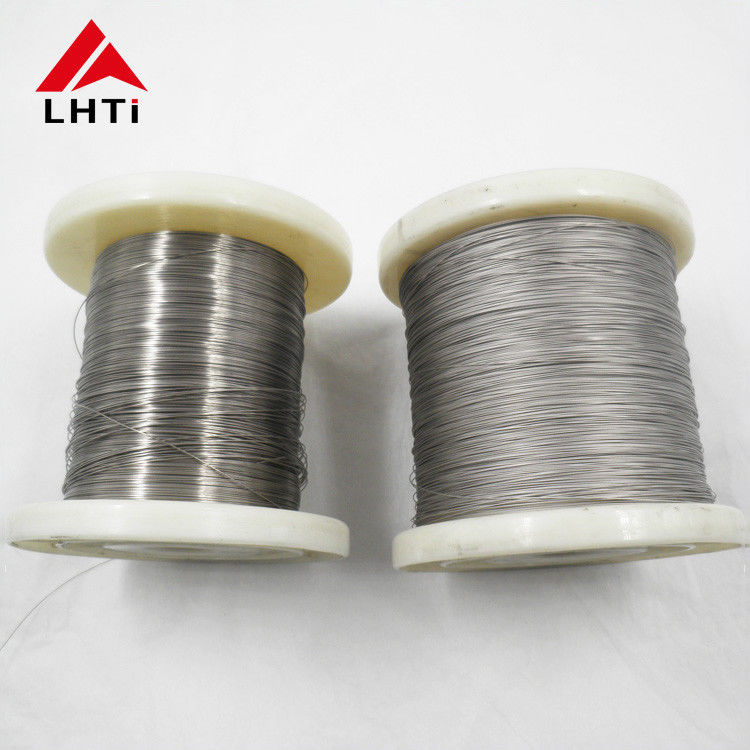

GR23 Titanium Weld Wire Ti6Al4V ELI Coil Spool

GR23 titanium wire is the higher purity, extra low interstitial (ELI) version of Ti 6Al 4V, and is supplied as a weld wire in coil, spool or straight form. It is chosen wherever high strength, light weight, good corrosion resistance and high toughness have to be combined, and it offers better damage tolerance than other titanium alloys. Because it is biocompatible and has good fatigue strength together with a low modulus, it suits dental and medical parts, including implantable components. Common diameters run from 0.8 mm to 5 mm, and other sizes can be drawn to order.

Technical Specifications

Item	Titanium weld wire
Base material	Ti6Al4V ELI (GR23)
Type	TIG and MIG welding wire
Form	Coil, spool, straight
Diameter range	0.8 mm to 5 mm
Standard	AWS A5.16, ASTM
Surface finish	Pickled or polished
Typical use	Medical and dental components

Base Metal and Filler Metal

Base metal grade	Normal composition	Recommended filler metal	UTS min (MPa)	YS min (MPa)
Grade 1	Unalloyed Ti CP1	ERTi-1	240	138
Grade 2	Unalloyed Ti CP2	ERTi-2	345	275
Grade 4	Unalloyed Ti CP4	ERTi-4	550	483
Grade 5	Ti 6Al 4V	ERTi-5	895	828
Grade 7	Ti 0.15Pd	ERTi-7	345	275

AWS A5.16 Chemical Specifications (%)

AWS number	UNS	C	O	N	H	Fe	Al	V	Pd
ERTi 1	R50100	0.03	0.03-0.10	0.012	0.005	0.08	-	-	-
ERTi 2	R50120	0.03	0.08-0.16	0.015	0.008	0.12	-	-	-
ERTi 4	R50130	0.03	0.08-0.32	0.025	0.008	0.25	-	-	-
ERTi 5	R56400	0.05	0.12-0.20	0.03	0.015	0.22	5.5-6.7	3.5-4.5	-
ERTi 7	R52401	0.03	0.08-0.16	0.015	0.008	0.12	-	-	0.12-0.25

Applications

The wire is used to join titanium tube, plate, bar and fittings where a joint of matching strength and corrosion resistance is needed, and it also serves in medical, dental and sports components that call for light weight and toughness. Coils and spools are packed in a carton or plywood case, straight wire goes into a plastic case, and the outside is a standard export plywood case.

GR23 titanium weld wire Ti6Al4V ELI
