Home > products > Titanium Wire > Pure Titanium Wire Titanium TI-6AL-4V Weld Wire

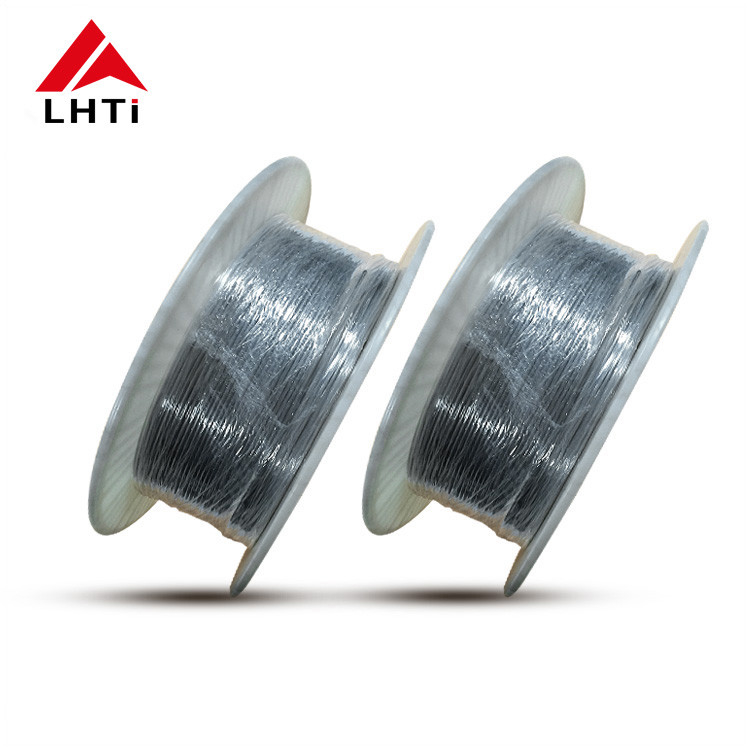

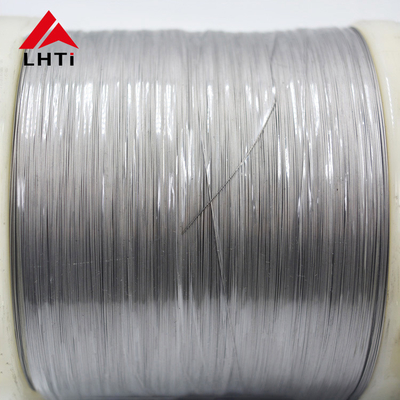

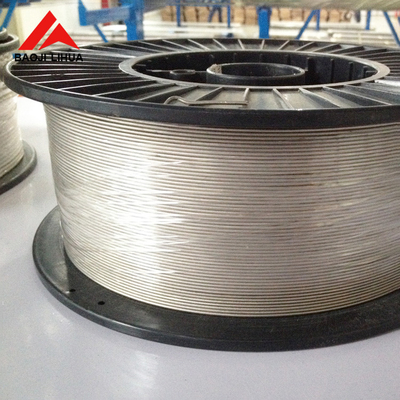

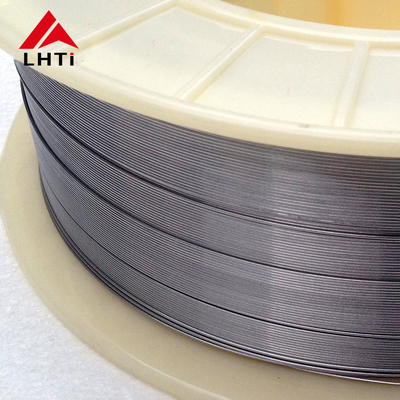

Pure Titanium Wire Titanium TI-6AL-4V Weld Wire

Product Details

Place of Origin: China

Brand Name: LHTI

Certification: ISO9001:2015; TUV; SGS;BV

Model Number: LH-12

Payment & Shipping Terms

Minimum Order Quantity: 10 kg

Packaging Details: Coil and spool package in carton case or plywood case,straight wire package in Plastic case,outside is standard export plywood case

Delivery Time: In stock--3 days.production--15-20 working days

Payment Terms: L/C, D/P, T/T, Western Union,paypal etc

Supply Ability: 50000 kgs per month

Get Best Price
Highlight:
Product Name:
ERTi 1 ERTi 2 Gr.1 Gr.2 Straight / Coil Ti Pure Titanium Wire Price
Grade:
Grade1 Grade2 ErTi1 ErTi2
Shape:
Coil,spool,straight
Material:
Pure Titanium
Surface:
Pickling Surface/polish Surface
Package:
Standard Export Package
Hot Sale Diameter:
0.8mm-5mm Etc
Length:
1000mm
Key Words:
Thin Titanium Wire
Product Name:
ERTi 1 ERTi 2 Gr.1 Gr.2 Straight / Coil Ti Pure Titanium Wire Price
Grade:
Grade1 Grade2 ErTi1 ErTi2
Shape:
Coil,spool,straight
Material:
Pure Titanium
Surface:
Pickling Surface/polish Surface
Package:
Standard Export Package
Hot Sale Diameter:
0.8mm-5mm Etc
Length:
1000mm
Key Words:
Thin Titanium Wire
Pure Titanium Wire Titanium TI-6AL-4V Weld Wire

Pure Titanium Wire Titanium TI-6AL-4V Weld Wire



Our Product Titanium product detailed specifications
Name Titanium wire Gr.1 Gr.2 Gr.5 Gr.7 Gr.9 Titanium alloy wire Titanium Welded Wire
Standard AWS A5.16,ASTM B348,ASTM B863,,ASME SB863,ASTM F136,ASTM F67,ASME SB863
Grade Gr.1, Gr.2, Gr.3, Gr.4, Gr.5 (Ti-6Al4V), Gr.7 (Ti-0.2Pd), Gr.9 (Ti-3Al2.5V), Gr.12 (Ti-0.3Mo-0.8Ni), Gr19 (Ti-3Al-8V-6Cr-4Mo-4Zr), Gr.23 (Ti6Al4V-ELI)
Size (mm) Straight Dia.: 1.0mm-5.0mm ( tolerance: +/-0.05mm)
Size (mm) Coiled Dia: 0.03mm-5.0mm ( tolerance: +/-0.05mm )
Surface Black, pickled, polished (diameter> 1mm)
Shape Barrel Titanium weld wire, Titanium coil weld wire, titanium straight weld wire, Titanium spools weld wire



ASTM Base Metal Grade Base metal Normal composition Recommended Filler Metal
  UTS(min.) ksi[Mpa] YS(min.) ksi[Mpa]
Grade 1 35[240] 20[138] Unalloyed Ti CP1 ERTi-1
Grade 2 50[345] 40[275] Unalloyed Ti CP2 ERTi-2
Grade 4 80[550] 70[483] Unalloyed Ti CP4 ERTi-4
Grade 5 130[895] 120[828] Ti 6AL-4V ERTi-5
Grade 7 50[345] 40[275] Ti 0.15Pd ERTi-7



AWS CHEMICAL SPECIFICATIONS
AWS A5.16 UNS C O N H I Al V Pd
  Number
ERTi 1 R50100 0.03 0.03-0.10 0.012 0.005 0.08 - - -
ERTi 2 R50120 0.03 0.08-0.16 0.015 0.008 0.12 - - -
ERTi 4 R50130 0.03 0.08-0.32 0.025 0.008 0.25 - - -
ERTi 5 R56400 0.05 0.12-0.20 0.03 0.015 0.22 5.5-6.7 3.5-4.5 -
ERTi 7 R52401 0.03 0.08-0.16 0.015 0.008 0.12 - - 0.12-0.25




Pure Titanium Wire Titanium TI-6AL-4V Weld Wire 0
