products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Titanium Wire
Created with Pixso.

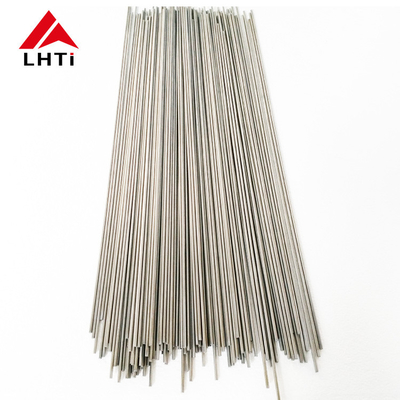

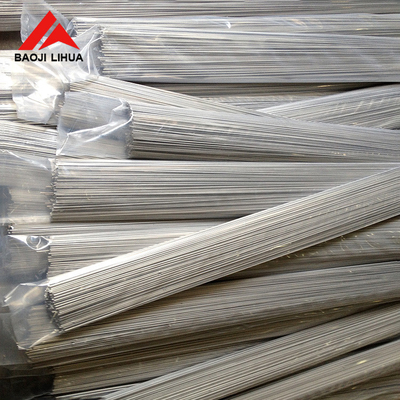

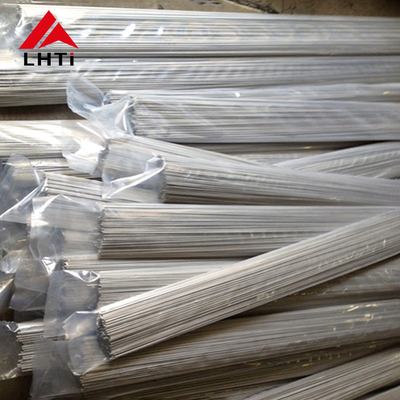

Straight Pure Titanium Wire With Pickling Surface

Straight Pure Titanium Wire With Pickling Surface

Straight Pure Titanium Wire With Pickling Surface

Brand Name: LHTI
Model Number: LH-12
MOQ: 10 kg
Payment Terms: L/C, D/P, T/T, Western Union,paypal etc
Supply Ability: 50000 kgs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001:2015; TUV; SGS;BV
Product Name:
ERTi 1 ERTi 2 Gr.1 Gr.2 Straight / Coil Ti Pure Titanium Wire Price
Grade:
Grade1 Grade2 ErTi1 ErTi2
Shape:
Coil,spool,straight
Material:
Pure Titanium
Surface:
Pickling Surface/polish Surface
Package:
Standard Export Package
Hot Sale Diameter:
0.8mm-5mm Etc
Length:
1000mm
Key Words:
Thin Titanium Wire
Packaging Details:
Coil and spool package in carton case or plywood case,straight wire package in Plastic case,outside is standard export plywood case
Supply Ability:
50000 kgs per month
Product Description

Straight Pure Titanium Wire With Pickling Surface



Titanium Welding Wire On Spool is applied in aerospace, aviation, military industry, light industry, chemical industry, 3D printing, welding, textile, electronics, superconductivity, medical and petrochemical fields. It is available with a variety of specifications and types, and we can also have stocks as customer requires. This wire also has a metallic luster and is malleable. Its main characteristics are low density, high mechanical strength and easy processing, meanwhile, it has good corrosion resistance and is not affected by the atmosphere and seawater.



Product Information

Brands: ERTI-1, ERTI-2, ERTi-3, ERTI-4, ERTi-5

Implementation standards: AWS A5.16, GB/T3623, ASTM B865

Specifications:￠1.0, 1.2, 1.6mm (Titanium Welding Wire On Spool)

Surface treatment: bright surface

Surface quality: high precision, good finish, no oxidation color, no cracks, peeling, pricking, speckles and inclusions. Minor local scratches, scrapes, spots, pits, etc., not exceeding the allowable deviation of the wire diameter are allowed.

Advantages: corrosion resistance, high temperature resistance, low temperature resistance, non - toxic non - magnetic, high strength, low thermal conductivity, etc



ASTM Base Metal Grade Base metal Normal composition Recommended Filler Metal
  UTS(min.) ksi[Mpa] YS(min.) ksi[Mpa]
Grade 1 35[240] 20[138] Unalloyed Ti CP1 ERTi-1
Grade 2 50[345] 40[275] Unalloyed Ti CP2 ERTi-2
Grade 4 80[550] 70[483] Unalloyed Ti CP4 ERTi-4
Grade 5 130[895] 120[828] Ti 6AL-4V ERTi-5
Grade 7 50[345] 40[275] Ti 0.15Pd ERTi-7



AWS CHEMICAL SPECIFICATIONS
AWS A5.16 UNS C O N H I Al V Pd
  Number
ERTi 1 R50100 0.03 0.03-0.10 0.012 0.005 0.08 - - -
ERTi 2 R50120 0.03 0.08-0.16 0.015 0.008 0.12 - - -
ERTi 4 R50130 0.03 0.08-0.32 0.025 0.008 0.25 - - -
ERTi 5 R56400 0.05 0.12-0.20 0.03 0.015 0.22 5.5-6.7 3.5-4.5 -
ERTi 7 R52401 0.03 0.08-0.16 0.015 0.008 0.12 - - 0.12-0.25




Straight Pure Titanium Wire With Pickling Surface 0

Tags:

thin titanium wire

titanium alloy wire

pure titanium wire
