Brand Name: | LHTI |
Model Number: | LH-12 |
MOQ: | 10 kg |
Payment Terms: | L/C, D/P, T/T, Western Union,paypal etc |
Supply Ability: | 50000 kgs per month |

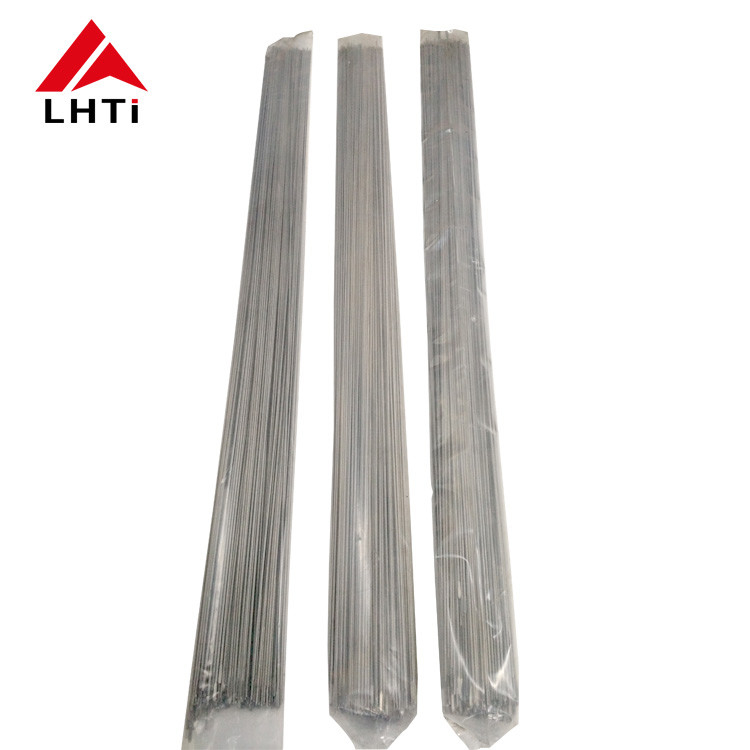

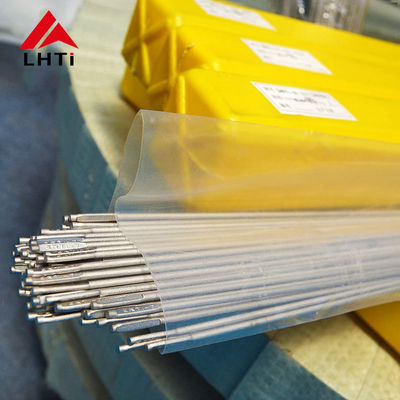

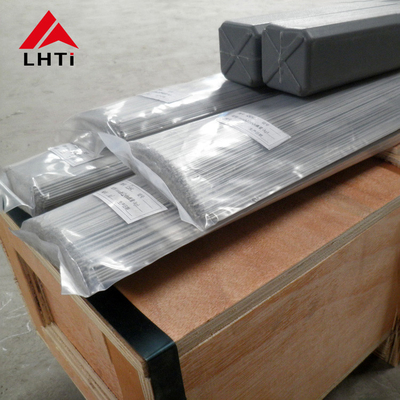

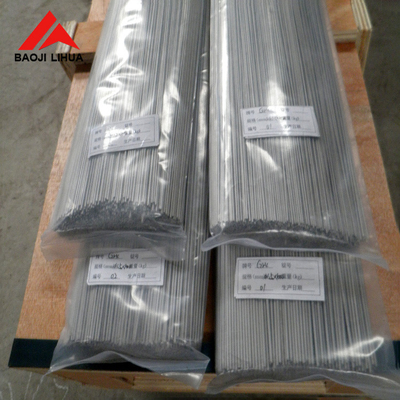

Titanium Welding Wire On Spool Titanium
Brands: ERTI-1, ERTI-2, ERTi-3, ERTI-4, ERTi-5
Implementation standards: AWS A5.16, GB/T3623, ASTM B865
Specifications:¢1.0, 1.2, 1.6mm (Titanium Welding Wire On Spool)
Surface treatment: bright surface
Surface quality: high precision, good finish, no oxidation color, no cracks, peeling, pricking, speckles and inclusions. Minor local
scratches, scrapes, spots, pits, etc., not exceeding the allowable deviation of the wire diameter are allowed.
ASTM Base Metal Grade | Base metal | Normal composition | Recommended Filler Metal | |
UTS(min.) ksi[Mpa] | YS(min.) ksi[Mpa] | |||
Grade 1 | 35[240] | 20[138] | Unalloyed Ti CP1 | ERTi-1 |
Grade 2 | 50[345] | 40[275] | Unalloyed Ti CP2 | ERTi-2 |
Grade 4 | 80[550] | 70[483] | Unalloyed Ti CP4 | ERTi-4 |
Grade 5 | 130[895] | 120[828] | Ti 6AL-4V | ERTi-5 |
Grade 7 | 50[345] | 40[275] | Ti 0.15Pd | ERTi-7 |
AWS | CHEMICAL SPECIFICATIONS | ||||||||
AWS A5.16 | UNS | C | O | N | H | I | Al | V | Pd |
Number | |||||||||
ERTi 1 | R50100 | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 | - | - | - |
ERTi 2 | R50120 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | - |
ERTi 4 | R50130 | 0.03 | 0.08-0.32 | 0.025 | 0.008 | 0.25 | - | - | - |
ERTi 5 | R56400 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 | 5.5-6.7 | 3.5-4.5 | - |
ERTi 7 | R52401 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | 0.12-0.25 |
