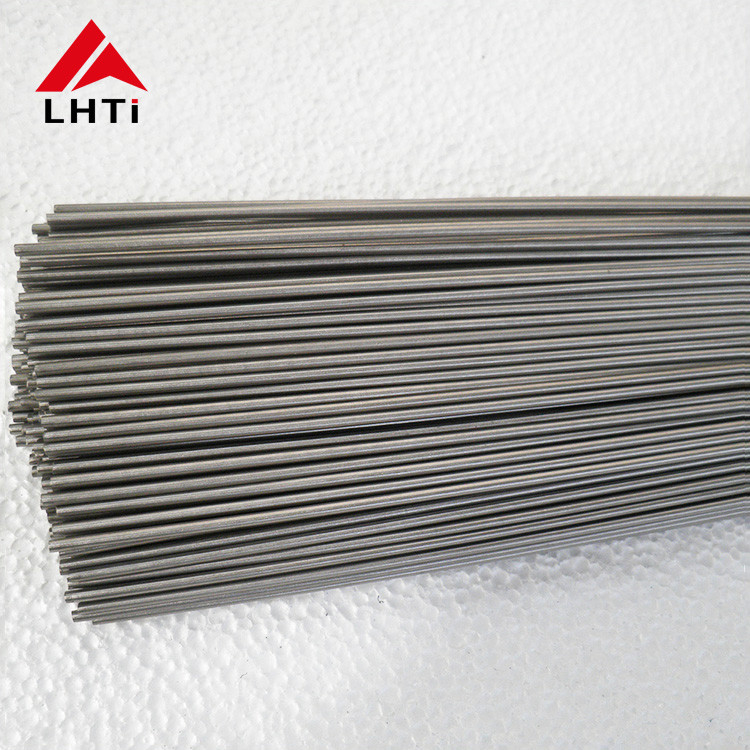

Erti-4 Titanium Welding Wire Pure Titanium Wire

Erti-4 Titanium Welding Wire Pure Titanium Wire

Erti-4 Titanium Welding Wire Pure Titanium Wire

Brand Name:	LHTI
Model Number:	LH-12
MOQ:	10 kg
Payment Terms:	L/C, D/P, T/T, Western Union,paypal etc
Supply Ability:	50000 kgs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Product Name:

ERTi 1 ERTi 2 Gr.1 Gr.2 Straight / Coil Ti Pure Titanium Wire Price

Grade:

Grade1 Grade2 ErTi1 ErTi2

Shape:

Coil,spool,straight

Material:

Pure Titanium

Surface:

Pickling Surface/polish Surface

Package:

Standard Export Package

Hot Sale Diameter:

0.8mm-5mm Etc

Length:

1000mm

Key Words:

Thin Titanium Wire

Packaging Details:

Coil and spool package in carton case or plywood case,straight wire package in Plastic case,outside is standard export plywood case

Supply Ability:

50000 kgs per month

Product Description

Erti-4 Titanium Welding Wire Pure Titanium Wire

Standard:GB,ASTM, BS, BSW, ISO ASTM B863 ASTM B348 ASTM F67 ASTM F136
Material:GR1 GR2 GR3 GR4 GR5 GR7 GR9 GR12
Shape:Straight , spool ,coil
Size:Dia(0.06--6) *L
Surface :pickling, polished, bright finish, etc.
Application:Chemical equipment, such as pipes, heat exchangers, evaporators, heaters, reaction kettles etc

ASTM Base Metal Grade	Base metal		Normal composition	Recommended Filler Metal
	UTS(min.) ksi[Mpa]	YS(min.) ksi[Mpa]
Grade 1	35[240]	20[138]	Unalloyed Ti CP1	ERTi-1
Grade 2	50[345]	40[275]	Unalloyed Ti CP2	ERTi-2
Grade 4	80[550]	70[483]	Unalloyed Ti CP4	ERTi-4
Grade 5	130[895]	120[828]	Ti 6AL-4V	ERTi-5
Grade 7	50[345]	40[275]	Ti 0.15Pd	ERTi-7

AWS	CHEMICAL SPECIFICATIONS
AWS A5.16	UNS	C	O	N	H	I	Al	V	Pd
	Number
ERTi 1	R50100	0.03	0.03-0.10	0.012	0.005	0.08	-	-	-
ERTi 2	R50120	0.03	0.08-0.16	0.015	0.008	0.12	-	-	-
ERTi 4	R50130	0.03	0.08-0.32	0.025	0.008	0.25	-	-	-
ERTi 5	R56400	0.05	0.12-0.20	0.03	0.015	0.22	5.5-6.7	3.5-4.5	-
ERTi 7	R52401	0.03	0.08-0.16	0.015	0.008	0.12	-	-	0.12-0.25

Erti-4 Titanium Welding Wire Pure Titanium Wire 0

thin titanium wire

titanium alloy wire

pure titanium wire
