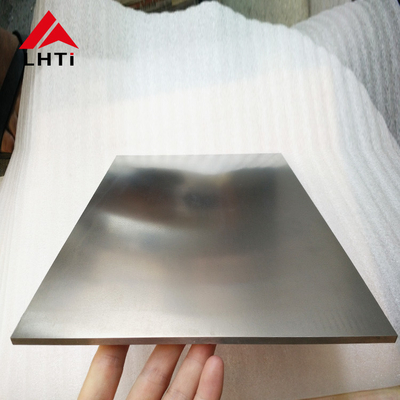

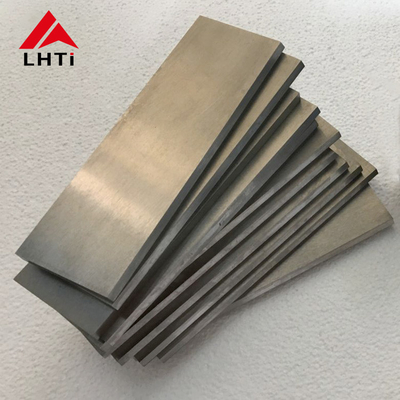

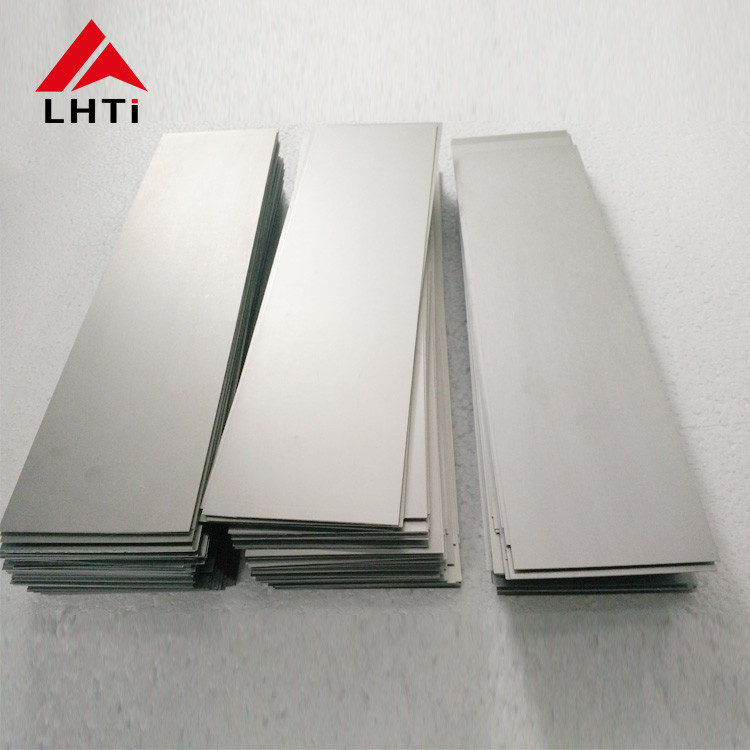

ASTM B265 Titanium Sheet Square Shape Acid Washing

Name: ASTM B265 Titanium Sheet Square Shape Acid Washing
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-plate
Price: 23.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	LH-plate
MOQ:	50 kg
Price:	USD12.00-35.00 per kg
Payment Terms:	L/C, D/P, T/T, Western Union，paypal
Supply Ability:	200000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Standard::

ASTM B265

Technology::

Cold Rolled

Shape::

Square

Surface::

Polished, Acid Washing

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

200000 kg per month

Product Description

ASTM B265 Gr9 Gr12 Thin Titanium Sheet Square Shape Acid Washing

Gr9 Gr12 Thin Titanium Sheet Acid Washing

Appearance: Silver grey white metal
Melting point: 194k (1668°C, 3034°F)
Boiling point: 3560 K (3287°C, 5949°F)
Density (near room temperature) : 4.506 g/cm3
Liquid time (melting point) : 4.11 g/cm3
Heat of fusion: 14.15 kJ/mol
Heat of vaporization: 425 kJ/mol
Molar heat capacity: 25.060 J/(mol·K)

Gr12 Ti-0.3Mo-0.8Ni titanium molybdenum nickel alloy plate is a kind of corrosion resistance titanium alloy, is in order to improve the pure titanium gap corrosion performance of the alloy, the alloy contains 0.3%Mo and 0.8%Ni, not only strengthen the alloy, but also for high temperature, low PH fireworks without or weak reducing acid has good gap corrosion resistance, Its corrosion resistance is significantly better than pure titanium plate. It also has good process plasticity and welding performance and has been widely used in chemical industry.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
