Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet

Name: Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Sheet
Price: 3,755.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Sheet
MOQ:	50 kg
Payment Terms:	T/T, MoneyGram, L/C, Western Union
Supply Ability:	200000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Standard:

ASTM B265

Technology:

Cold Rolled

Shape:

Square

Surface:

Polished, Acid Washing

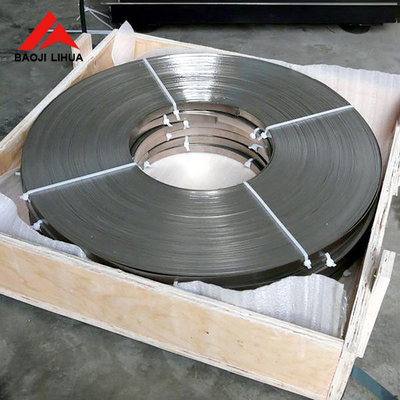

Packaging Details:

Plywood box with soft foam for additional protection

Supply Ability:

200000 kg per month

Product Description

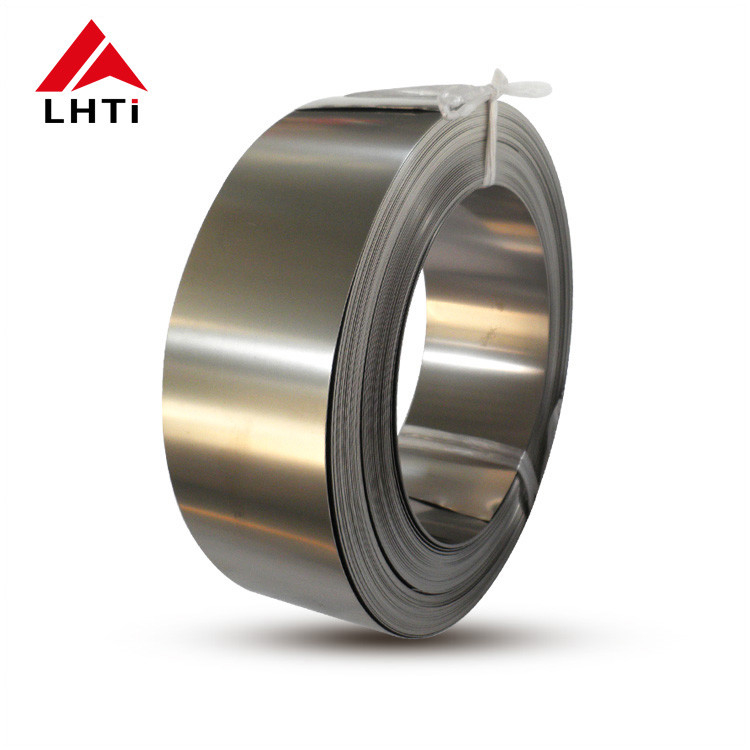

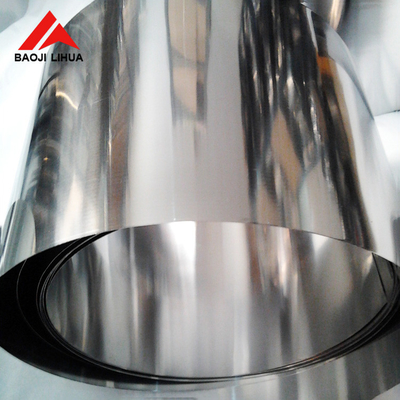

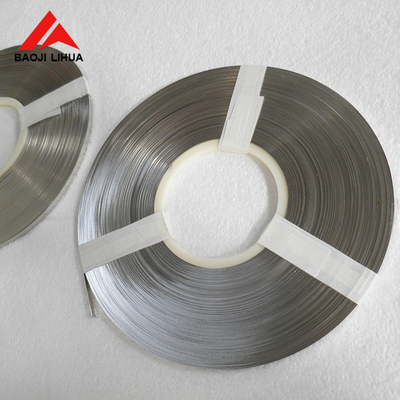

Grade 2 Titanium Foil Titanium Alloy Sheet Titanium Sheet

The Titanium Foil Grade 2 plays an important role in marine, gas turbine engines , heat exchangerss, condensers, desalination plant, dental alloys, pulp and paper, centrifuges, and so on. The speaker diaphragm made of our product makes it variable small. And it can be an ideal material for seawater piping ,medical implants ,electrochemistry, steam turbines ,food and pharmaceutical industry, oil refining and gas industry, jewellery, architecture, domestic appliances and so on.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
