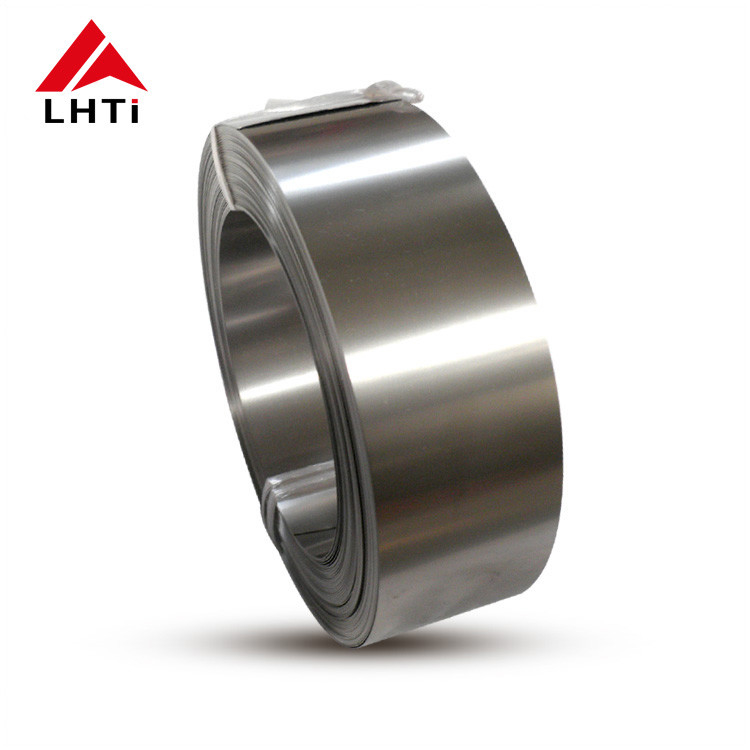

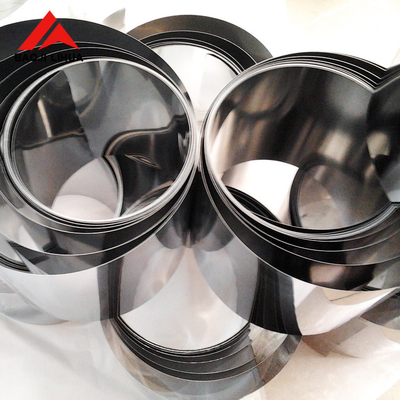

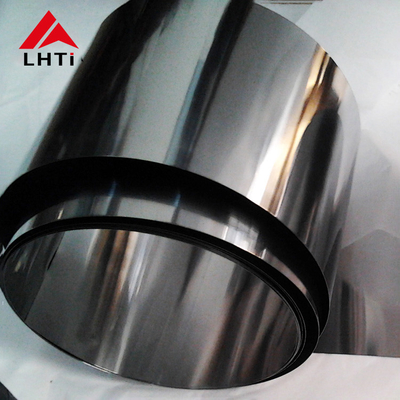

Name: Aerospace Titanium Alloy Gr2 foil Sheet Titanium Sheet
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Sheet
Price: 3,755.00 USD
Availability: InStock

Aerospace Titanium Alloy Gr2 foil Sheet Titanium Sheet

Brand Name:	LHTi
Model Number:	Titanium Sheet
MOQ:	50 kg
Payment Terms:	T/T, MoneyGram, L/C, Western Union
Supply Ability:	200000 kg per month

Application:Industrial
Thickness:0.03-2mm, 0.03-2mm
Width:50-300 mm, 50-300mm
Length:Customized
Grade:titanium foil grade 2
Ti (Min):99.6%
Standard:ASTMB265 ASTMF67 ASTM
Certificate:ISO9001:2015 TUV material

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
