Name: Titanium Foil Titanium Alloy Sheet Titanium Sheet
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Sheet
Price: 3,755.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001:2015; TUV; SGS;BV

Model Number: Titanium Sheet

Payment & Shipping Terms

Minimum Order Quantity: 50 kg

Packaging Details: Plywood box with soft foam for additional protection

Delivery Time: 10-28 work days

Payment Terms: T/T, MoneyGram, L/C, Western Union

Supply Ability: 200000 kg per month

Get Best Price

Product Details

Product Description

Highlight:

Standard:	ASTM B265	Technology:	Cold Rolled
Shape:	Square	Surface:	Polished, Acid Washing

Standard:	ASTM B265
Technology:	Cold Rolled
Shape:	Square
Surface:	Polished, Acid Washing

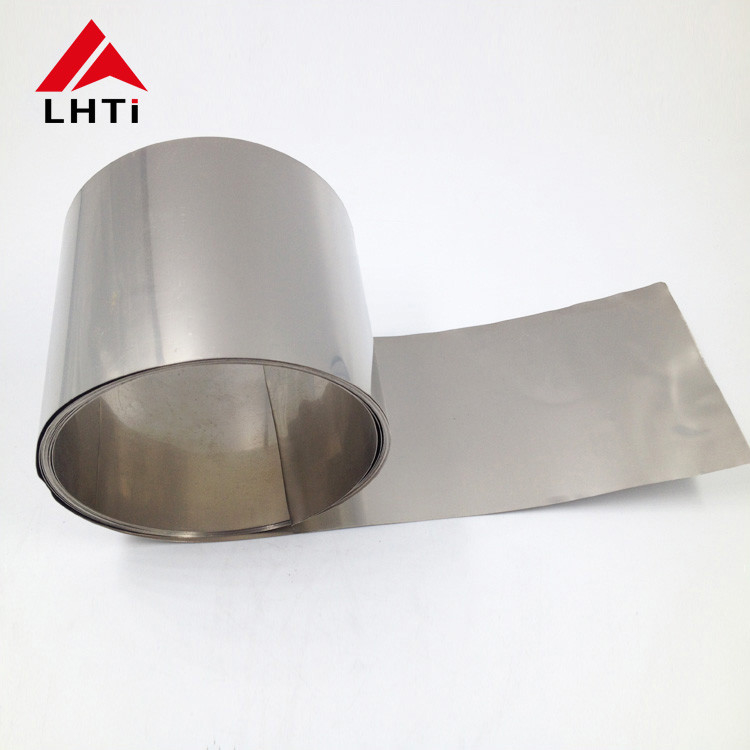

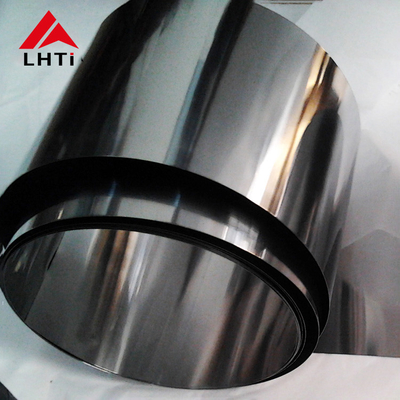

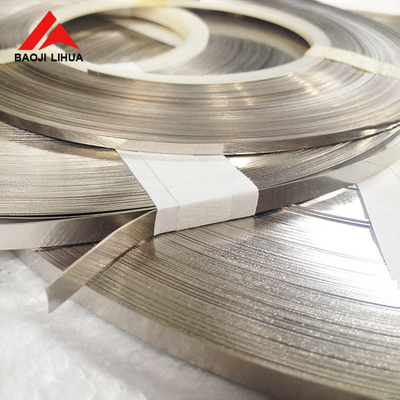

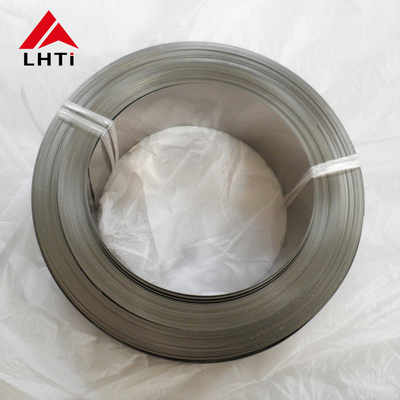

Titanium Foil Titanium Alloy Sheet Titanium Sheet

Standard	ASTM B265
Material	Gr2
Product Status	Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status
Technology	hot forging ~ hot rolled ~ machining
Application	Marine,Airframes,Gas Turbine Engines , Heat exchangers ,Condensers,Desalination plant,Dental alloys,Pulp and paper, Centrifuges, Springs ,Sporting equipment,Automotive ,Seawater piping ,Medical implants ,Electrochemistry,Steam turbines ,Food and pharmaceutical industry, Oil refining and gas industry, Jewellery, architecture, domestic appliances
Advantage	heat resistant, insensible to temperature changes, pressure resistant and stable in salt, moisture and organic conditions.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
