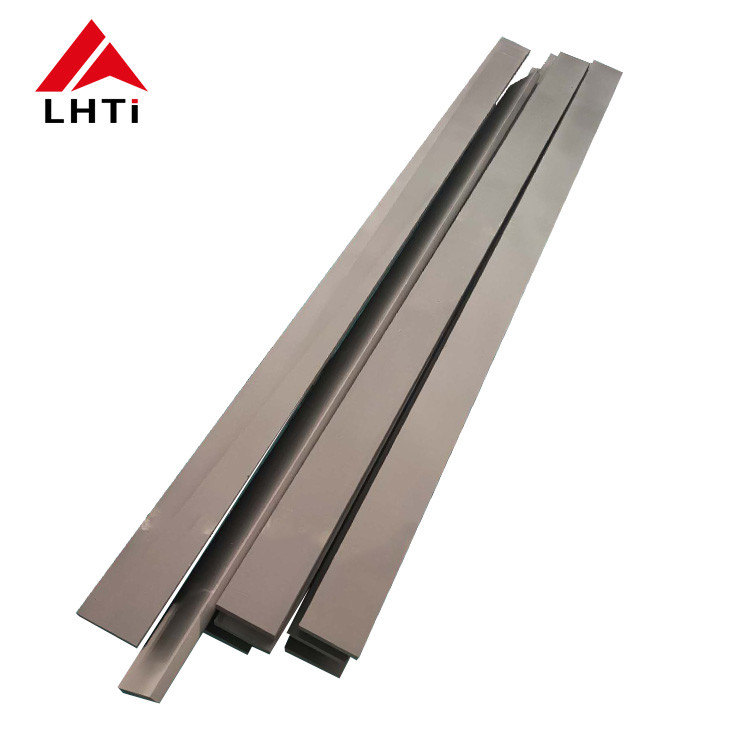

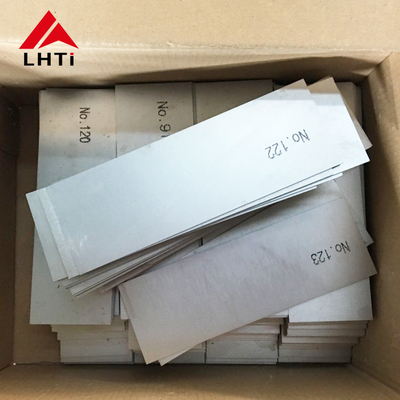

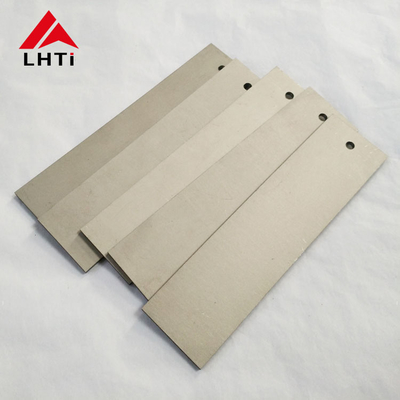

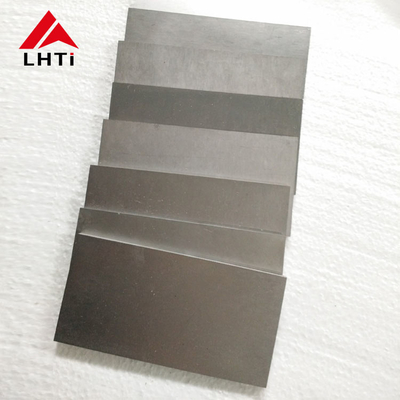

GR2 Titanium alloy plate titanium sheet

Name: GR2 Titanium alloy plate titanium sheet
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Sheet
Price: 3,755.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Sheet
MOQ:	50 kg
Payment Terms:	T/T, MoneyGram, L/C, Western Union
Supply Ability:	200000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Standard:

ASTM B265

Technology:

Cold Rolled

Shape:

Square

Surface:

Polished, Acid Washing

Packaging Details:

Plywood box with soft foam for additional protection

Supply Ability:

200000 kg per month

Product Description

GR2 Titanium alloy plate titanium sheet

Application:Medical,Industry
Thickness:≥0.5mm
Width:1000mm(min)
Length:6000mm(normal szie)
Technique: Cold Rolled, hot rolled
Grade: GR2 Ti (Min):99.5%
Surface:Polished/Pickling
Type:heat exchanger/equipment
Certification:ISO,EN10204 3.1,EN10204 3.2
Standard:ASME SB265 ASTM B265
Shape:Flat

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
