Titanium Flange
Created with Pixso.

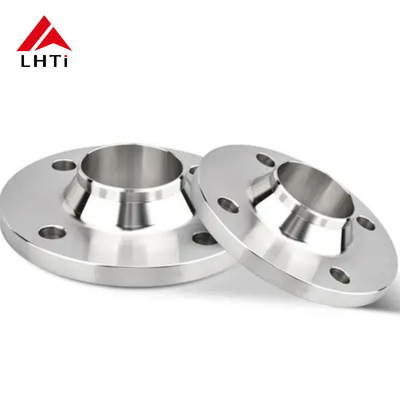

Grade 2 Titanium Weld Neck Flange with 3.5 Inch Bolt Circle Diameter and 0.56 Inch Thickness for Water Supply Systems

Grade 2 Titanium Weld Neck Flange with 3.5 Inch Bolt Circle Diameter and 0.56 Inch Thickness for Water Supply Systems

Grade 2 Titanium Weld Neck Flange with 3.5 Inch Bolt Circle Diameter and 0.56 Inch Thickness for Water Supply Systems

Brand Name: LHTi
Model Number: Slip On Flange
MOQ: 200 pieces
Price: negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 500 Ton/Tons Per Month
Detail Information
Product Description
Detail Information
Place of Origin:
Baoji, China
Certification:
ISO9001,CE,etc
Face:
Ring Type Joint
Bolt Circle Diameter:
3.5 Inch
Manufacturer:
ABC Corporation
Connection Type:
Raised Face
Payment Term:
T/T, L/C, Etc.
Thickness:
0.56 Inch
Quality Control:
Professional Inspection
Test:
UT
Packaging Details:
Plywood case or pallet, or as per your requirement
Supply Ability:
500 Ton/Tons Per Month
Highlight:

Titanium Raised Face Weld Neck Flanges

,

Grade 1 Weld Neck Flanges

,

Class 300 Weld Neck Flanges

Product Description
Grade 2 Titanium Raised Face Weld Neck Flanges

Grade 2 Titanium Raised Face Weld Neck Flanges (WNRF) for Water Supply Systems

1. Basic Dimensions of Class 300 Raised Face Weld Neck Flanges (WNRF)

The following table outlines the standard dimensions for Class 300 Raised Face Weld Neck Flanges (WNRF) across various nominal pipe sizes (NPS), based on ASME B16.5 standards.

Nominal Pipe Size (NPS) Bolt Circle Diameter (BC) Number of Bolts Flange Thickness (T) Face Width (F) Bore (ID)
1/2" 2.62" 4 0.88" 0.50" 0.84"
1" 3.25" 4 1.00" 0.56" 1.05"
2" 4.50" 8 1.12" 0.75" 2.07"
4" 7.00" 8 1.56" 1.00" 4.09"
6" 9.00" 12 1.81" 1.25" 6.13"
12" 14.00" 16 2.44" 1.50" 12.13"
24" 22.00" 20 3.13" 2.00" 24.13"
Grade 2 Titanium Weld Neck Flange with 3.5 Inch Bolt Circle Diameter and 0.56 Inch Thickness for Water Supply Systems 0
2. Titanium Grades: Material Properties of Grade 1 and Grade 2 Titanium

Comparison of material properties for Grade 1 and Grade 2 titanium alloys, commonly used in manufacturing Class 300 raised face weld neck flanges (WNRF).

Property Grade 1 Titanium Grade 2 Titanium
Composition 99.5% pure titanium Titanium with small amounts of iron and oxygen
Tensile Strength (ksi) 35-45 ksi 50-60 ksi
Yield Strength (ksi) 20-30 ksi 40-50 ksi
Elongation 24% 20%
Hardness (Brinell) 120 140
Density (g/cm³) 4.51 4.51
Corrosion Resistance Excellent, especially in fresh and marine waters Excellent, superior in chloride environments
Applications Less demanding, non-pressurized systems Higher pressure systems, industrial water supply
  • Grade 1 Titanium is more corrosion-resistant and less prone to fatigue but is less strong compared to Grade 2 Titanium. It is ideal for less critical applications.
  • Grade 2 Titanium is stronger, making it suitable for higher pressure and more aggressive environments, often chosen for industrial water supply and municipal systems.
3. Bolt Size and Torque Specifications for Class 300 Titanium Flanges

Proper bolt selection and torque application are essential to ensure a secure, leak-free connection between flanges.

Nominal Pipe Size (NPS) Bolt Size (inches) Number of Bolts Torque (ft-lbs)
1/2" 5/8" 4 40-50
1" 3/4" 4 50-70
2" 7/8" 8 70-90
4" 1-1/8" 8 100-120
6" 1-1/4" 12 130-160
12" 1-1/2" 16 200-250
24" 1-3/4" 20 350-400
  • Note: Torque values should be adjusted depending on the gasket material used, as titanium has low friction, requiring specific torque values to ensure effective sealing.
