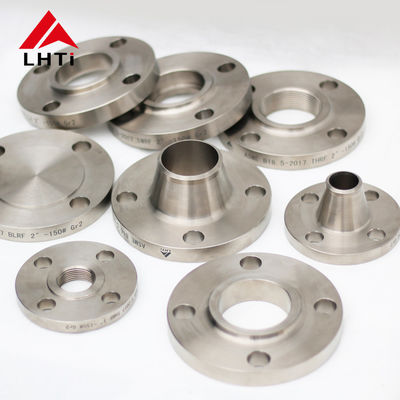

ASME B16.5 Titanium Flange with Bright Surface and Lightweight Weld Neck Raised Face Flange

Name: ASME B16.5 Titanium Flange with Bright Surface and Lightweight Weld Neck Raised Face Flange
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: titanium flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTI
Model Number:	titanium flange
MOQ:	100KG
Payment Terms:	L/C,D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2008

Standard Or Nonstandard:

Standard

Surface:

Bright

Type:

WN THREAD BL SW LJ

Process:

Casting, Forging, Machining, Etc.

Weight:

Lightweight Compared To Steel Flanges

Material Grade:

Gr2/Gr7/Gr12

Bolt Circle Diameter:

3.75 Inches

Grade:

Grade 2, Grade 5 (Ti-6Al-4V)

Packaging Details:

Wooden cases

Highlight:

LWN Titanium Flange

F2 Titanium Flange

Bright Titanium RF Flange

Product Description

ASME B16.5 2"-150# LWN RF SB381 F2 Titanium Flange Bright Surface

Product Overview

High-quality ASME B16.5 compliant titanium flange featuring a long welding neck, raised face design with bright surface finish. Manufactured to SB381 F2 specifications for superior performance in demanding industrial applications.

Technical Specifications

Standard	ASME B16.9, ASME B16.5, JIS, EN
Material	Gr1, Gr2, Gr7, N200/201, N6, Inconel600, Monel400, Hastelloy-C276
Size	NPS1/4-24" (DN10~600)
Pressure Rating	Class150~1200LBS PN1.0~4.0MPa
Working Temperature	-60°C to 250°C
Surface Treatment	Forging, rolling, smooth by lathe, polishing
Testing	UT, P/T, etc.

Available Flange Types

Slip-On Flange
Socket Welding Flange
Lap Joint Flange
Pad Type Flange
Welding Neck Flange

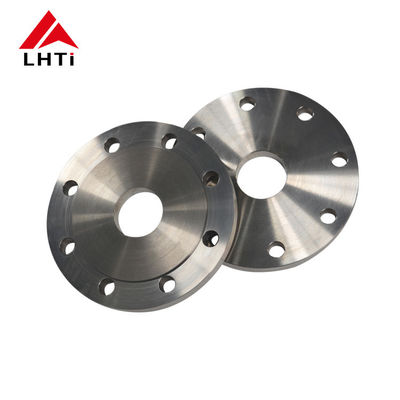

Blind Flange
Orifice Flange
Welded Flange
Reducing Flange

Quality Assurance & Services

Inspection

Internal Control, Third-party verification (SGS, etc.)

Payment Terms

T/T, Paypal, Western Union, MoneyGram, L/C at sight, etc.

Packaging & Shipping

Packaging

Plastic and paper interior protection
Fixed between wooden pallets
IPPC standard wooden cases
Special packaging available upon request

Shipping Methods

International Express: DHL, TNT, EMS, UPS
Air freight and sea freight options
