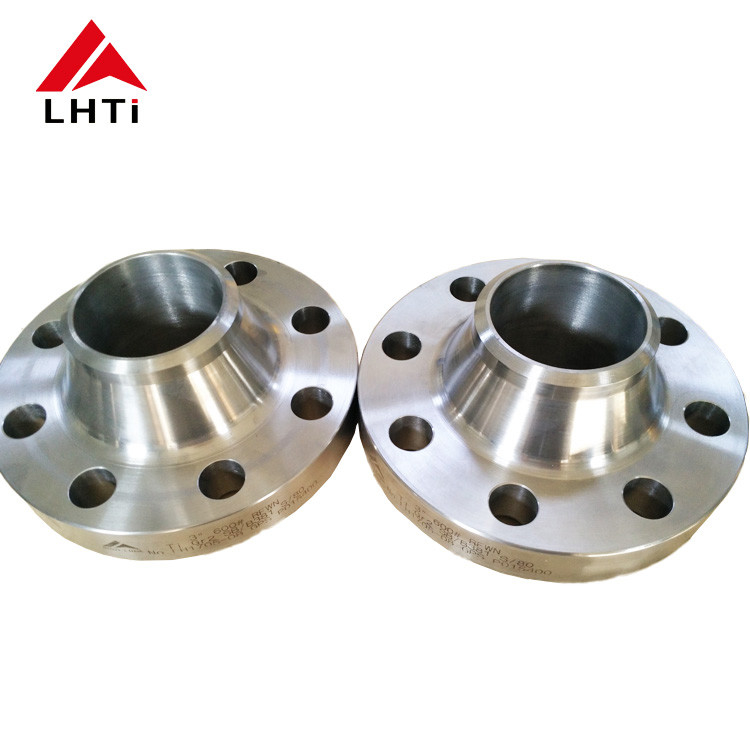

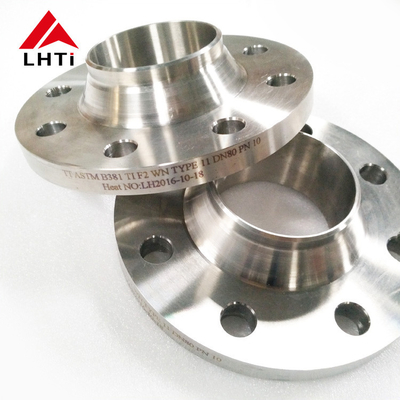

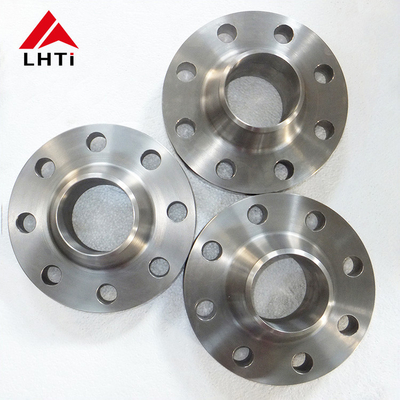

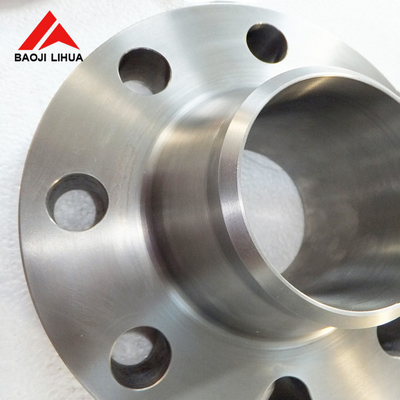

GR2 GR5 Polished Titanium SO Weld Neck Flange For Medical Equipment

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

WN , SO , BL ,SW, PL, Lap Joint, Customized.

Standard:

ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5

Material:

Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/

Surface:

Polished

Technique:

Forged And CNC Machined.

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

CNC Machined SO Weld Neck Flange

Titanium SO Weld Neck Flange

GR5 Polished Titanium SO Flange

Product Description

GR2 GR5 Polished Titanium SO Weld Neck Flange For Medical Equipment

Dimensional tolerances conform to ASME B16.5. Flange bore diameters agree with standard ASME B36.9M Sch-40S wall pipe. Other bore diameters can be supplied on special order.

Flat Face Titanium Flanges are supplied with a serrated spiral finish per ASME B16.5. Other gasket surface finishes can be supplied on special order. Titanium flanges are permanently marked by electro-chemical etching in accordance with ASME B16.5.

Estimated Titanium flange weights are based on a density of 0.163 lbs/cubic inch.

Chemical Requirements

N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile Requirements

Grade	Tensile Strength (min)	Yield Strength (min)	Elongation (%)
1	35 KSI / 240 MPa	20 Ksi / 138 MPa	24
2	50 KSI / 345 MPa	40 Ksi / 275 MPa	20
5	130 KSI / 895 MPa	120 Ksi / 828 MPa	10
7	50 KSI / 345 MPa	40 Ksi / 275 MPa	20
12	70 KSI / 438 MPa	50 Ksi / 345 MPa	18

Titanium Flanges Specifications

Material Grade: Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Standard: ANSI B16.5, JIS B2220, DIN2627-2628, ASME, GB/T 9116, ASTM B16.5
Technique: Forged and CNC Machined
Type: WN, SO, BL, SW, PL, Lap joint, customized
Application: Used in cars, glasses, medical equipment, electronics, petrochemical equipment, pump valve, pipeline, aerospace, ocean industry, etc.
Advantage: Long service life, corrosion-resistant, high yield strength and tensile strength
