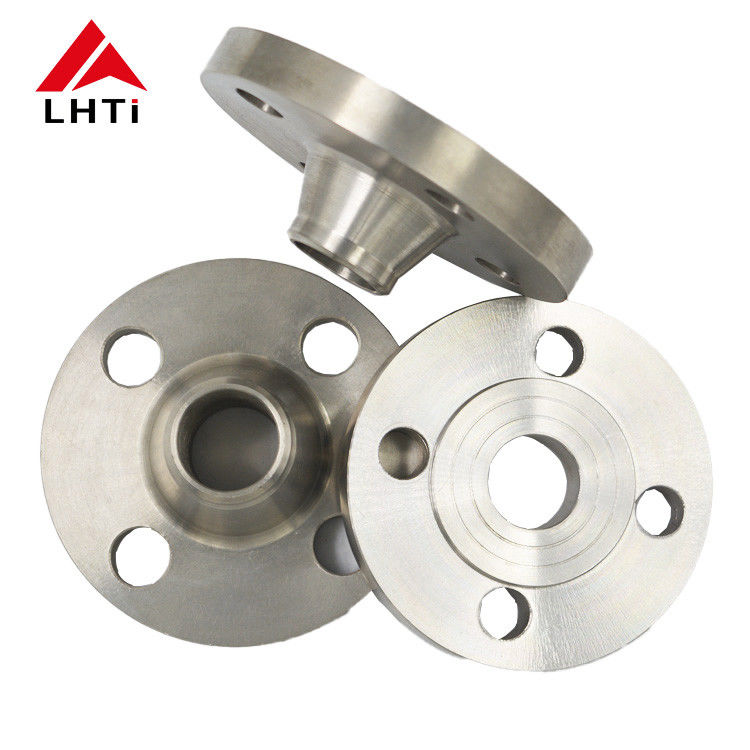

ASME B16.5 Titanium Flange Forged and CNC Machined

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

WN , SO , BL ,SW, PL, Lap Joint, Customized.

Standard:

ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5

Material:

Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/

Surface:

Polished

Technique:

Forged And CNC Machined.

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

Electronics Titanium Blind Flange

Forging LWN Titanium Flange

F2 Titanium Forged Flange

Product Description

ASME B16.5 Titanium Flange Forged and CNC Machined

ASME B16.5 2"-150# LWN RF SB381 F2 titanium flange designed for high-performance industrial applications requiring exceptional corrosion resistance and mechanical strength.

Quality Assurance & Services

Inspection: Internal Control, Third-party (SGS, etc.)

Payment Terms: T/T, PayPal, Western Union, MoneyGram, L/C at sight

Packaging Options

Plastic and paper interior, fixed between wooden pallets
IPPC standard wooden case
Special packaging upon request

Shipping Methods

International Express: DHL, TNT, EMS, UPS
By air and by sea

Technical Specifications

Standard	ASME B16.9, ASME B16.5, JIS, EN
Material	Gr1, Gr2, Gr7, N200/201, N6, Inconel600, Monel400, Hastelloy-C276
Size	NPS1/4-24" (DN10~600)
Pressure Rating	Class 150~1200LBS, PN1.0~4.0MPa
Working Temperature	-60°C to 250°C
Surface Treatment	Forging, rolling, smooth by lathe, polishing
Testing	UT, P/T, etc.

Chemical Composition Requirements

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile Strength Requirements

Grade	Tensile Strength (min)	Yield Strength (min)	Elongation (%)
1	35 KSI / 240 MPa	20 Ksi / 138 MPa	24
2	50 KSI / 345 MPa	40 Ksi / 275 MPa	20
5	130 KSI / 895 MPa	120 Ksi / 828 MPa	10
7	50 KSI / 345 MPa	40 Ksi / 275 MPa	20
12	70 KSI / 438 MPa	50 Ksi / 345 MPa	18

Titanium Flanges Overview

Material Grades: Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Standards: ANSI B16.5, JIS B2220, DIN2627-2628, ASME, GB/T 9116, ASTM B16.5

Manufacturing Technique: Forged and CNC Machined

Flange Types

WN, SO, BL, SW, PL, Lap joint, customized designs

Applications

Automotive, optical equipment, medical devices, electronics, petrochemical equipment, pump valves, pipelines, aerospace, marine industry

Key Advantages

Long service life
Exceptional corrosion resistance
High yield strength and tensile strength
