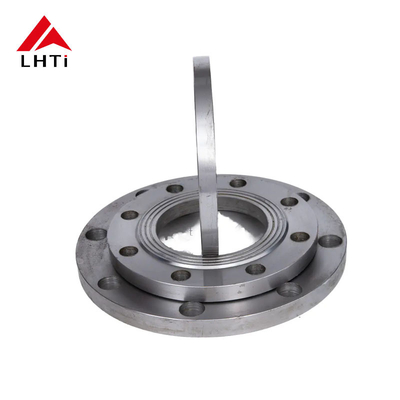

ASME B16.5 Ti Gr1 Gr2 Titanium Flanges Slip On Flange Raised Face SO Flange Slip On Flanges Class 150 SORF Raised Face for Water Supply Systems

Class 150 ASME B16.5 Titanium Slip-On Flanges Gr2 Gr5 Gr7 with Raised Face (SORF) for Pipelines

ASME B16.5 Titanium Slip-On Flanges with a Raised Face (SORF) are critical components used in pipelines, designed to provide secure connections with excellent corrosion resistance and mechanical strength. These flanges come in various grades of titanium alloys, including Gr2, Gr5, and Gr7, each offering unique properties to meet specific industrial needs.

1. Gr2 Titanium: Gr2 is commercially pure titanium with excellent corrosion resistance, making it ideal for applications in industries such as chemical processing, seawater treatment, and food processing. Gr2 offers good weldability and is commonly used in environments that require high corrosion resistance, particularly where strength is less of a concern.

2. Gr5 Titanium: Gr5 is a titanium alloy that combines titanium with aluminum and vanadium, offering superior strength compared to Gr2. It is widely used in high-stress environments such as aerospace, offshore oil platforms, and other demanding industries. Gr5 is ideal for applications where both strength and corrosion resistance are required.

3. Gr7 Titanium: Gr7 is an alloyed form of titanium with palladium, which enhances its corrosion resistance, especially in aggressive environments like seawater, chlorine, and strong acids. It is commonly used in applications that demand high performance under harsh chemical conditions, such as in the petrochemical and power generation industries.

Class 150 Titanium Slip-On Flanges:

Class 150 refers to the pressure rating of the flange, which can handle up to 150 psi of pressure. These flanges are designed for low- and medium-pressure systems, offering reliable sealing and connection strength. The Class 150 pressure rating makes them suitable for a wide range of applications in various industries.

The dimensions of the slip-on flanges depend on the size of the pipe they are intended to connect. Below are some general dimensions for Class 150 Slip-On Flanges.

Raised Face (SORF) Design:

The Raised Face (RF) design on the flange increases the sealing surface area, improving its ability to form a tight seal when paired with gaskets. This design is crucial for reducing the risk of leakage in high-pressure systems or where tight sealing is needed. The Raised Face improves the flange’s performance by enhancing the contact area for the gasket and providing a better seal, ensuring leak-proof connections in pipeline systems.

Applications:

These titanium slip-on flanges are widely used in industries where corrosion resistance, high strength, and reliable performance are crucial. Key applications include:

• Chemical processing
• Seawater and desalination systems
• Aerospace and offshore oil platforms
• Petrochemical industries
• Pharmaceutical and food processing plants

Advantages:

• Corrosion Resistance: Titanium’s exceptional resistance to corrosion makes these flanges ideal for use in harsh environments, such as exposure to seawater, chemicals, and high temperatures.
• Strength: Different grades (Gr2, Gr5, Gr7) allow for selection based on the required strength, from standard corrosion resistance (Gr2) to high-strength applications (Gr5) and extreme corrosion resistance (Gr7).
• Easy Installation: The slip-on design allows for easy installation, as the flange slides over the pipe and is welded at the inner and outer sides.
• Durability: Titanium’s durability in corrosive environments ensures a longer service life, reducing the need for frequent replacements and maintenance.
• Lightweight: Titanium is significantly lighter than steel, making these flanges beneficial in applications where weight is a concern, such as aerospace and offshore industries.

Conclusion:

The Gr2, Gr5, and Gr7 Class 150 ASME B16.5 Titanium Slip-On Flanges with Raised Face are essential components in pipeline systems, offering superior corrosion resistance, mechanical strength, and ease of installation. With their exceptional properties and reliable sealing, they are ideal for use in various demanding industries such as chemical processing, petrochemical, aerospace, and offshore platforms.
