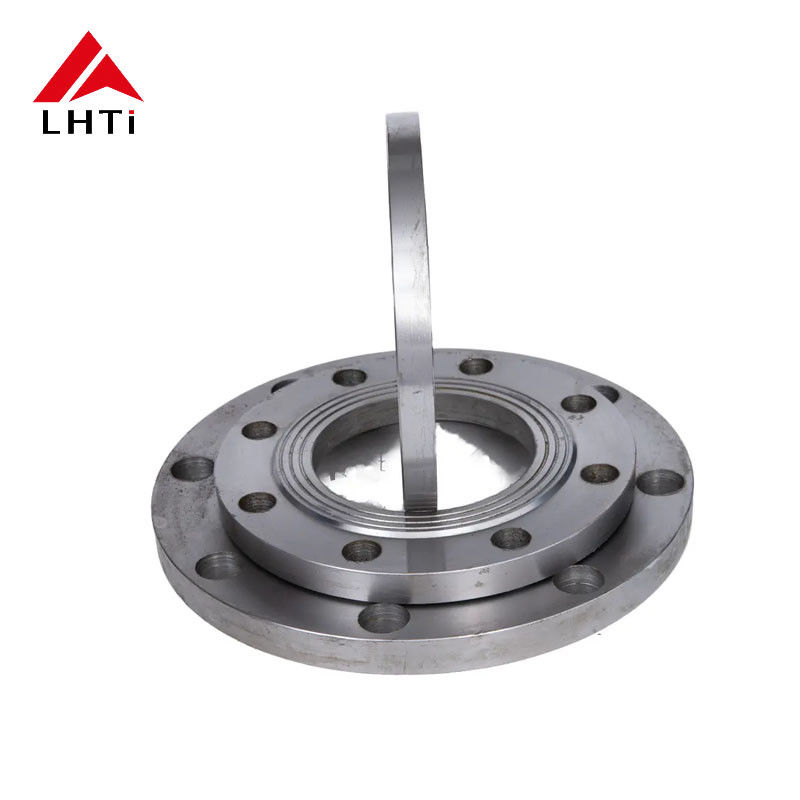

ASME B16.5 Class 150 Titanium Slip-On Flange with Raised Face for Water Supply

Name: ASME B16.5 Class 150 Titanium Slip-On Flange with Raised Face for Water Supply
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Slip On Flange
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Slip On Flange
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE,etc

Press:

Class 900/ CL900

Country Of Origin:

United States

Grade:

UNS32750 Gr2, Gr5, Gr9

Face:

Ring Type Joint

Sample:

Avaliable

Type:

Moulding Press

Pressure:

PN 10

Payment Term:

T/T, L/C, Etc.

Usage:

Chemical Flange

Pressure Rate:

PN 10

Sizes:

DN10-1000

Materials:

Titanium Metal Or Titanium Alloy

Product Standard:

ASME B16.5 Slip On Flange

Flange Facing Type:

Raised Face, Flat Face, Ring Type Joint

Certifications:

ASME, ASTM, ANSI, DIN, JIS, EN

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

500 Ton/Tons Per Month

Highlight:

ASME B16.5 Titanium Flanges

Water Supply Systems Titanium Flanges

Class 150 Titanium Flanges

Product Description

ASME B16.5 Gr1 Gr2 Ti SORF Flanges Class 150 RF for Water Supply

ASME B16.5 Titanium Slip-On Flanges with Raised Face (SORF) are critical pipeline components designed to provide secure connections with excellent corrosion resistance and mechanical strength. These flanges are available in various titanium alloy grades including Gr2, Gr5, and Gr7, each engineered to meet specific industrial requirements.

Titanium Grade Specifications

Gr2 Titanium

Gr2 is commercially pure titanium offering exceptional corrosion resistance, making it ideal for chemical processing, seawater treatment, and food processing applications. This grade provides excellent weldability and is commonly used in environments requiring high corrosion resistance where strength is secondary.

Gr5 Titanium

Gr5 titanium alloy combines titanium with aluminum and vanadium, delivering superior strength compared to Gr2. This grade is widely used in high-stress environments including aerospace, offshore oil platforms, and other demanding industries where both strength and corrosion resistance are essential.

Gr7 Titanium

Gr7 is an alloyed titanium with palladium that enhances corrosion resistance in aggressive environments such as seawater, chlorine, and strong acids. This grade is commonly specified for high-performance applications in petrochemical and power generation industries under harsh chemical conditions.

Titanium Grade Comparison

Feature	Gr2 Titanium	Gr5 Titanium	Gr7 Titanium
Composition	Pure titanium (about 99.2% titanium)	Titanium + Aluminum + Vanadium	Titanium + Palladium
Strength	Low (suitable for low-pressure applications)	High strength (suitable for high-strength requirements)	Excellent corrosion resistance, relatively high strength
Corrosion Resistance	Excellent (suitable for general corrosive environments)	Good (suitable for environments with moderate corrosive demands)	Excellent (suitable for highly corrosive environments like seawater, acidic environments)
Weldability	Excellent	Good	Good
Typical Applications	Chemical processing, seawater treatment, food processing	Aerospace, offshore oil and gas platforms, high-strength applications	Petrochemical, power generation, seawater, and corrosive environments
Weight	Light (suitable for lightweight applications)	Heavier (compared to Gr2)	Light (but not as light as Gr2)
Pressure Rating	Class 150	Class 150	Class 150
Seal Design	Raised Face (RF)	Raised Face (RF)	Raised Face (RF)
Installation Method	Slip-On (easy to install)	Slip-On (easy to install)	Slip-On (easy to install)

Class 150 Pressure Rating

Class 150 refers to the pressure rating capability of these flanges, designed to handle up to 150 psi pressure. These flanges are engineered for low- and medium-pressure systems, providing reliable sealing and connection strength suitable for various industrial applications.

Class 150 Slip-On Flange Dimensions

Size (inches)	Bolt Circle Diameter (inches)	Number of Bolts	Bolt Hole Diameter (inches)	Flange Thickness (inches)	Hub Depth (inches)
1/2"	2.88	4	0.75	0.875	0.875
3/4"	3.12	4	0.75	0.875	0.875
1"	3.50	4	0.75	1.00	1.00
1 1/2"	4.88	4	0.88	1.12	1.12
2"	5.25	4	0.88	1.25	1.25
3"	6.75	6	1.00	1.50	1.50
4"	7.88	8	1.13	1.75	1.75
6"	9.75	8	1.50	2.00	2.00
8"	11.75	8	1.75	2.25	2.25
10"	13.50	8	2.00	2.50	2.50

Gr2, Gr5, and Gr7 Class 150 ASME B16.5 Titanium Slip-On Flanges with Raised Face are essential pipeline components offering superior corrosion resistance, mechanical strength, and ease of installation. With their exceptional properties and reliable sealing performance, they are ideal for demanding applications in chemical processing, petrochemical, aerospace, and offshore platforms.
