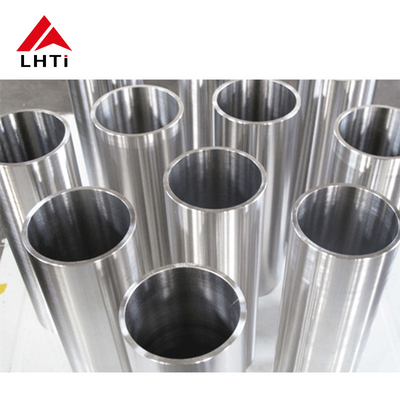

12.7mm Seamless Titanium Tube with 15mm and 24.5mm Hydraulic Test, Designed for Long Life Span

Name: 12.7mm Seamless Titanium Tube with 15mm and 24.5mm Hydraulic Test, Designed for Long Life Span
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-01
Price: 23.50 USD
Availability: InStock

Product Details

Place of Origin: BaoJi Shaanxi China

Brand Name: LHTI

Certification: ISO9001

Model Number: LH-01

Payment & Shipping Terms

Minimum Order Quantity: If in stock, sample is available; If not in stock,100kgs of each size

Price: USD $19.5-$28.5 / kg

Packaging Details: Standard exporting packaging, plywood case outside

Delivery Time: 7-25 working days

Payment Terms: Western Union, T/T, L/C, D/A, D/P

Supply Ability: 100 tons per month

Get Best Price

Product Details

Product Description

Highlight:

Dimention:	OD(5-114)X(0.3—10)XL1200mmMax	Processing Service:	Bending, Cutting
Coporation:	Trading And Manufacture	Titanium Coil Tube:	ASTM B861/B338
Applications:	Pressure Vessel Equipment And Boilers	Processing:	Seamless
Corrosion Resistance:	High	Corrosionresistance:	Excellent
Inside Diameter:	4~268mm	Application:	Aerospace, Chemical Industry, Medical, Etc.
Package:	Wooden Cases	Thickness:	0.5mm-10mm
Color:	Metallic	Colour:	Silver
Grade:	Gr1, Gr2, Gr5

Dimention:	OD(5-114)X(0.3—10)XL1200mmMax
Processing Service:	Bending, Cutting
Coporation:	Trading And Manufacture
Titanium Coil Tube:	ASTM B861/B338
Applications:	Pressure Vessel Equipment And Boilers
Processing:	Seamless
Corrosion Resistance:	High
Corrosionresistance:	Excellent
Inside Diameter:	4~268mm
Application:	Aerospace, Chemical Industry, Medical, Etc.
Package:	Wooden Cases
Thickness:	0.5mm-10mm
Color:	Metallic
Colour:	Silver
Grade:	Gr1, Gr2, Gr5

12.7mm Seamless Titanium Tube with 15mm and 24.5mm Hydraulic Test, Designed for Long Life Span

Product Description:

Our titanium tubes, manufactured to ASTM B338 standards, adhere to stringent quality requirements. We produce these tubes with strict compliance to ensure precise dimensions, accurate chemical composition, optimal physical properties, and high-quality surfaces. Our comprehensive quality inspections include hydraulic tests, flaw detection, ultrasonic testing, and flattening tests, all conducted in accordance with ASTM B338 standards. We also welcome third-party testing from organizations such as TUV, SGS, BV, or others, upon customer request.

12.7mm Seamless Titanium Tube with 15mm and 24.5mm Hydraulic Test, Designed for Long Life Span 0

Product information:

Name	Titanium pipe / tube
Material	Gr1,Gr2
Standard	ASTM B338
Type	Seamless/welded
OD	12.7mm 15mm 19.1mm 24.5mm 33.4mm 38.1mm 45mm 57mm, or as customer's request
Wall Thickness	0.5-1.5mm , or as customer's request
Length	Max 16000mm
Technique	Rolled
status	Annealed
Certificate	EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report---TUV,BV,SGS etc
Application	Heat Exchangers,Chemical industry

Chemical composition (Wt%)

ASTM No.	Fe max	O max	N max	C max	H max	Pd	Al	Bal
Grade 1	0.2	0.18	0.03	0.1	0.015	-	-	Ti
Grade 2	0.3	0.25	0.03	0.1	0.015	-	-	Ti

Physical Properties (Min)

ASTM Grade	Alloy Composition	Tensile Strength		Yield Strength		Elongation min %
ASTM Grade	Alloy Composition	ksi	Mpa	ksi	Mpa
Grade 1	Unalloyed Ti ("Pure") 35A -CP1	35	240	25	170	30
Grade 2	Unalloyed Ti ("Pure") 50A -CP2	58	400	40	275	25
