Gr2 Gr5 Titanium Tube 800 MPa Yield ASTM B338

Gr2 Gr5 Titanium Tube 800 MPa Yield ASTM B338

Brand Name: LHTi
Model Number: Titanium Tube
MOQ: 100 pieces
Price: negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 100-200 Ton/Tons Per Month
Detail Information
Place of Origin:
Baoji, Shaanxi, China
Certification:
ISO9001, CE, API,etc
Advantage:
Anti Corrosion
Payment:
T/T,L/C,ESCROW,PAYPAL
Sample:
Available
Meltingpoint:
1660℃
Key Words:
ASTM B338 Titanium Tube Heat Exchanger
Corrosionresistance:
Excellent
Factory Area:
3000 ㎡
Refrigerant:
R22,R134a,R407c,R410a R417a
Production Time:
15 Working Days
Cold Rolling:
As Customer Available
Smls Or Welded:
Seamless
Strength:
High
Type:
Welded
Standrad:
ASTM B861/B338
Original:
China
Packaging Details:
Carton, Plywood case, as per your requirement
Supply Ability:
100-200 Ton/Tons Per Month
Highlight:

Pure Titanium Tube with 800MPa Yield Strength

,

Lightweight GR5 Titanium Tube

,

Corrosion-Resistant GR2 Titanium Tube

Product Description

Gr2 Gr5 Titanium Tube 800 MPa Yield ASTM B338

A tube is ordered by outside diameter and wall, not by nominal bore, and those two numbers decide what the line can carry. This tube is cold rolled from titanium in Grade 2 or Grade 5 to ASTM B338, seamless, with the outside diameter running from 4 mm to 114 mm. The 800 MPa yield figure on the datasheet belongs to Grade 5; Grade 2 is a much softer metal chosen for chemistry rather than strength.

Grade 2 and Grade 5 Do Different Jobs

Grade 2 is commercially pure titanium with about 275 MPa yield and 345 MPa tensile, elongation around 24 percent. It bends, flares and welds easily and passivates in seawater, chlorides and oxidising acids, which is why most chemical and marine tube is Grade 2. Grade 5, the Ti-6Al-4V alloy, adds aluminium and vanadium to reach roughly 828 MPa yield and 895 MPa tensile at about 4.43 g/cm3. That is where the 800 MPa class comes from: a wall one third thinner can carry the same pressure, which matters on aircraft, high pressure hydraulics and compact heat transfer equipment.

The trade off is ductility and cost. Grade 5 is harder to bend to a tight radius and needs more care in welding, so it is specified where the pressure or the weight actually demands it rather than as a default upgrade.

Tube Data

Material Gr2 commercially pure titanium, Gr5 Ti-6Al-4V
Standard ASTM B338 for tube, ASTM B861 for seamless pipe
Type Seamless, cold rolled
Outside Diameter 4 mm to 114 mm
Wall Thickness 0.5 mm to 8 mm, to order
Length Straight lengths or coiled for small diameters
Condition Annealed, pickled or polished
Testing Hydrostatic, eddy current, flattening, tensile
Certificate EN 10204 3.1 with heat number traceability

How the Tube Is Made

Seamless tube starts as a drilled or extruded billet and is reduced on a cold pilger mill, which works the wall evenly and leaves a fine grain structure. Each pass is followed by cleaning and a controlled anneal, because cold work without an anneal leaves the metal too hard to bend. Straightness is set on a roller straightener, ends are squared, and the bore is blown and capped so the inside stays free of scale before shipment.

Titanium also has to be kept away from iron. Tooling, racks and even marking pens are kept separate, since a smear of steel on the surface becomes a corrosion site in service. Pickling after the final anneal removes the oxygen enriched layer and restores the passive film.

Where the Tube Is Used

Grade 2 tube is common in shell and tube heat exchangers, heating and cooling coils, seawater piping, chlor alkali plants and desalination trains. Grade 5 tube appears in higher pressure exchangers, aerospace hydraulic lines and medical instruments where the extra strength pays for itself. Both grades are non magnetic and have low thermal expansion, so they hold dimensions through thermal cycling.

Ordering and Packing

Quote by outside diameter, wall, grade, standard and test requirement, for example 25 mm x 2 mm Gr2 ASTM B338 annealed and pickled with eddy current test. Tubes are packed in wooden cases or cartons with end caps, and mill certificates travel with the shipment so the heat number can be traced back to the coil.

Product Images

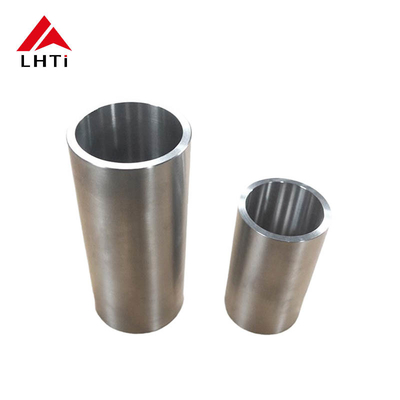

Gr2 Gr5 titanium tube ASTM B338 seamless 800 MPa yield strength

Gr2 Gr5 titanium tube ASTM B338 seamless 800 MPa yield strength
