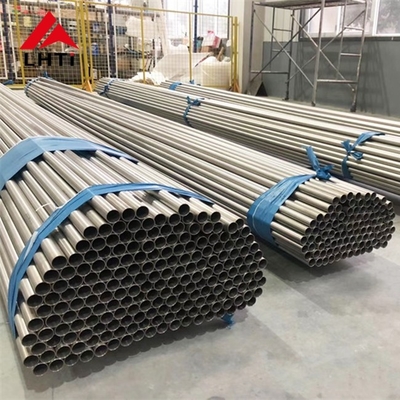

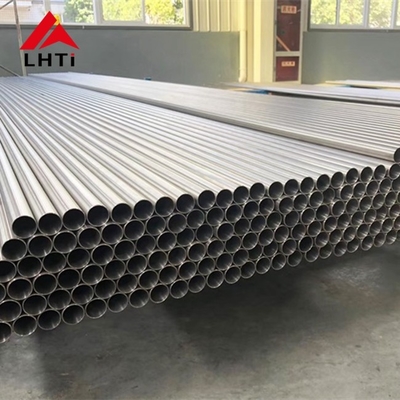

ASTM B338 Titanium Seamless Tube For Heat Exchanger Condenser 19mm

Product Details

Place of Origin: BaoJi Shaanxi China

Brand Name: LHTI

Certification: ISO9001

Model Number: LH-01

Payment & Shipping Terms

Minimum Order Quantity: If in stock, sample is available; If not in stock,200kgs of each size

Price: US dollar $23.5/kg--US dollar $35.9./kg

Packaging Details: Each tube with environmental protection bags,outside is standard plywood case

Delivery Time: 15-20 working days

Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc

Supply Ability: 5 tons per month

Get Best Price
Highlight:

Titanium Seamless Tube 19mm

,

Condenser Titanium Seamless Tube

,

ASTM B338 Titanium Round Tube

Standard:
ASTM B338
Grade:
Gr1 Gr2 Gr7 Gr12
OD:
12.7mm 15.2mm 17.8mm 19mm 25.4mm 38.1mm
Wall Thickness:
1.0mm/1.2mm Or As Customized
Material:
Pure Titanium
Purity:
99.5%min
Length:
Max 16 Meter
Surface:
Pickling Surface
Application:
Heat Exchanger
Production Time:
15 Working Days
Payment Term:
T/T,Paypal,Western Union Etc
Key Words:
Titanium Seamless Tube
Standard:
ASTM B338
Grade:
Gr1 Gr2 Gr7 Gr12
OD:
12.7mm 15.2mm 17.8mm 19mm 25.4mm 38.1mm
Wall Thickness:
1.0mm/1.2mm Or As Customized
Material:
Pure Titanium
Purity:
99.5%min
Length:
Max 16 Meter
Surface:
Pickling Surface
Application:
Heat Exchanger
Production Time:
15 Working Days
Payment Term:
T/T,Paypal,Western Union Etc
Key Words:
Titanium Seamless Tube
ASTM B338 Titanium Seamless Tube For Heat Exchanger Condenser 19mm



Gr2 Titanium Seamless Tube For Heat Exchanger

Gr1 Gr2 industrial pure titanium pipe mechanical properties and physical properties are similar to stainless steel pipe. It is good plasticity, easy processing molding,easy stamping, good welding performance. In the atmosphere and seawate ,titanium is with good corrosion resistance.The oxidation resistance is also stronger than stainless steel, but low heat resistance. It is mainly used for stamping parts and corrosion-resistant parts with little force but high plasticity, such as aircraft skeleton, ship pipelines, valves, heat exchangers, distillation towers, cold zone devices, compressor valves and so on. High plasticity parts is required to use Gr1 titanium, and the most widely used is Gr2 for other parts.Gr2 Titanium seamless fube for heat exchanger is based on the standard of ASTM B338,with strict quality and testing requirements. The titanium tubes manufactured by our factory can meet the standards and can be well used in the heat exchanger industry.



Detailed Information



Material: Gr1, Gr2

Standard: ASTM B338

Size: OD9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc., WT0.5-3.0mm , L Max 12000mm

Wall thickness tolerance: +/- 10%

Length tolerance: +3.2mm

Type: Welded/Seamless

Surface: Polishing, Pickling



Chemical composition (Wt%)

ASTM No. Fe max O max N max C max H max Pd Al Bal
Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti
Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti



Physical Properties (Min)

ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min %
ksi Mpa ksi Mpa
Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30
Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25



Product Images



titanium tube (8)titanium tube (45)

titanium tube (21)titanium tube (40)



Application in heat exchangers:



Titanium pipe heat exchanger

Raw Materials



titanium tube

titanium tube



Factory



titanium tube (2)



Production Process



Titanium strip coil—Slitting forming—Welding—Shaping and sizing—Heat treatment—Straightening—Eddy current and ultrasonic testing—Air tightness testing—Finished welded pipe

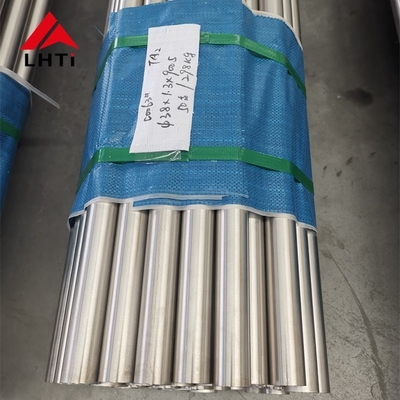

Our Stock

titanium tube (15)



Quality Inspection

titanium tube



All Tests

Visual Quality check

Dimension Check

Peneumatic test /Hydrostatic test

10% UT test

Chemical composition

Tensile test

Flaring test/ flattening test

Heat treatment



Test Report

titanium tube



Packaging

titanium tube (2)

titanium tube (24)
