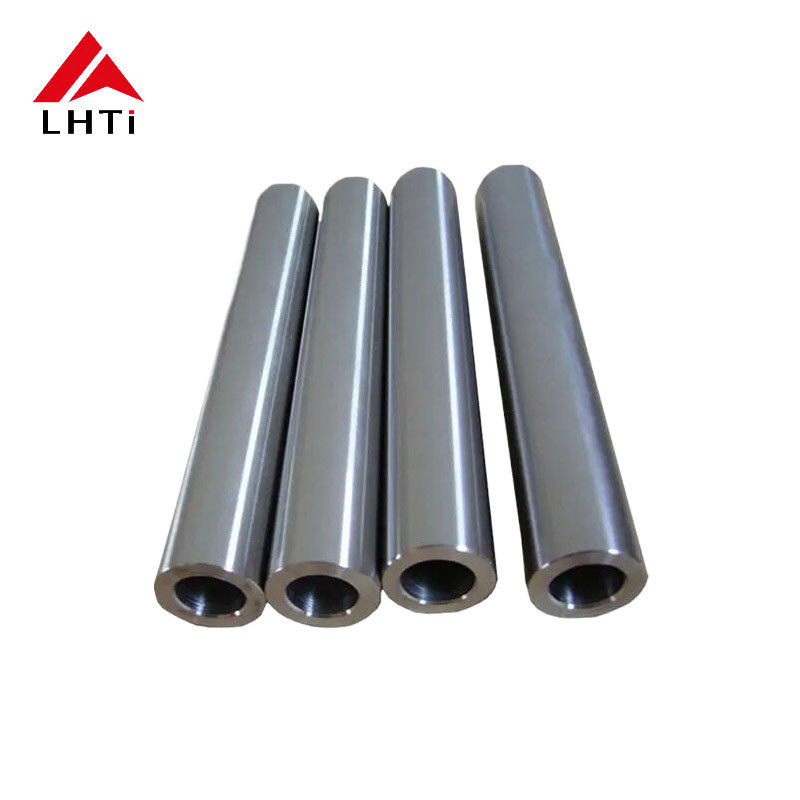

Gr1 Gr2 Titanium Welded Tubes for Chemical Industry

Name: Gr1 Gr2 Titanium Welded Tubes for Chemical Industry
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Tube
Price: 22,906.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Tube
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200-300 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE, API,etc

Sample:

Available

Package:

Wooden Cases

Thickness:

0.5mm-10mm

Model:

TP006

Type:

Seamless Or Type

Drawing:

Accept Customized

Connection:

Welding

Applications:

Pressure Vessel Equipment And Boilers

Specific Use:

Heating And Cooling

Processing Service:

Bending, Cutting

Packaging Details:

All goods are packed by seaworth shipment materials or required by buyer

Supply Ability:

200-300 Ton/Tons Per Month

Highlight:

Chemical Industry Titanium Welded Tube

Grade 2 Titanium Welded Tube

Grade 1 Titanium Welded Tube

Product Description

Gr1 Gr2 Titanium Welded Tubes for Chemical Industry

Grade 1 and Grade 2 titanium welded tubes designed specifically for demanding chemical industry applications, offering exceptional corrosion resistance and durability.

Introduction to Grade 1 Titanium

Grade 1 titanium is commercially pure titanium with a minimum purity of 99.5%, offering outstanding corrosion resistance, excellent weldability, and superior mechanical properties. It provides the highest ductility among all titanium grades, facilitating easier forming and fabrication processes.

Advantages in Heat Exchanger Applications

Grade 1 titanium pipes deliver a lightweight yet durable solution that ensures efficient heat transfer while resisting corrosive fluids in industrial processes. This corrosion resistance extends equipment lifespan and reduces maintenance requirements, contributing to lower operational costs.

Increasing Demand for Grade 1 Titanium

As industries prioritize sustainable and reliable solutions, demand for Grade 1 titanium in heat exchangers continues to grow. Its unique properties make it particularly suitable for aggressive environments in chemical processing and marine industries.

Manufacturing Processes

The production of Grade 1 titanium pipes involves sophisticated manufacturing processes starting with high-purity titanium ingots. Vacuum arc remelting (VAR) eliminates impurities, followed by hot or cold working to create tubular shapes. Extrusion forms the pipes, with subsequent heat treatment to optimize mechanical properties. Gas tungsten arc welding (GTAW) ensures strong, defect-free joints, supported by rigorous quality control including non-destructive testing.

Grade 2 Tubing Specifications

Specifications	ASTM B 337 ASME SB 337 / ASTM B 338 ASME SB 338
Dimensions	ASTM, ASME and API
Size	½"NB to 24"NB in Sch 10s, 40s, 80s, 160s, XXS
Specialized in	Large Diameter Size
Type	Seamless / ERW / Welded / Fabricated
Form	Round, Hydraulic Etc
Length	Single Random, Double Random & Cut Length
Grade	Titanium Grade 2, Titanium Grade 5
End	Plain End, Beveled End, Threaded

ASTM B338 Specifications

Item	Standard	Material	Size(mm)
Heat exchanger And Condenser tube	ASTM B338, ASTM B337, ASTM B861	Grade 1,2,3	OD(5-114)X(0.3-10)XL12000mmMax
Corrosion Resistant Tubes	ASTM B338	Grade 7, Grade 12	OD(5-114)X(0.5-4.5)Xlength 12000mmMax
Bike Frame/Wheelchair/Exhaust tube/Pipes	ASTM B338	Gr9/Ti3Al2v5	OD(38.1-44.5)X(0.9-3.15)X(L1000-2000MM)
Automobile & MotorCycle Exhaust Tube/Pipes	ASTM B337/338	Gr1, Gr2, Gr9	OD(38.1-88.9)X1.2X(L1000-2000mm)
Marine Industry	ASTM/AMS	Gr2, Gr5, Gr7, Gr12	OD(23.1-210)X(W0.5-6.0)X(L1000-6000mm)

Chemical Composition of ASME SB338 Titanium Grades

Grade	C	N	O	H	Ti	V	Al	Fe
Titanium Grade 1	.08 Max	.03 Max	.18 Max	.015 Max	Bal			.20 Max
Titanium Grade 2	0.1 max	0.03 max	0.25 max	0.015 max	99.2 min			0.3 max
Titanium Grade 4	.08 Max	.05 Max	.40 Max	.015 Max	Bal			.50 Max
Titanium Grade 5	0.10 max	0.05 max	0.20 max	0.015 max	90 min	3.5-4.5	5.5-6.75 max	0.40 max
Titanium Grade 7	.08 Max	.03 Max	.25 Max	.015 Max	Bal			.30 Max
Titanium Grade 9	.08 Max	.03 Max	.15 Max	.015 Max	-			.25 Max
Titanium Grade 12	.08 Max	.03 Max	.25 Max	0.15 Max	-			.30 Max

Future Trends in Titanium Seamless Pipe Technology

Ongoing research focuses on enhancing titanium alloy properties for extreme conditions. Innovations in manufacturing techniques, including additive manufacturing, enable complex geometries and tailored designs. Sustainability drives material selection, with titanium's recyclability contributing to environmental benefits. Digitalization and smart technologies integrate sensors and real-time monitoring systems into titanium pipe designs, enabling predictive maintenance and improved operational efficiency.

Titanium Tube Sizes

Wall Thickness	Titanium Tube Sizes (O.D.)
.010	1/16", 1/8", 3/16"
.020	1/16", 1/8", 3/16", 1/4", 5/16", 3/8"
.012	1/8"
.016	1/8", 3/16"
.028	1/8", 3/16", 1/4", 5/16", 3/8", 1/2", 3/4", 1", 1 1/2", 2"
.035	1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 16", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/2", 1 5/8", 2", 2 1/4"
.049	3/16", 1/4", 5/16", 3/8", 1/2", 16", 5/8", 3/4", 7/8", 1", 1 1/8", 1 1/4", 1 1/2", 1 5/8", 2", 2 1/4"
.065	1/4", 5/16", 3/8", 1/2", 16", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/2", 1 5/8", 1 3/4", 2", 2 1/2", 3"
.083	1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/2", 1 5/8", 1 7/8", 2", 2 1/2", 3"
.095	1/2", 5/8", 1", 1 1/4", 1 1/2", 2"
.109	1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
.120	1/2", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/2", 2", 2 1/4", 2 1/2", 3"
.125	3/4", 1", 1 1/4", 1 1/2", 2", 3", 3 1/4"
.134	1"
.250	3"
.375	3 1/2"

ASTM B338 Gr2, Gr5, Gr7, and Gr20 titanium seamless pipes provide unmatched durability, strength, and corrosion resistance for critical applications in chemical, aerospace, marine, and power generation industries.

Applications of Grade 1 Titanium Pipes

Grade 1 titanium pipes serve critical roles across multiple industries. In petrochemical applications, they handle corrosive substances in heat exchangers, resisting pitting, crevice corrosion, and stress corrosion cracking. Marine industry applications include cooling systems and heat exchangers for ships and submarines, where seawater exposure demands superior corrosion resistance. Aerospace applications leverage the lightweight, high-strength characteristics in aircraft engine heat exchangers, contributing to fuel efficiency and performance optimization.
