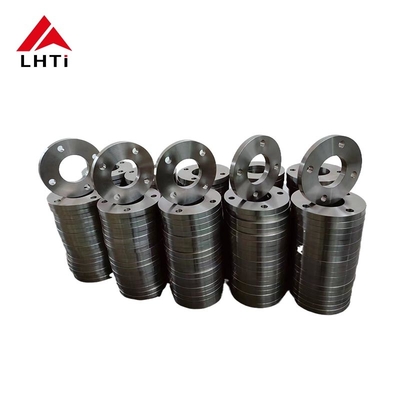

PN 40 Titanium Slip On Flange EN1092-01 with Gr1 Gr5 High Strength Corrosion Resistant for Chemical Processing

Name: PN 40 Titanium Slip On Flange EN1092-01 with Gr1 Gr5 High Strength Corrosion Resistant for Chemical Processing
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Plate
Price: 1,503.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Plate
MOQ:	5 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, Shaanxi, China

Certification:

ISO9001,CE,etc

Features:

High Strength, Corrosion Resistance, Etc.

Product Standard:

EN1092-01 Titanium Plate Flange

Size:

DN 10- DN 800

Pressure:

PN 40

Process:

Casting, Forging, Machining, Etc.

Surface Treatment:

Pickled,sand Blasting, Rolling Blast,galvinizing,vanished

Materials:

Gr1 Gr5 Gr7 Etc.

Technology:

Colding Forming ,hot Working And Welding

Sealing Surface:

RF, FF, TG, RJ Etc

Application:

Chemical Processing, Oil And Gas, Aerospace

Packaging Details:

Plywood case or pallet, or as per your requirement

Supply Ability:

5000 Pieces Per Month

Highlight:

Pipeline Titanium Slip On Flange

EN1092-01 Titanium Slip On Flange

PN 40 Titanium Slip On Flange

Product Description

PN 40 Titanium Slip On Flange EN1092-01 Gr1 Gr5 Gr7

Product Overview

Plate flanges are flat, circular components typically manufactured from materials like carbon steel, stainless steel, or titanium. Designed for closing piping systems, valves, or pressure vessel openings, they feature:

Flat surface design without raised protrusions, ideal for full-face gasket sealing
Variable thickness options to accommodate different pressure requirements
Standardized dimensions conforming to EN1092-01 specifications

Titanium flanges offer exceptional corrosion resistance, high strength-to-weight ratio, and lightweight properties. Their superior performance in harsh chemical environments makes them essential for petroleum, chemical processing, and other demanding industrial applications.

Available Grades

Our titanium plate flanges are available in three premium grades:

Grade 1 (Commercially Pure Titanium, CP Ti)

Most ductile and softest titanium alloy
Excellent corrosion resistance in oxidizing and mildly reducing environments
Ideal for chemical processing, marine, and aerospace applications

Grade 5 (Ti-6Al-4V)

High strength with low density
Excellent corrosion resistance and heat-treatable properties
Preferred for aerospace components, turbine blades, and offshore equipment

Grade 7 (Ti-0.2Pd)

Superior corrosion resistance in reducing environments
Excellent performance against chlorides and corrosive media
Commonly used in chemical processing, desalination, and marine applications

Technical Specifications

DN	Pipe OD (A)	Outside Diameter (D)	Bolt Circle Diameter (K)	Bolt Hole Diameter (L)	No. of Bolts	Bolt Size	Flange Thickness (C)	Raised Face Diameter (d)	Raised Face Height (f1)	Bore Diameter (B)
10	17.2/14	90	60	14	4	M12	14	40	2	18/15
15	21.3/18	95	65	14	4	M12	14	45	2	22/19
20	26.9/25	105	75	14	4	M12	16	58	2	27.5/26
25	33.7/32	115	85	14	4	M12	16	68	2	34.5/33
32	42.4/38	140	100	18	4	M16	18	78	2	43.5/39
40	48.3/45	150	110	18	4	M16	18	88	3	49.5/46
50	60.3/57	165	125	18	4	M16	20	102	3	61.5/59
65	76.1/79	185	145	18	8	M16	22	122	3	77.5/78
80	88.9/89	200	160	18	8	M16	24	138	3	90.5/91
100	114.3/108	235	190	22	8	M20	26	162	3	116/110
125	139.7/133	270	220	26	8	M24	28	188	3	141.5/135
150	168.3/159	300	250	26	8	M24	30	218	3	170.5/161
200	219.1/219	375	320	30	12	M27	36	285	3	221.5/222
250	273/273	450	385	33	12	M30	42	345	3	276.5/276
300	323.9/325	515	450	33	16	M30	52	410	4	327.5/328
350	355.6/377	580	510	36	16	M33	58	465	4	359.5/380
400	406.4/426	660	585	39	16	M36	65	535	4	411/430
450	457/480	685	610	39	20	M36	66	560	4	462/484
500	508/530	755	670	42	20	M39	72	615	4	513.5/534
600	610/630	890	795	48	20	M45	84	735	5	616.5/634

Face Type Options

Raised Face (RF) Flange

Features a raised surface around the bore for enhanced gasket compression
Provides superior sealing performance for high-pressure applications
Protects flange surface during handling and installation

Flat Face (FF) Flange

Smooth surface design without protrusions
Simplified alignment during assembly
Compact profile ideal for space-constrained installations
Typically used with full-face gaskets for optimal sealing
