ASTM Ti GR5 Ti6Al4V TC10 Titanium Forging Block Customized Length

Brand Name:	LHTi
Model Number:	LH-031
MOQ:	100kg
Price:	USD20-48 Per KG
Payment Terms:	D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5Ton per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji City Shaanxi Province China

Certification:

ISO9001

Material:

Pure Titanium

Shape:

Square

Standard:

ASTM B 348

Density:

4.51 G/cm^3

Application:

Industrial

Length:

Customized

Surface:

Polished

Technique:

Forged

Packaging Details:

Standard foreigh packing, plastic inside and plywood case outside Or as the clients' request

Supply Ability:

5Ton per month

Highlight:

ASTM Ti GR5 Titanium Forging block

ASTM Ti6Al4V Titanium Forging block

TC10 Titanium Forging block

Product Description

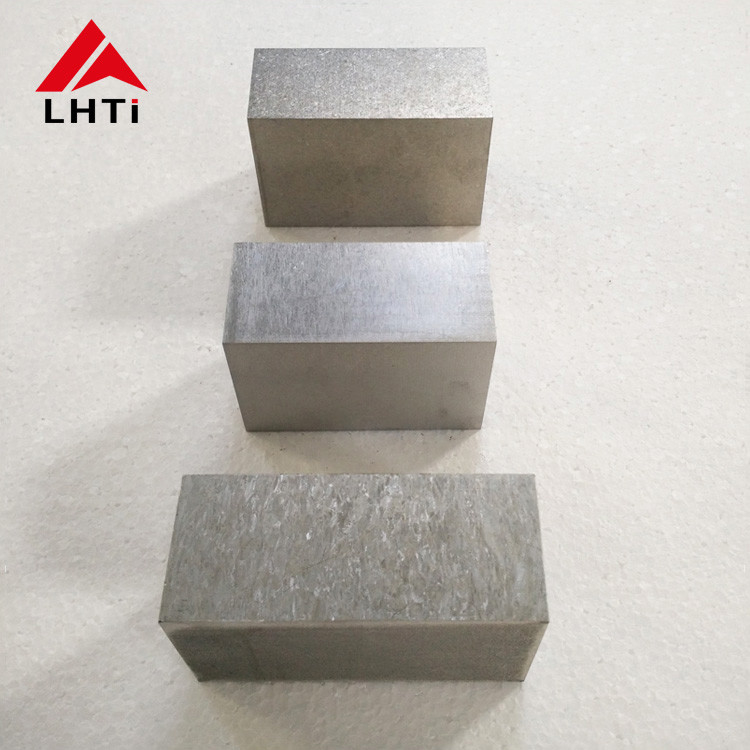

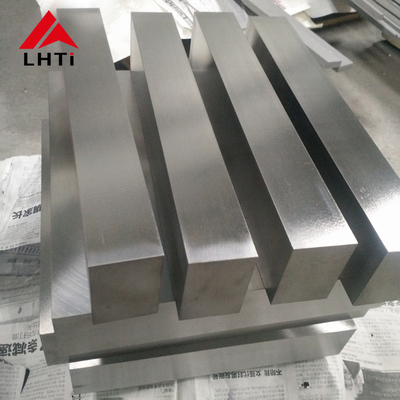

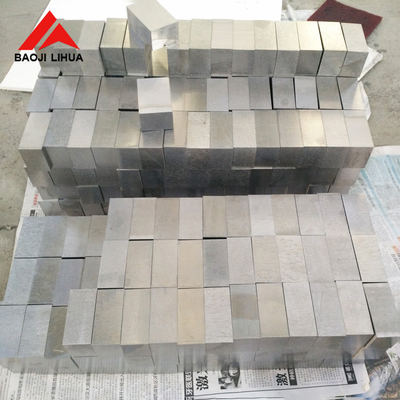

ASTM Ti GR5 Ti6Al4V TC10 Titanium Forging Block Customized Length

Ti6Al4V Titanium Forged Blocks offer exceptional wear resistance and corrosion protection. These blocks feature smooth surfaces that are clear and free of burrs. With low density and high strength, titanium serves as an essential structural material for industrial applications. As a non-magnetic metal, it effectively prevents interference and finds widespread use in railroad engineering, communications, aerospace, high-tech laboratories, hospitals, outdoor operations, chemical processing, and seawater nitriding environments.

Chemical Composition Requirements

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Mechanical Properties - Tensile Requirements

Grade	Tensile Strength (min)	Yield Strength	Elongation
1	35 KSI / 240 MPa	20 Ksi / 138 MPa	24%
2	50 KSI / 345 MPa	40 Ksi / 275 MPa	20%
5	130 KSI / 895 MPa	120 Ksi / 828 MPa	10%
7	50 KSI / 345 MPa	40 Ksi / 275 MPa	20%
12	70 KSI / 438 MPa	50 Ksi / 345 MPa	18%

Key Features

Excellent wear resistance and corrosion protection
Smooth, burr-free surface finish
Low density with high strength-to-weight ratio
Non-magnetic properties prevent electromagnetic interference
Customizable lengths to meet specific application requirements
Ideal for demanding environments including aerospace, chemical processing, and marine applications
