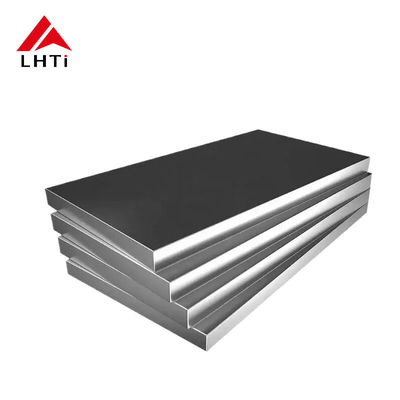

Grade 5 Titanium Sheet and Plate with High Heat and Corrosion Resistance for Industrial Applications

Name: Grade 5 Titanium Sheet and Plate with High Heat and Corrosion Resistance for Industrial Applications
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Sheet
Price: 3,755.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Sheet
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	100-200 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE, API,etc

Advantage:

Chinese Titanium Valley

Purity:

99.0%min

Length:

100mm-6000mm

Keyword:

Titanium Plate China

Size:

Schedule DN

Sample:

Processing:

Cold-Rolled,Hot-Rolled

Shape:

Rectangular

Color:

Silver

Corrosion Resistance:

Excellent

Width:

100mm-3000mm

Melting Point:

1668°C

Heat Resistance:

High

Surface:

Polished, Brushed, Sandblasted

Character:

Flexible

Packaging Details:

All goods are packed by seaworth shipment materials or required by buyer

Supply Ability:

100-200 Ton/Tons Per Month

Highlight:

Titanium Alloy Sheet Grade 5

Ti Plate Grade 5

Grade 5 Titanium Sheet

Product Description

Grade 5 Titanium Sheet/Plate - Corrosion Resistant for Industrial Use

Titanium alloys are recognized for their superior properties, making them indispensable across various industries. The ASTM B265 standard for titanium alloy plates and sheets establishes benchmarks for quality and performance. Silver titanium alloy plates with yield strength of 25,000 PSI and thicknesses from 0.5 to 6 mm offer a unique combination of strength, lightweight characteristics, and exceptional corrosion resistance.

Key Properties of Silver Titanium Alloys

Silver titanium alloys feature exceptional mechanical properties suitable for demanding applications. With a yield strength of 25,000 PSI, they perform reliably in high-stress environments. The natural oxide layer provides outstanding corrosion resistance against harsh chemicals and high temperatures, while the lightweight nature enables improved performance and efficiency in weight-sensitive applications.

Grade 5 Titanium (Ti-6Al-4V) Specifications

Grade 5 Titanium (Ti-6Al-4V) is the most commonly used titanium alloy, composed of 90% Titanium, 6% Aluminum, and 4% Vanadium. This high-strength alloy offers excellent corrosion resistance and performance at elevated temperatures, making it ideal for aerospace, marine, and medical applications.

Property	Details
Composition	90% Titanium, 6% Aluminum, 4% Vanadium
Density	4.43 g/cm³
Tensile Strength	130,000 psi (896 MPa)
Yield Strength	120,000 psi (827 MPa)
Elongation at Break	10-15%
Hardness	330-380 Brinell
Melting Point	1,670°C (3,038°F)
Modulus of Elasticity	113 GPa (16.4 x 10⁶ psi)
Corrosion Resistance	Excellent resistance to seawater, chlorine, and most acids
Biocompatibility	Highly biocompatible for medical implants and prosthetics
Applications	Aerospace, medical implants, marine, automotive, military

Technical Specifications

AMS 4911: Titanium Alloy Ti-6Al-4V (Grade 5) for aerospace applications
AMS-T-9046: Technical Standard for Titanium Sheet and Plate
ASTM B265: Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate

Key Benefits

High Strength-to-Weight Ratio: Superior tensile strength while remaining lighter than steel alloys
Corrosion Resistance: Exceptional performance in marine environments and acidic/basic solutions
Temperature Performance: Reliable operation in elevated temperature applications
Biocompatibility: Ideal for medical implants, surgical devices, and prosthetics

Product Comparison: Sheet vs Plate

Feature/Parameter	Titanium Sheet	Titanium Plate
Thickness Range	0.016" - 0.187"	0.250" - 4"
Common Grades	6AL-4V, 6AL-4V Eli, CP Grades 1, 2, 3, 4	6AL-4V, 6AL-4V Eli, CP Grades 1, 2, 3, 4
Common Specifications	AMS-4911, 4907, MIL-T-9046, ASTM-F136	AMS-4911, 4907, MIL-T-9046, ASTM-F136
Mechanical Properties	Tensile strength ≥ 40,000 psi	Tensile strength ≥ 120,000 psi
Cold Workability	Cold formable	Not cold formable
Applications	Chemical processing, heat exchangers, marine equipment, jewelry	Aerospace, military, high-strength applications

Industrial Applications

Titanium sheet and plate serve diverse applications across industries requiring high performance, durability, and corrosion resistance:

Automotive and Racing: Firewalls, driver protection, valve covers, bell housings, driveshaft tunnels, brake backing plates, and rocker shaft stands
Aerospace: Components requiring both strength and weight reduction
Manufacturing: Heat shields benefiting from titanium's excellent heat resistance
Jewelry: Durable, attractive jewelry utilizing titanium's lightweight, corrosion-resistant, and hypoallergenic qualities

Titanium's versatility and mechanical properties make it indispensable where performance and longevity are critical considerations across aerospace, automotive, and chemical processing industries.
