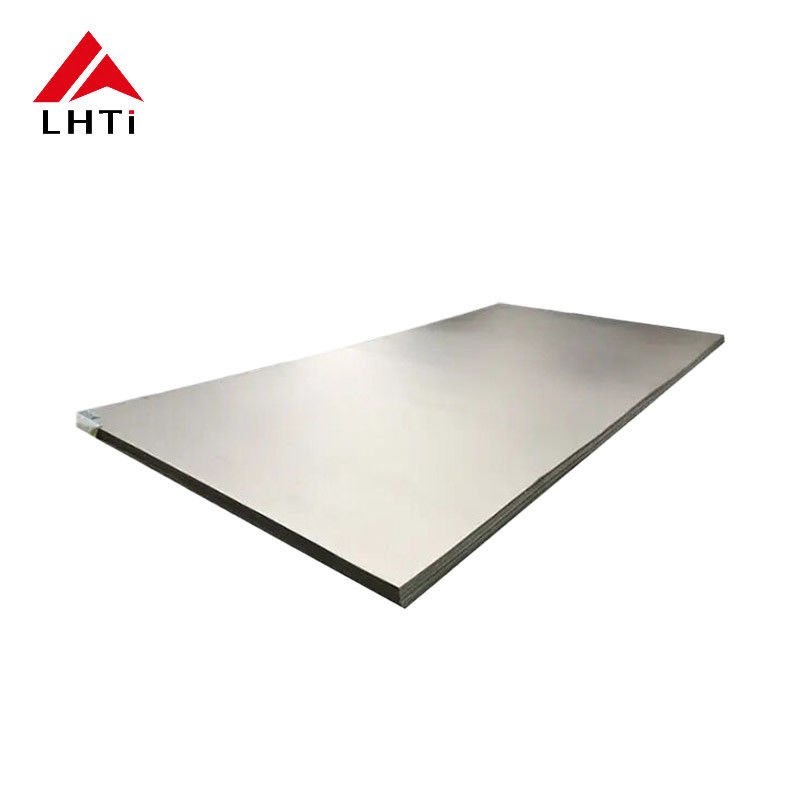

Gr1 Gr2 Titanium Sheet/Plate – Polished Surface Corrosion Resistant

Name: Gr1 Gr2 Titanium Sheet/Plate – Polished Surface Corrosion Resistant
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Sheet
Price: 3,755.00 USD
Availability: InStock

Brand Name:	LHTi,China
Model Number:	Titanium Sheet
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji

Certification:

ISO9001,CE, API,etc

Porudct Name:

Titanium Plate / Sheet

Surface Finish:

Polished

Character:

Flexible

Model:

Sheet

Processing Service:

Welding, Cutting

Shape:

Square

Thickness:

0.1mm-100mm

Length:

100mm-6000mm

Powder Or Not:

Not Powder

Regular Size:

4*8ft/ 4*10ft/ 1500*3000mm

Yield Strength:

P.S.I. = 25000

Surface Treatment:

Polished

Standard:

ASTM B265, AMS 4911, AMS 4919

Package:

Wooden Case

Tensile Strength:

240-450 MPa

Packaging Details:

All goods are packed by seaworth shipment materials or required by buyer

Supply Ability:

200 Ton/Tons Per Month

Highlight:

Grade 2 Titanium Alloy Sheet

Alloy Titanium Sheet

Grade 1 Titanium Sheet

Product Description

Gr1 Gr2 Titanium Sheet/Plate – Polished Surface Corrosion Resistant

Titanium sheets and plates are essential materials in industries ranging from aerospace to chemical processing, valued for their exceptional corrosion resistance, lightweight properties, and strength. The most commonly used commercially pure titanium grades in sheet and plate form are Grade 1 and Grade 2, each offering distinct mechanical properties and applications.

Grade 1 Titanium Plate (CP Titanium)

Composition: Commercially pure titanium (99.5% titanium)

Key Properties

Corrosion Resistance: Superior resistance to highly corrosive environments including seawater, acids, and chloride-rich conditions
Strength: Tensile strength of 240-340 MPa with excellent ductility and formability
Workability: Excellent weldability, machinability, and fabrication capabilities for complex shapes
Weight: Lightweight with density of 4.51 g/cm³
Biocompatibility: Non-toxic and highly suitable for medical applications

Primary Applications

Chemical Processing: Heat exchangers, piping, and valves for aggressive chemical environments
Marine Industry: Boat hulls, propellers, and offshore platforms
Medical Devices: Implants, prosthetics, and surgical instruments
Architectural: Building exteriors in coastal regions

Grade 2 Titanium Plate (CP Titanium)

Composition: Commercially pure titanium (99.2% titanium with small amounts of iron and oxygen)

Key Properties

Corrosion Resistance: Excellent performance in chlorides, seawater, and most corrosive environments
Strength: Higher tensile strength of 350-450 MPa while maintaining good ductility
Workability: Excellent formability, machinability, and weldability
Weight: Lightweight with density of approximately 4.51 g/cm³
Biocompatibility: Suitable for medical implants and surgical applications

Primary Applications

Chemical Industry: Piping, tanks, and equipment for corrosive chemical processing
Marine Applications: Underwater equipment, ship components, and offshore drilling platforms
Aerospace: Non-structural aircraft and spacecraft components
Medical Field: Surgical instruments and implants
Power Generation: Nuclear power plant heat exchangers and components

Grade 1 vs Grade 2 Titanium Comparison

Property	Grade 1 (CP Titanium)	Grade 2 (CP Titanium)
Titanium Content	99.5%	99.2%
Tensile Strength	240-340 MPa	350-450 MPa
Corrosion Resistance	Best among titanium grades	Excellent, slightly lower than Grade 1
Workability	Excellent (easily welded & machined)	Excellent (easily welded & machined)
Density	4.51 g/cm³	4.51 g/cm³
Biocompatibility	Excellent	Excellent
Primary Applications	Chemical, Marine, Medical, Architectural	Chemical, Marine, Aerospace, Medical

Grade 5 Titanium Plate (Ti-6Al-4V Alloy)

Composition: Titanium alloy containing 90% titanium, 6% aluminum, and 4% vanadium

Key Properties

Strength: High tensile strength and fatigue resistance compared to pure titanium grades
Weight: Lightweight but denser than Grade 1 and Grade 2
Corrosion Resistance: Good performance in most applications
Heat Resistance: Superior performance at elevated temperatures
Workability: Less ductile and more challenging to weld than pure grades

Primary Applications

Aerospace: Aircraft structures, turbine blades, and landing gear
Medical: High-strength implants including hip and knee replacements
Automotive: Lightweight, high-performance exhaust systems and suspension components
Sports Equipment: Bicycle frames, golf clubs, and tennis rackets

Comprehensive Titanium Grade Comparison

Property	Grade 1	Grade 2	Grade 5
Composition	99.5% Titanium	99.2% Titanium	90% Ti, 6% Al, 4% V
Strength	Low	Moderate	High
Corrosion Resistance	Excellent	Excellent	Good
Weight	Light	Light	Moderate
Biocompatibility	Excellent	Excellent	Good
Workability	Excellent	Excellent	Good
Applications	Chemical, Marine, Medical, Architectural	Chemical, Marine, Aerospace, Medical	Aerospace, Automotive, Medical, Sports

Selection Guidelines

Grade 1 Titanium: Ideal for applications requiring maximum corrosion resistance, lightweight properties, and biocompatibility where high strength is not critical.

Grade 2 Titanium: Versatile choice offering balanced strength, corrosion resistance, and workability for chemical processing, marine, and aerospace applications.

Grade 5 Titanium: Preferred for high-performance applications demanding superior strength, heat resistance, and durability in aerospace, medical implants, and automotive components.
