Home Products

Titanium Sheet

ASTM 265 Gr7 Titanium Plate Polished Surface For Chemical Industry

Name: ASTM 265 Gr7 Titanium Plate Polished Surface For Chemical Industry
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-plate
Price: 25.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	LH-plate
MOQ:	10kg
Price:	$20.00~$30.00/kg
Payment Terms:	L/C, D/P, T/T, Western Union，paypal
Supply Ability:	5000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Place Of Origin::

China

Technique::

Hot Rolled

Model Number::

Titanium Alloy Plate

Material::

GR1/GR2/GR3/GR5/GR7/GR9/GR12

CERTIFICATION::

ISO9001

Surface::

Polished

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 tons per month

Highlight:

Chemical Industry Titanium Plate

ASTM 265 Gr7 Titanium Plate

Polished Surface Titanium Plate

Product Description

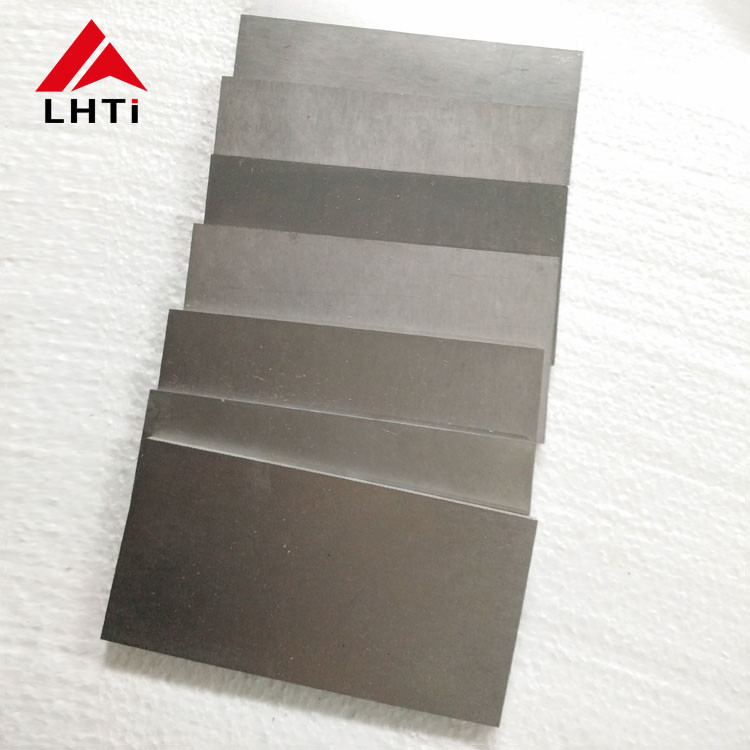

ASTM 265 Gr7 Titanium Plate Polished Surface For Chemical Industry

ASTM 265 Gr7 Titanium Plate Polished Surface For Chemical Industry 0

Gr7 Titanium Alloy Sheet Astm 265 Polished Surface For Chemical Industry

Titanium Grade 7 plate is a corrosion-resistant alpha-titanium alloy with similar mechanical properties to commercially available high-purity grades. A small amount of palladium is added to improve corrosion resistance especially in mineral acids and strong saltwater.

Petrochemical industry, pressure vessel, electroplating equipment and instruments, medical treatment, sporting goods, titanium spectacle frame (TB5), titanium watch (TC4/TA2).

Such as: through the rolling plate equipment to be welded into a pressure vessel cylinder (shell), through the drawing equipment to make titanium mesh plate, used in the production of electroplating industry commonly used titanium mesh basket.

Medical ASTM F136 titanium plate are used in many difficult applications in medical treatment, implants and dentistry. The titanium plate was chosen because of its unique combination of high strength, light weight, corrosion resistance, biocompatibility and higher temperature performance.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

ASTM 265 Gr7 Titanium Plate Polished Surface For Chemical Industry 4
