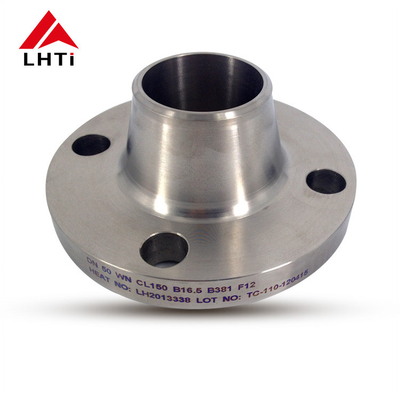

DIN Standard PN10 Titanium Forging Weld Neck Flange with Material Test Report EN10204.3.1

Brand Name:	LH-Ti
Model Number:	LH-BL
MOQ:	1 piece
Price:	US dollar $30/pc--US dollar $80/pc
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Type:

WN , SO , BL ,SW, PL, Lap Joint, Customized.

Standard:

ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5

Material:

Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9

Application:

Used In Cars, Glasses,medical Equipment , Electronics , Petrochemical Equ Ipment,Pump Valve, Pipeline, Aerospace,Ocean Industry,etc.

Sealing Surface:

Size:

1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure:

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, Etc/

Surface:

Polished

Technique:

Forged And CNC Machined.

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

5000 pcs per month

Highlight:

PN10 Titanium Flange

DIN Standard Weld Neck Flange

Material Test Report EN10204.3.1 Forged Flange

Product Description

DIN Standard PN10 Titanium Forging Weld Neck Flange

High-performance titanium weld neck flange manufactured to DIN standards with PN10 pressure rating.

Product Specifications

Size Scope:
- Bolt Sizes: M1.6-M22*length
- Nut Sizes: M3-M30
- Washer Sizes: M3-M30
- Flange Sizes: DN10-DN1000 / 1/2"-80"
Surface Treatment: Transparent oil, rust-proof oil, hot galvanizing

Applications

Titanium alloys are ideal for demanding applications due to their:

High tensile strength-to-density ratio
Excellent corrosion resistance
Anti-fatigue and anti-crack properties
Ability to withstand moderately high temperatures

Common uses include aircraft components, armor plating, naval ships, spacecraft, and missile systems.

Chemical Requirements

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile Requirements

Grade	Tensile Strength (min)	Yield Strength	Elongation (%)
1	35 KSI / 240 MPa	20 KSI / 138 MPa	24
2	50 KSI / 345 MPa	40 KSI / 275 MPa	20
5	130 KSI / 895 MPa	120 KSI / 828 MPa	10
7	50 KSI / 345 MPa	40 KSI / 275 MPa	20
12	70 KSI / 438 MPa	50 KSI / 345 MPa	18
