Home Products

Titanium Tube

GR2 Pure Titanium Tube Titanium Pipe

Name: GR2 Pure Titanium Tube Titanium Pipe
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Gr2 titanium round seamless pipe and tube
Price: 25.00 USD
Availability: InStock

Brand Name:	LH-Ti
Model Number:	Gr2 titanium round seamless pipe and tube
MOQ:	5 Kg
Price:	$20.00~$30.00/kg
Payment Terms:	L/C, T/T, MoneyGram,Paypal
Supply Ability:	10000 Kilogram/Kilograms per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Standard:

ASTM

Technique:

Seamless, Cold Drawn

Processing Service:

Bending, Welding, Decoiling, Cutting, Punching

Material:

Titanium

Grade:

Titanium, Gr2 Gr5 Gr7 Gr9 Gr12

Application:

Industrial

Outer Diameter:

10-300mm

Inside Diameter:

4~268mm

Packaging Details:

First, packaging with moisture-proof paper; Second, packaging with kraft paper; Third, packaging with foam plastics in all side of plywood case.

Supply Ability:

10000 Kilogram/Kilograms per Month

Product Description

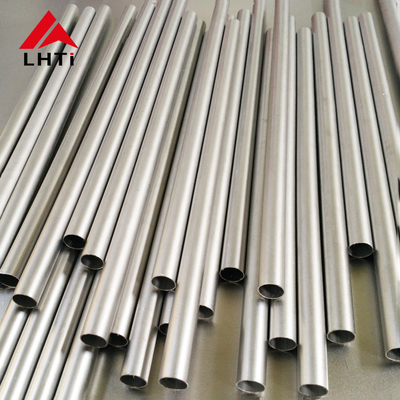

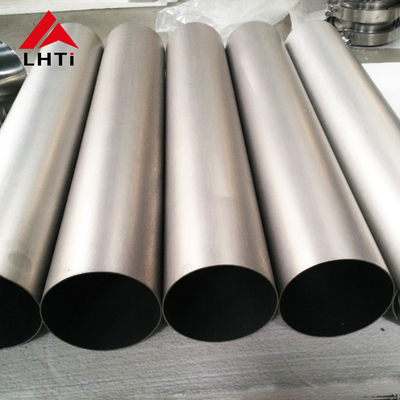

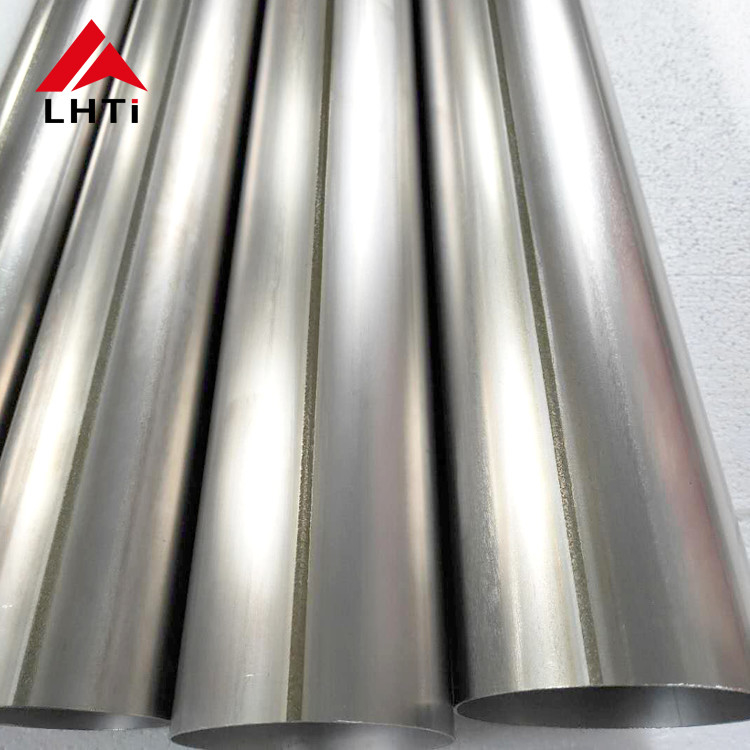

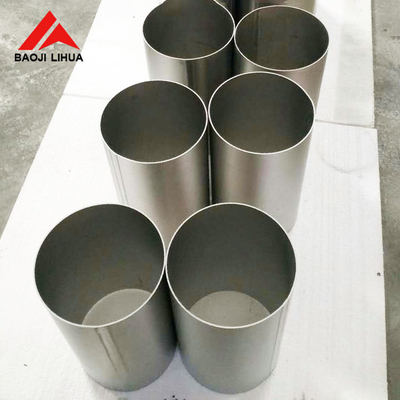

GR2 Pure Titanium Tube Titanium Pipe

Grade: Gr1 Gr2
Standard:ASTM B338, AMSE SB338
ASTM B861, ASTM B862
Test:Ultrasonic test, Hydraulic test
Processing:Cold rolling, Extruding, Welding, Hot Expanding
Popular Sizes(mm & inch):
OD 19.05 mm(0.75”) x 1.2 mm(0.045”)
OD 19.05 mm(0.75”) x 0.7 mm(17.78”)
OD 25.40 mm(1.0”) x 0.9 mm(0.035”)
OD 38.00 mm(1.5”) x 0.7 mm(17.78”)

Pure Titanium Tube is processed by the breakdown of pure titanium ingot, extruding to titanium tube billet. Then produce titanium tubes to appropriate size with series of processes such as multiple rolling, annealing, pickling, and grinding technology.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
