Titanium Round Tube Titanium Pipe

Name: Titanium Round Tube Titanium Pipe
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Gr2 titanium round seamless pipe and tube
Price: 25.00 USD
Availability: InStock

Brand Name:	LH-Ti
Model Number:	Gr2 titanium round seamless pipe and tube
MOQ:	5 Kg
Price:	$20.00~$30.00/kg
Payment Terms:	L/C, T/T, MoneyGram,Paypal
Supply Ability:	10000 Kilogram/Kilograms per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Standard:

ASTM

Technique:

Seamless, Cold Drawn

Processing Service:

Bending, Welding, Decoiling, Cutting, Punching

Material:

Titanium

Grade:

Titanium, Gr2 Gr5 Gr7 Gr9 Gr12

Application:

Industrial

Outer Diameter:

10-300mm

Inside Diameter:

4~268mm

Packaging Details:

First, packaging with moisture-proof paper; Second, packaging with kraft paper; Third, packaging with foam plastics in all side of plywood case.

Supply Ability:

10000 Kilogram/Kilograms per Month

Product Description

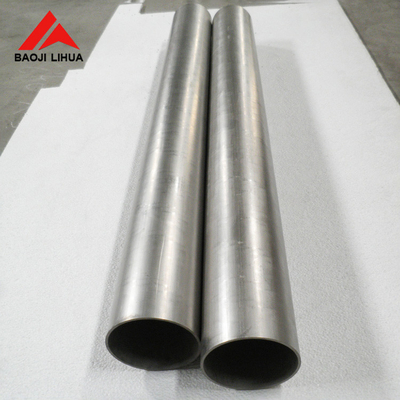

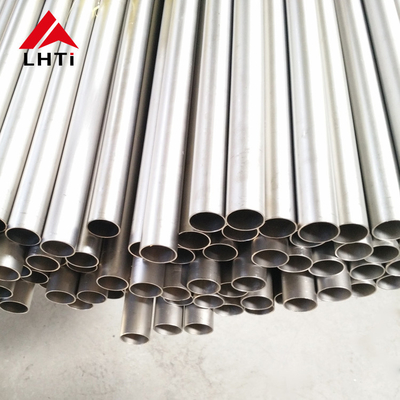

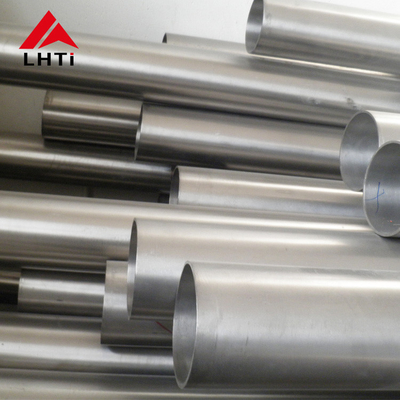

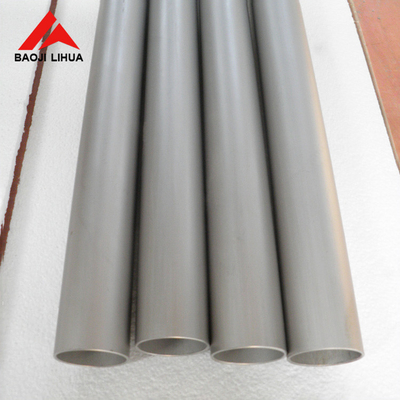

Titanium Round Tube Titanium Pipe

Product introduction:
1) Production mode: hot forging and machining. ② Hot extrusion, machining. ③ Hot rolling, machining
2) Testing methods: ultrasonic wave testing, dye penetrant testing, physical testing, etc.
3) Scope of application: the products are widely used in seawater desalination, offshore oil exploration, offshore oil drilling, pressure equipment, pressure vessels, tanks, gas drilling equipment and other fields of high pressure resistance, corrosion resistance, non-magnetic, high temperature resistance.

Titanium round tube has high strength, low Bai density, good mechanical properties, good toughness and corrosion resistance. In addition, titanium alloy has poor process performance and difficult cutting. In hot working, it is very easy to absorb hydrogen, oxygen, nitrogen, carbon and other impurities. In addition, the anti-wear property is poor and the production process is complex. The industrial production of titanium began in 1948.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

Titanium Round Tube Titanium Pipe 0
