Home Products

Titanium Tube

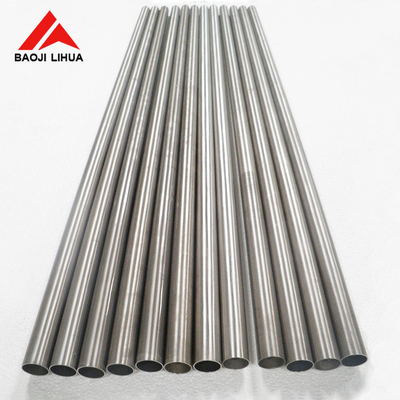

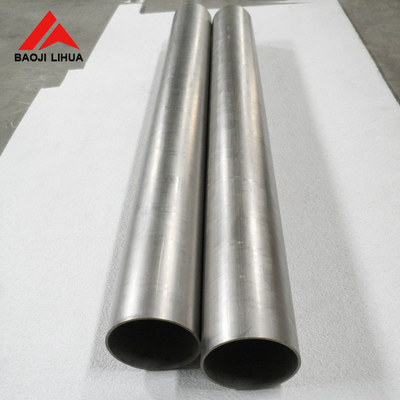

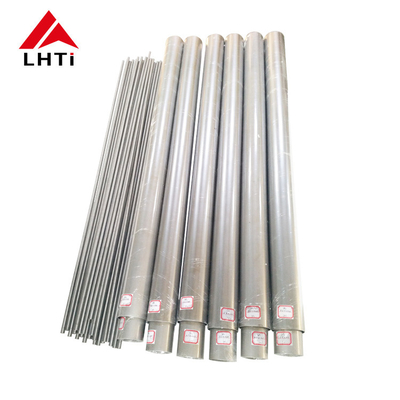

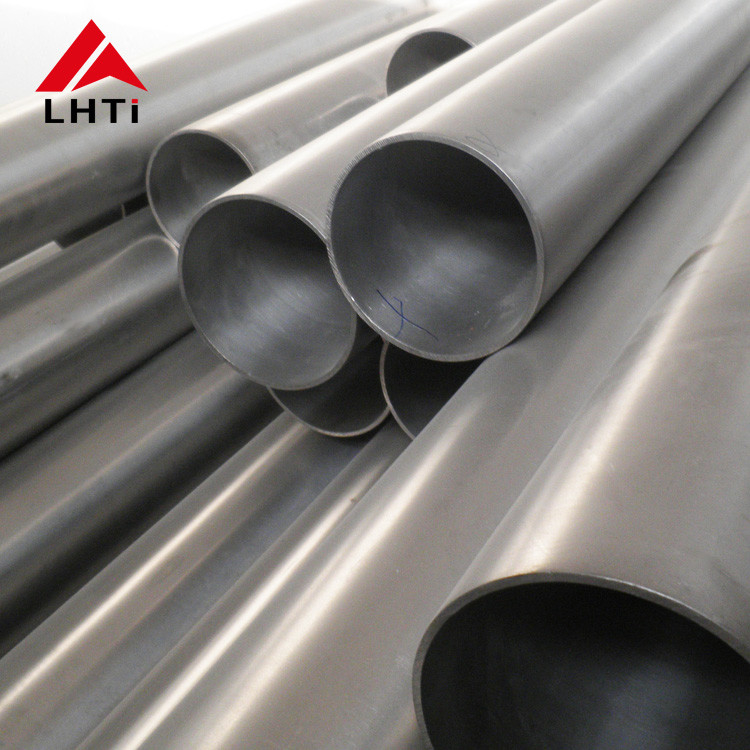

Titanium Seamless Tube For Condenser Titanium Pipe

Name: Titanium Seamless Tube For Condenser Titanium Pipe
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Gr2 titanium round seamless pipe and tube
Price: 25.00 USD
Availability: InStock

Brand Name:	LH-Ti
Model Number:	Gr2 titanium round seamless pipe and tube
MOQ:	5 Kg
Price:	$20.00~$30.00/kg
Payment Terms:	L/C, T/T, MoneyGram,Paypal
Supply Ability:	10000 Kilogram/Kilograms per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Standard:

ASTM

Technique:

Seamless, Cold Drawn

Processing Service:

Bending, Welding, Decoiling, Cutting, Punching

Material:

Titanium

Grade:

Titanium, Gr2 Gr5 Gr7 Gr9 Gr12

Application:

Industrial

Outer Diameter:

10-300mm

Inside Diameter:

4~268mm

Packaging Details:

First, packaging with moisture-proof paper; Second, packaging with kraft paper; Third, packaging with foam plastics in all side of plywood case.

Supply Ability:

10000 Kilogram/Kilograms per Month

Product Description

Titanium Seamless Tube For Condenser Titanium Pipe

Material:Titanium and titanium alloy
Outer Diameter:OD12.7mm, 19.05mm,25.4mm, 38.1mm,57mm
Wall thickness:WT0.5mm,0.889mm,0.9mm,1.0mm,1.24mm, 1.5mm, 1.65mm
Length:≤15000mm
Standard:ASTM B338/ASME SB338 Application:Petrohemical
Technique:Rolling
Surface:Polished surface/ Acid-washed surface
Shape:Round tube
Advantage:Anti-corrosion,low density
Place of Origin:Shaanxi, China (Mainland)

Titanium Seamless Tube for Condenser is a long tube made of titanium alloy material with a hollow section and no joints on the periphery. Equipped with advanced process, it can be an ideal material mainly used to make compressor parts for aircraft engines and structural parts for rockets, missiles and high-speed aircraft. On the other hand, it plays an important role in general industrial manufacturing fields such as electrodes for the electrolytic industry, condensers for power stations, heaters for oil refining and desalination, and environmental pollution control devices.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

Titanium Seamless Tube For Condenser Titanium Pipe 0
