Home Products

Titanium Tube

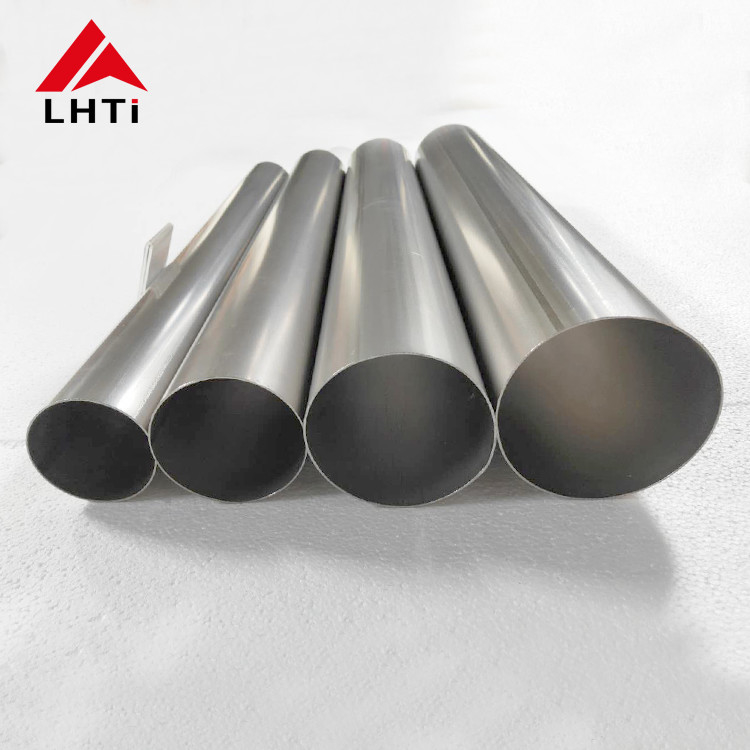

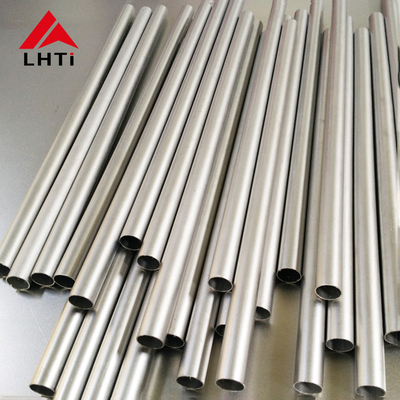

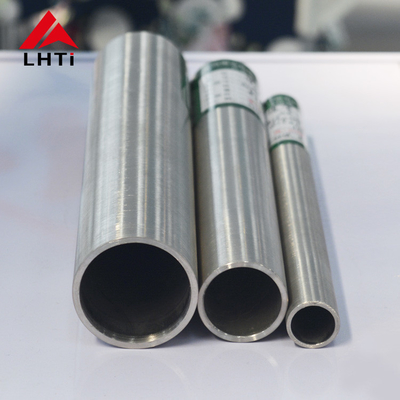

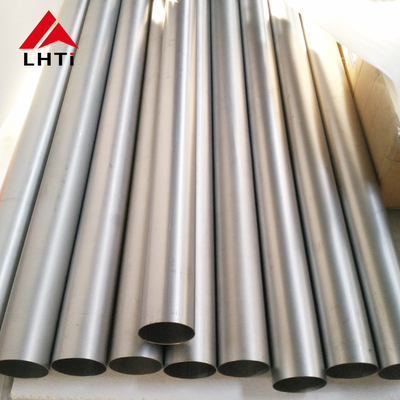

Titanium Exhaust Pipe GR2 Titanium Pipe

Name: Titanium Exhaust Pipe GR2 Titanium Pipe
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Gr2 titanium round seamless pipe and tube
Price: 25.00 USD
Availability: InStock

Brand Name:	LH-Ti
Model Number:	Gr2 titanium round seamless pipe and tube
MOQ:	5 Kg
Price:	$20.00~$30.00/kg
Payment Terms:	L/C, T/T, MoneyGram,Paypal
Supply Ability:	10000 Kilogram/Kilograms per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Standard:

ASTM

Technique:

Seamless, Cold Drawn

Processing Service:

Bending, Welding, Decoiling, Cutting, Punching

Material:

Titanium

Grade:

Titanium, Gr2 Gr5 Gr7 Gr9 Gr12

Application:

Industrial

Outer Diameter:

10-300mm

Inside Diameter:

4~268mm

Packaging Details:

First, packaging with moisture-proof paper; Second, packaging with kraft paper; Third, packaging with foam plastics in all side of plywood case.

Supply Ability:

10000 Kilogram/Kilograms per Month

Product Description

Titanium Exhaust Pipe GR2 Titanium Pipe

Material: Titanium(Gr1, Gr2)
Standard :ASTM B861 ASTM B862
Certification: ISO9001:2015, EN10204.3.1
Diameter:2" 2.5" 3" 3.5" 4" 4.5" 5"
(45mm,50mm,60mm,63mm,76mm,89mm,102mm)
Length:1000mm, or cut as customer's requets
Technique: Rolled
Status: Annealed(M)
Type:Seamless,Welded
Application :Exhaust pipe

This Titanium Exhaust Pipe GR2 is equipped with advanced process, which has the advantage of light weight, high strength and superior mechanical properties. Due to the high performance, our Titanium Exhaust Pipe GR2 plays an important role in heat exchange equipment, such as column and tube heat exchangers, coil and tube heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transmission pipes. On the other hand, it ensures longer service life for use and there is no special need of maintaining.

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

Titanium Exhaust Pipe GR2 Titanium Pipe 0
