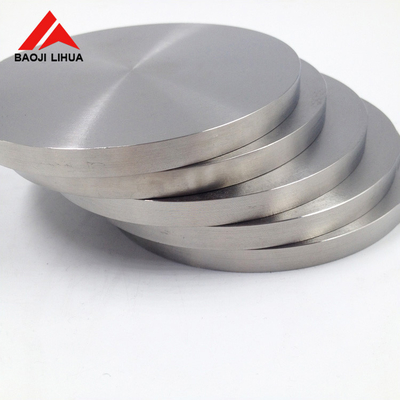

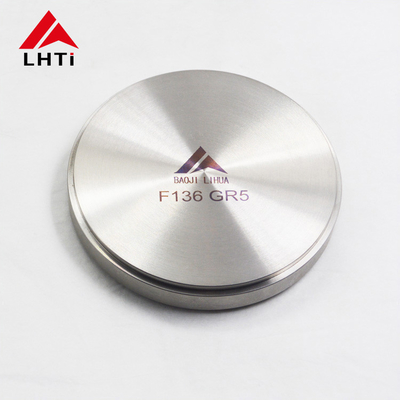

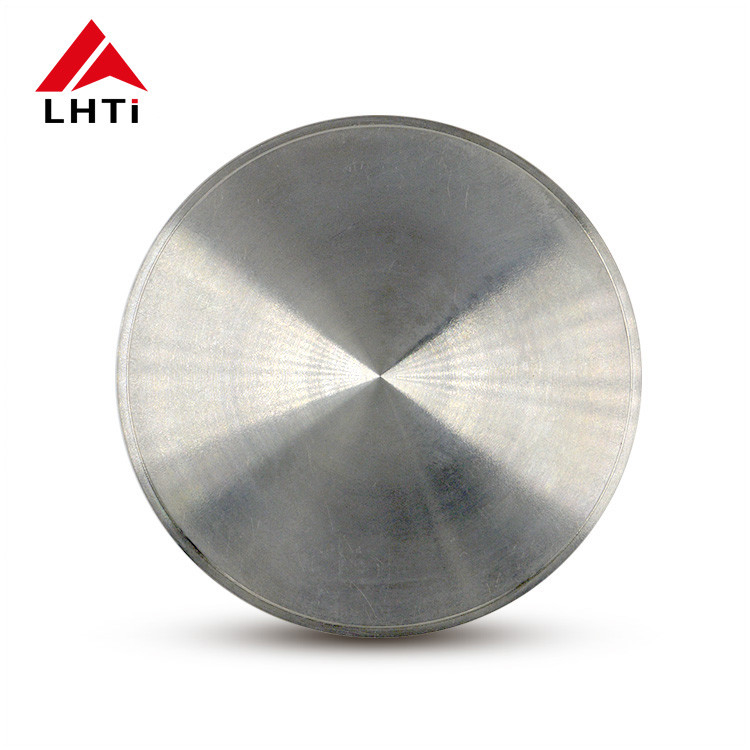

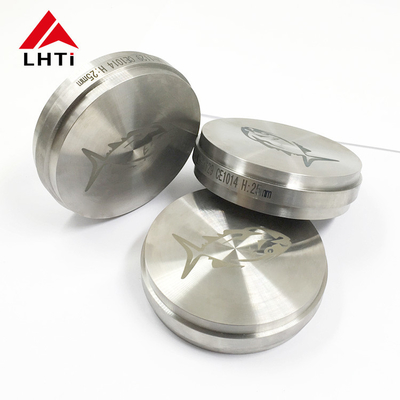

Gr5 Titanium Disc Disk Dia 200mm 350mm for Dentist

Name: Gr5 Titanium Disc Disk Dia 200mm 350mm for Dentist
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium disc
Price: 28.50 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium disc
MOQ:	5 pcs
Price:	$17.5/kg--US dollar $39.5/kg
Payment Terms:	L/C, D/P, T/T, Western Union，paypal
Supply Ability:	10000 Kilograms per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO 9001:2015,TUV,SGS

Material::

Pure Titanium & Titanium Alloy

Grade::

Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc

Technique::

Forged, CNC Machined

Standard::

ASTM B381

Color::

Matal Gray

Feature::

Titanium Has Low Weight, Excellent High Strength, Excellent Corrosion Resistance.

Packaging Details:

Standard export packing,plywood case outside

Supply Ability:

10000 Kilograms per Month

Product Description

Gr5 Titanium DiscForged Titanium Round

Precision Custom Machining Parts Titanium round cake

Grade	Chemical composition, weight percent (%)
Grade	C (≤)	O (≤)	N (≤)	H (≤)	Fe (≤)	Al	V	Pd	Ru	Ni	Mo	Other Elements Max. each	Other Elements Max. total
Gr1	0.08	0.18	0.03	0.015	0.20	—	—	—	—	—	—	0.1	0.4
Gr2	0.08	0.25	0.03	0.015	0.30	—	—	—	—	—	—	0.1	0.4
Gr4	0.08	0.25	0.03	0.015	0.30	—	—	—	—	—	—	0.1	0.4
Gr5	0.08	0.20	0.05	0.015	0.40	5.5～6.75	3.5～4.5	—	—	—	—	0.1	0.4
Gr7	0.08	0.25	0.03	0.015	0.30	—	—	0.12～0.25	—	0.12～0.25	—	0.1	0.4
Gr9	0.08	0.15	0.03	0.015	0.25	2.5～3.5	2.0～3.0	—	—	—	—	0.1	0.4
Gr11	0.08	0.18	0.03	0.15	0.2	—	—	0.12～0.25	—	—	—	0.1	0.4
Gr12	0.08	0.25	0.03	0.15	0.3	—	—	—	—	0.6～0.9	0.2～0.4	0.1	0.4
Gr16	0.08	0.25	0.03	0.15	0.3	—	—	0.04～0.08	—	—	—	0.1	0.4
Gr23	0.08	0.13	0.03	0.125	0.25	5.5～6.5	3.5～4.5	—	—	—	—	0.1	0.1

Chemical requirements
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
