Product Details
Place of Origin: China baoji
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: Titanium Sheet
Payment & Shipping Terms
Minimum Order Quantity: 1 kg
Packaging Details: Plywood box with soft foam for additional protection
Delivery Time: 10-28 work days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Month
Application: |
Industry |
Width: |
20-1220mm |
Length: |
500-6000mm |
Technique: |
Hot Rolled |
Grade: |
GR5 |
Ti (Min): |
99.6% |
Processing Service: |
Welding, Cutting |
Product Name: |
Titanium Plate |
Material: |
GR1/GR2/GR3/GR5/GR7/GR9/GR12 |
Standard: |
ASTM B 265 |
Surface: |
Pickling |
Keyword: |
Titanium Plate China |
Color: |
Sliver |
Application: |
Industry |
Width: |
20-1220mm |
Length: |
500-6000mm |
Technique: |
Hot Rolled |
Grade: |
GR5 |
Ti (Min): |
99.6% |
Processing Service: |
Welding, Cutting |
Product Name: |
Titanium Plate |
Material: |
GR1/GR2/GR3/GR5/GR7/GR9/GR12 |
Standard: |
ASTM B 265 |
Surface: |
Pickling |
Keyword: |
Titanium Plate China |
Color: |
Sliver |

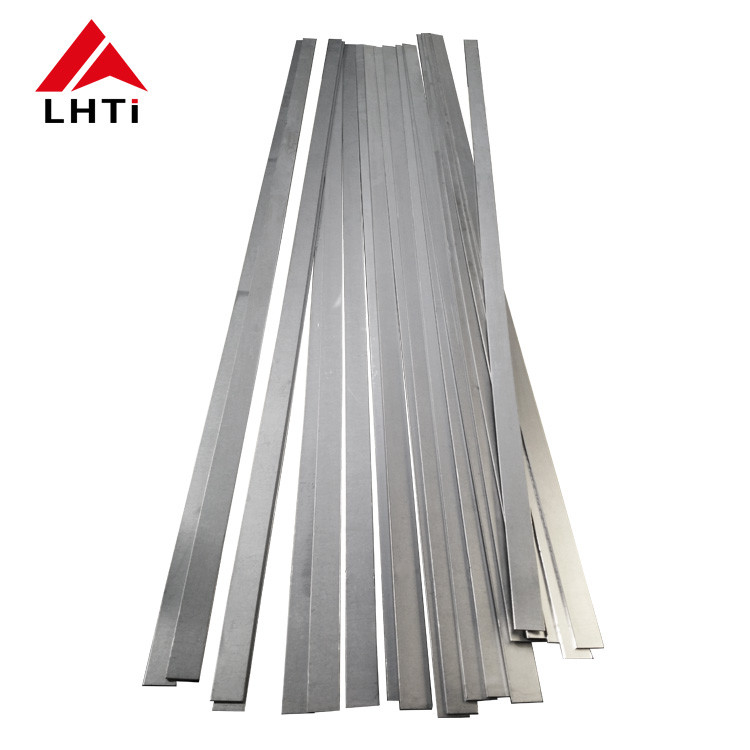

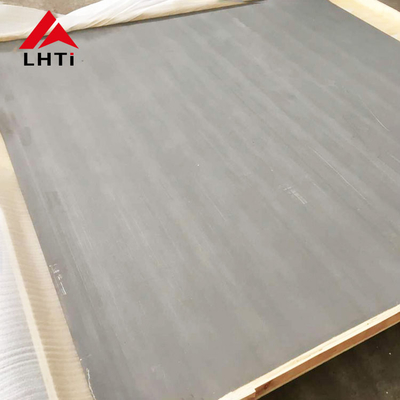

Gr5 Titanium Plate Hot Rolled Pickling Surface Corrosion Resistance
Titanium plate(sheet) for heat exchanger is a metal sheet with a corrugated shape by a series of stacked a new high-efficiency heat exchanger between various plates to form a thin rectangular channel, through the process of heat exchange it half a piece of shell and tube type heat exchanger in general, consumption in the same flow resistance and pump power under the condition, the heat transfer coefficient is much higher.
Features:
Material: Gr. 1, Gr. 11, Gr. 17
Standard: ASTM B265
Size: (0.5~1.0) T * (300~1000) W * (800~3000 )L mm
State: M, Annealed
Surface: Vacuum annealing bright
Erichsen number >11.0 mm
Tensile strength >280 MPa
Yield strength >185 MPa
Heat exchanger is widely used in metallurgy, petroleum, chemical industry, food, pharmaceutical, ship, textile, papermaking. It is considered to be excellent equipment for heating, cooling, heat recovery, and sterilization purposes.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
