Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium Sheet
Payment & Shipping Terms
Minimum Order Quantity: 50 kg
Packaging Details: Plywood box with soft foam for additional protection
Delivery Time: 7-20 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 200000 kg per month
Standard: |
ASTM B265 |
Technology: |
Cold Rolled |
Shape: |
Straight |
Surface: |
Polished, Acid Washing |
Size: |
0.7mm*1000mm*2000mm |
Standard: |
ASTM B265 |
Technology: |
Cold Rolled |
Shape: |
Straight |
Surface: |
Polished, Acid Washing |
Size: |
0.7mm*1000mm*2000mm |

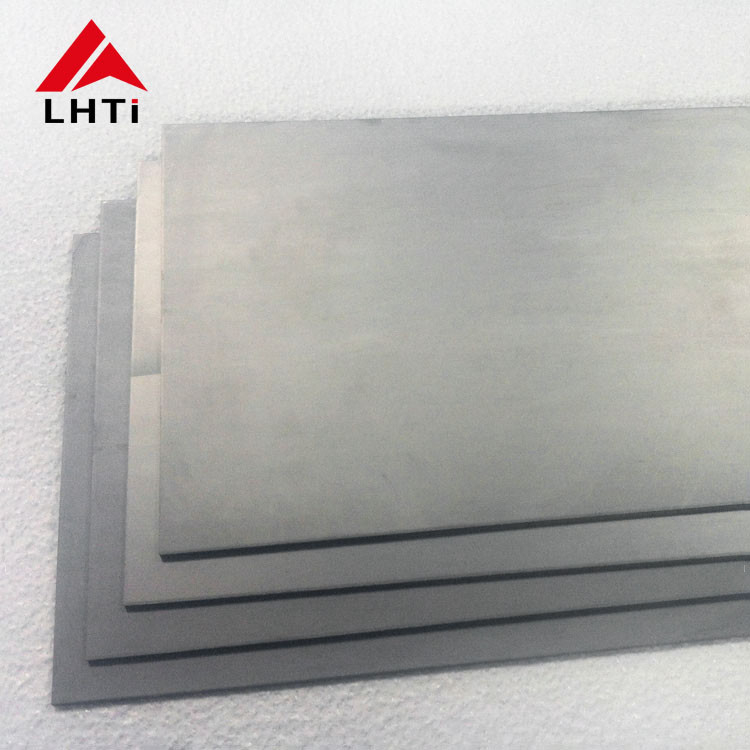

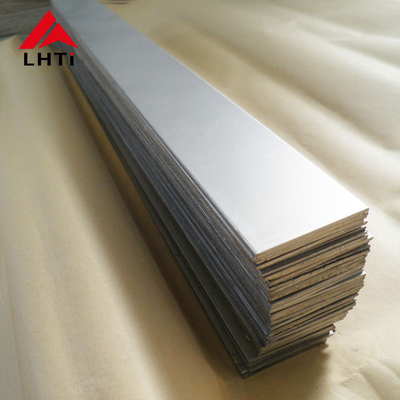

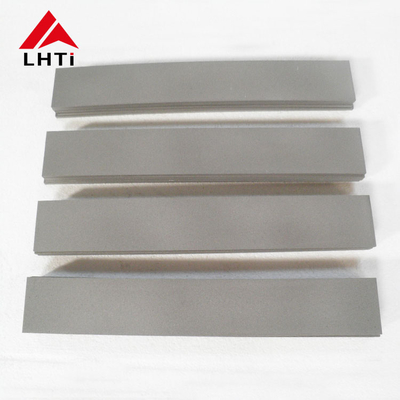

Gr5 Flat Titanium Metal Sheet 0.7mm Thickness
Product Information
1. Plate quality: GR5 titanium alloy plate
2. Specification: about 1000 length, 2000 width, and plate with thickness *1m*2m
3. Executive standard: AMS4911, etc.
4. Titanium plate features: low density, light texture, high temperature resistance, corrosion resistance, high tensile strength of titanium alloy plate, good mechanical properties
5. Application: widely used in electric power, chemical industry, ship, military industry, aviation, medical treatment, electroplating, petroleum exploitation and other fields.
6. Quality assurance: the company has a strict inspection of the quality of titanium plate and mature processing technology (such as chemical composition, mechanical properties, metallographic structure, tolerance, flaw detection) shipping can be issued to customers material certification, products through ISO9001 certification.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
