Product Details
Place of Origin: BaoJi Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-01
Payment & Shipping Terms
Minimum Order Quantity: If in stock, sample is available; If not in stock,200kgs of each size
Price: US dollar $23.5/kg--US dollar $35.9./kg
Packaging Details: Each tube with environmental protection bags,outside is standard plywood case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Standard: |
ASTM B338 |
Grade: |
Gr1 Gr2 Gr7 Gr12 |
OD: |
12.7mm 15.2mm 17.8mm 19mm 25.4mm 38.1mm |
Wall Thickness: |
1.0mm/1.2mm Or As Customized |
Material: |
Pure Titanium |
Purity: |
99.5%min |
Length: |
Max 16 Meter |
Surface: |
Pickling Surface |
Application: |
Heat Exchanger |
Production Time: |
15 Working Days |
Payment Term: |
T/T,Paypal,Western Union Etc |
Key Words: |
Titanium Seamless Tube |
Standard: |
ASTM B338 |
Grade: |
Gr1 Gr2 Gr7 Gr12 |
OD: |
12.7mm 15.2mm 17.8mm 19mm 25.4mm 38.1mm |
Wall Thickness: |
1.0mm/1.2mm Or As Customized |
Material: |
Pure Titanium |
Purity: |
99.5%min |
Length: |
Max 16 Meter |
Surface: |
Pickling Surface |
Application: |
Heat Exchanger |
Production Time: |
15 Working Days |
Payment Term: |
T/T,Paypal,Western Union Etc |
Key Words: |
Titanium Seamless Tube |

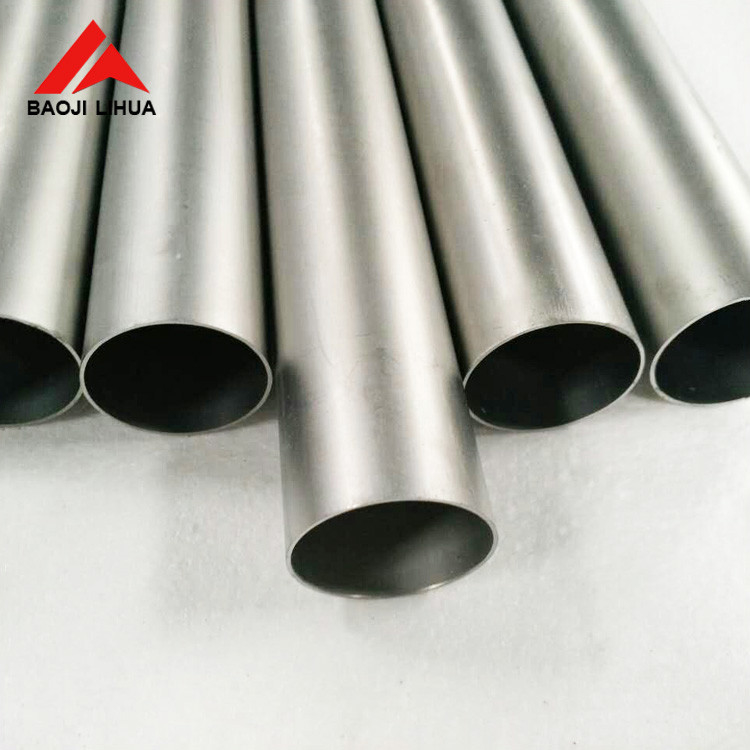

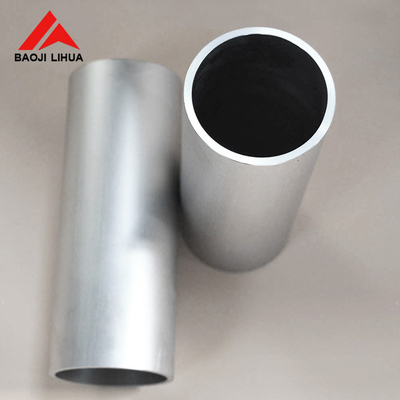

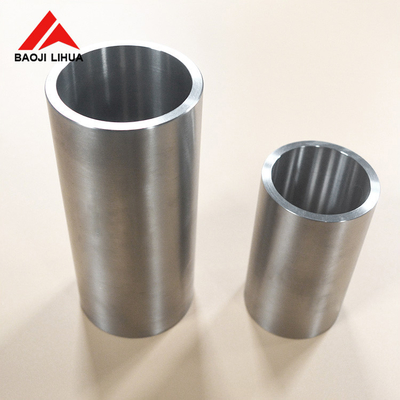

Grade 2 Titanium Tube Ti Exhaust Seamless Round Pipe
The ASTM B338 GR2 Welded Titanium Alloy Tube is a tube made of titanium alloy, which has the advantage of high mechanical properties, excellent stamping properties, and the cutting performance is good. In addition, the ASTM B338 GR2 Welded Titanium Alloy Tube has high corrosion resistance to chloride, sulfide and ammonia. The corrosion resistance of titanium in seawater is higher than that of aluminum alloys, stainless steels, and nickel-based alloys. Due to the excellent medium temperature strength, the temperature several hundred degrees is higher than aluminum alloy, which can still maintain the required strength at medium temperature.
| Standard | ASTM B338, ASME SB338 |
| Regular Grade | Grade 1 Grade 2 |
| Outer Diameter | 12.7mm 15mm 17mm 19mm 25.4mm 31mm etc. |
| Wall thickness | 0.9mm/1.0mm/1.2mm/1.5mm |
| Length | 3000 - 6000mm or other economical lengths |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Form | Straight titanium Pipe, Coiled titanium tube |
| Type | Seamless, ERW, EFW, Welded, Fabricated |
| End | Plain End, Beveled End, Treaded |
| Marking | Standard, Grade, OD, Thickness, Length, Heat No. (Or as per customer's request.) |
| Application | Oil Tube, Gas Tube, Fluid Tube, Boiler and Heat exchanger |
| Value Added Service |
Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Test Certificate | Mill Test Certificate EN 10204/3.1,TPI Report, EN10204/3.2 |
