Product Details
Place of Origin: BaoJi City Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-01
Payment & Shipping Terms
Minimum Order Quantity: If in stock, sample is available; If not in stock,100kgs of each size
Price: US dollar $23/kg-US dollar $31/kg
Packaging Details: Each tube with environmental protection bags,outside is standard plywood case
Delivery Time: 15 working days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Key Words 1: |
Factory Gr2 Gr1 Gr5 Gr7 Gr9 Gr12 Gr23 Titanium Pipe Prices Seamless Tube From Factory |
Key Words 2: |
20mm GR2 Titanium Tube |
Key Words 3: |
Titanium Heat Exchanger Tube |
Material: |
Pure Titanium |
Grade: |
Grade 2 |
Purity: |
99.5%min |
Length: |
Max 12 Meter |
Surface: |
Pickling Surface |
Application: |
Heat Exchanger |
Production Time: |
15 Working Days |
Payment Term: |
T/T,Paypal,Western Union Etc |
Key Words 1: |
Factory Gr2 Gr1 Gr5 Gr7 Gr9 Gr12 Gr23 Titanium Pipe Prices Seamless Tube From Factory |
Key Words 2: |
20mm GR2 Titanium Tube |
Key Words 3: |
Titanium Heat Exchanger Tube |
Material: |
Pure Titanium |
Grade: |
Grade 2 |
Purity: |
99.5%min |
Length: |
Max 12 Meter |
Surface: |
Pickling Surface |
Application: |
Heat Exchanger |
Production Time: |
15 Working Days |
Payment Term: |
T/T,Paypal,Western Union Etc |
Pure Titanium Pipe / Tube For Heat Exchanger
Titanium Seamless Tubes have the advantages of corrosion resistance, high yield strength and density ratio, small thermal expansion coefficient, long service life, high heat transfer efficiency. Due to the high performance, it realizes the function to greatly improve the life of the titanium tube heat exchanger and reduce the loss caused by equipment failure due to corrosion failure, good economic benefits. As a matter of fact, it is widely used in petrochemical and other fields. Due to its high strength, light weight, good heat transfer and corrosion resistance, it can be an ideal facility used in chemical, petroleum, petrochemical, vacuum salt, desalination, power and other industries.
| Name | Pure Titanium & Titanium Alloy Tube /Pipe/Tubing |
| Tube Shape | Round Square Flat Coil |
| Material | Gr1,Gr2,Gr7,Gr12. |
| Standard | ASTM SB338 |
| Type |
Seamless |
| OD | 20 mm |
| Wall Thickness | 1.2mm or as customized |
| Length | Max 12 meter |
| End | Plain End, Beveled End, Threaded |
| Certificate | EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report---TUV,BV,SGS etc |
| Application |
Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment Sea Water Equipment Heat Exchangers Condensers Pulp and Paper Industry |
| Grade | Tensile Strength(min) | Yeild Strength(0.2% offset)) | Elongation(%) | ||||
| ksi | MPa | Min | Max | ||||
| Ksi | Mpa | Ksi | Mpa | ||||
| 1 | 35 | 240 | 25 | 170 | 45 | 310 | 24 |
| 2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
| 7 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
| 9 | 90 | 620 | 70 | 483 | - | - | 15C |
| 12 | 70 | 483 | 50 | 345 | - | - | 18C |
| Grade | N | C | H | Fe | O | Al | V | Ti | Other , max |
| 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | Bal | 0.4 |
| 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | Bal | 0.4 |
| 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | Bal | 0.4 |
| 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | Bal | 0.4 |
| 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | Bal | 0.4 |

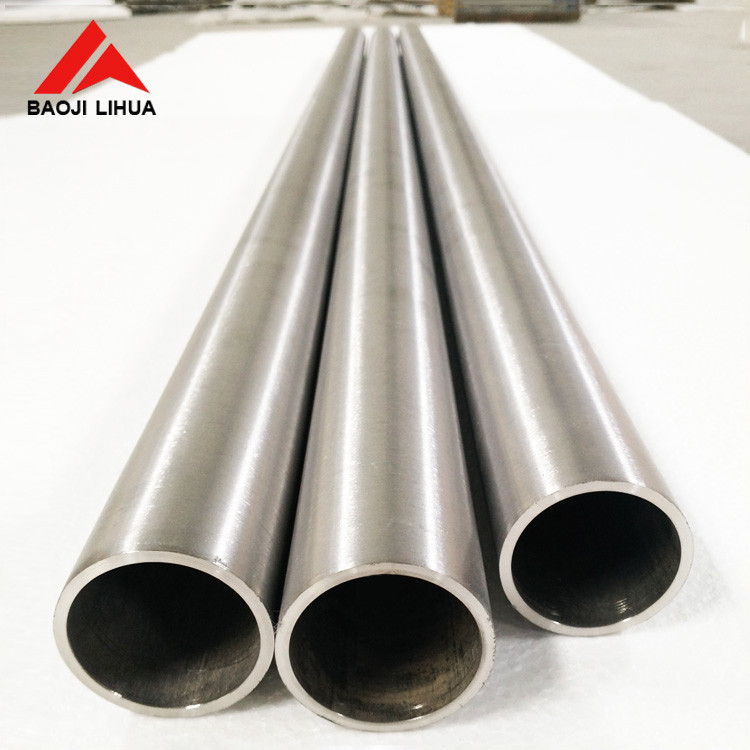

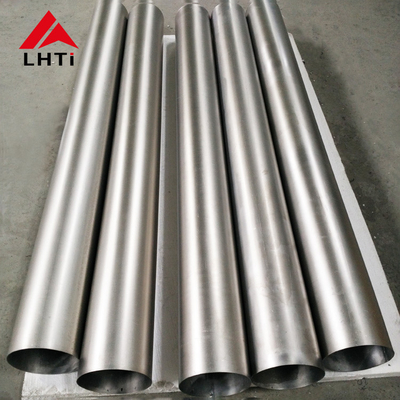

Detailed images:
