Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015,TUV,SGS
Model Number: LH-Ti10
Payment & Shipping Terms
Minimum Order Quantity: 5 pcs
Price: US dollar $17.5/kg--US dollar $39.5/kg
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, Western Union etc.
Supply Ability: 10000 Kilograms per Month
Material: |
Pure Titanium & Titanium Alloy |
Grade: |
Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc |
Technique: |
Forged, CNC Machined |
Standard: |
ASTM B381 |
Color: |
Matal Gray |
Feature: |
Titanium Has Low Weight, Excellent High Strength, Excellent Corrosion Resistance. |
Material: |
Pure Titanium & Titanium Alloy |
Grade: |
Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc |
Technique: |
Forged, CNC Machined |
Standard: |
ASTM B381 |
Color: |
Matal Gray |
Feature: |
Titanium Has Low Weight, Excellent High Strength, Excellent Corrosion Resistance. |
GR5 Forged Titanium Round Cake Precision Custom
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
Testing
Chemical composition test
Physical properties test
Appearance defects inspection
Ultrasonic flaw detection
Eddy current testing
Macroscopic examination
Packaging
In order to avoid the titanium disc has any collision in transit or damage, usually wrapped with pearl cotton (expandable polyethylene), then packed into wooden case.

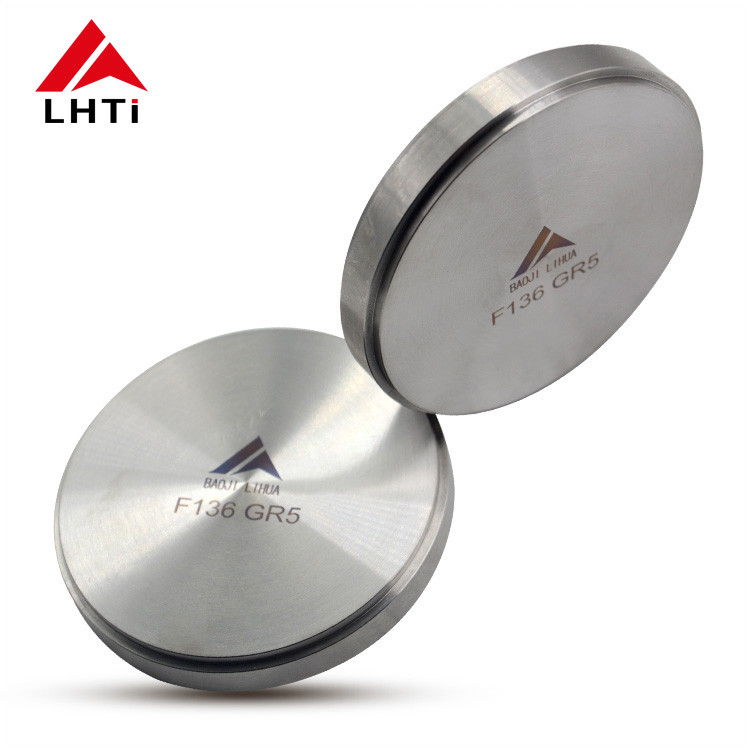

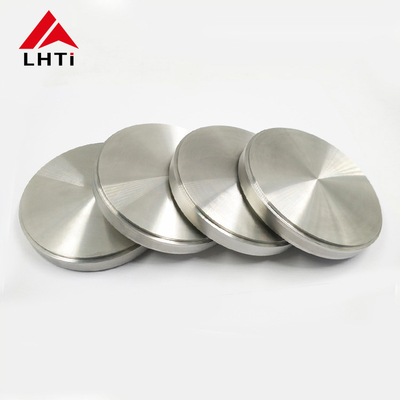

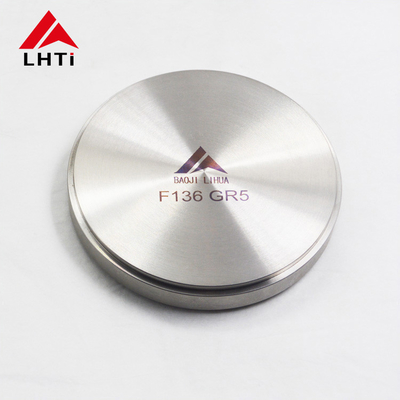

Product picture:
