Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015,TUV,SGS
Model Number: LH-Ti10
Payment & Shipping Terms
Minimum Order Quantity: 5 pcs
Price: US dollar $17.5/kg--US dollar $39.5/kg
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, Western Union etc.
Supply Ability: 10000 Kilograms per Month
Material: |
Pure Titanium & Titanium Alloy |
Grade: |
Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc |
Technique: |
Forged, CNC Machined |
Standard: |
ASTM B381 |
Color: |
Matal Gray |
Feature: |
Titanium Has Low Weight, Excellent High Strength, Excellent Corrosion Resistance. |
Material: |
Pure Titanium & Titanium Alloy |
Grade: |
Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc |
Technique: |
Forged, CNC Machined |
Standard: |
ASTM B381 |
Color: |
Matal Gray |
Feature: |
Titanium Has Low Weight, Excellent High Strength, Excellent Corrosion Resistance. |
Precision Custom Machining Parts Titanium round cake
| Grade | Chemical composition, weight percent (%) | ||||||||||||
|
C (≤) |
O (≤) |
N (≤) |
H (≤) |
Fe (≤) |
Al | V | Pd | Ru | Ni | Mo |
Other Elements Max. each |
Other Elements Max. total |
|
| Gr1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.20 | — | — | — | — | — | — | 0.1 | 0.4 |
| Gr2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | — | — | — | — | 0.1 | 0.4 |
| Gr4 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | — | — | — | — | 0.1 | 0.4 |
| Gr5 | 0.08 | 0.20 | 0.05 | 0.015 | 0.40 | 5.5～6.75 | 3.5～4.5 | — | — | — | — | 0.1 | 0.4 |
| Gr7 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | 0.12～0.25 | — | 0.12～0.25 | — | 0.1 | 0.4 |
| Gr9 | 0.08 | 0.15 | 0.03 | 0.015 | 0.25 | 2.5～3.5 | 2.0～3.0 | — | — | — | — | 0.1 | 0.4 |
| Gr11 | 0.08 | 0.18 | 0.03 | 0.15 | 0.2 | — | — | 0.12～0.25 | — | — | — | 0.1 | 0.4 |
| Gr12 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | — | — | — | — | 0.6～0.9 | 0.2～0.4 | 0.1 | 0.4 |
| Gr16 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | — | — | 0.04～0.08 | — | — | — | 0.1 | 0.4 |
| Gr23 | 0.08 | 0.13 | 0.03 | 0.125 | 0.25 | 5.5～6.5 | 3.5～4.5 | — | — | — | — | 0.1 | 0.1 |
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |

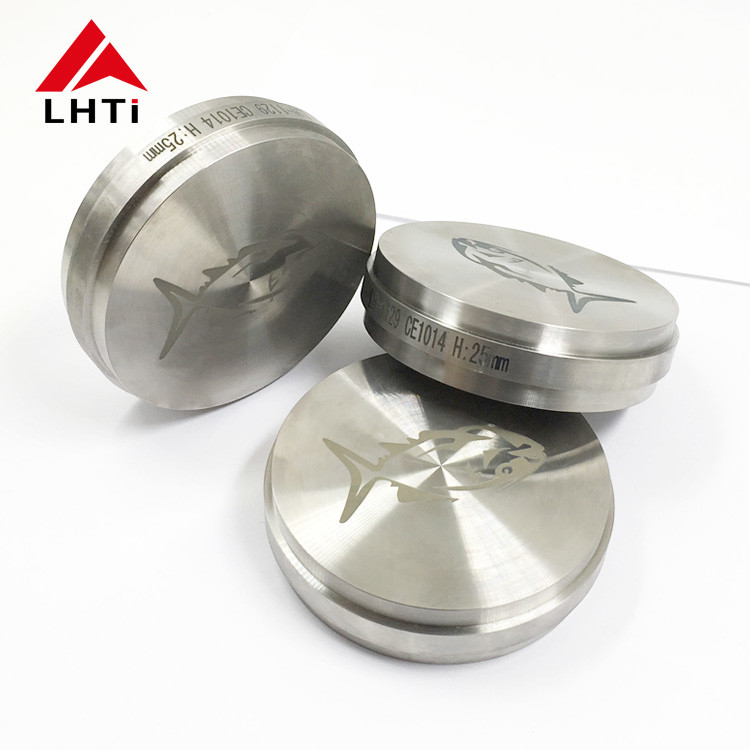

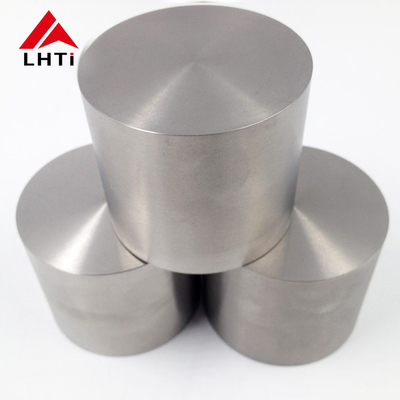

Product picture:
