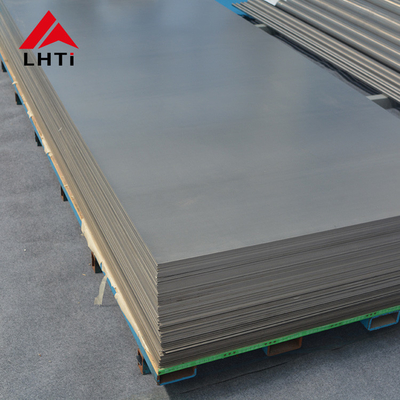

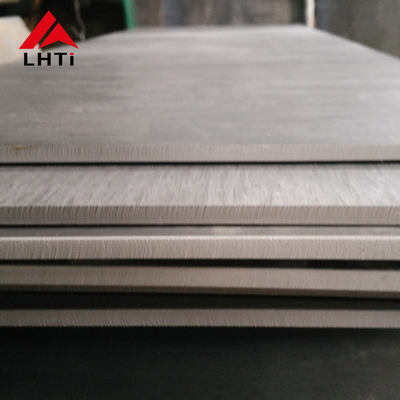

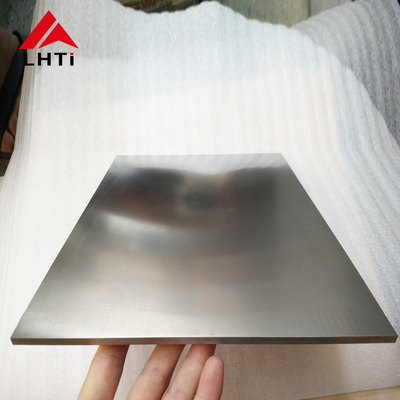

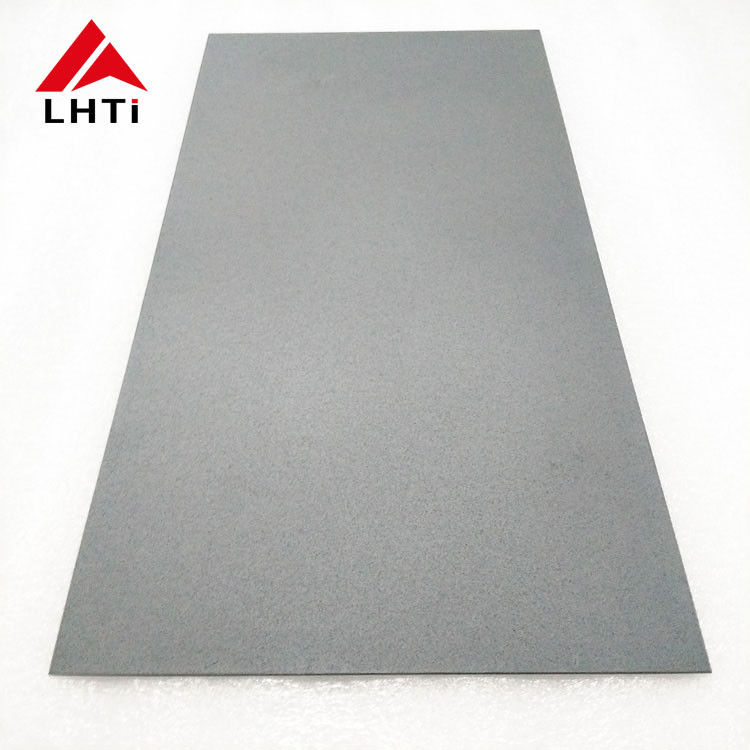

Gr1 Gr2 Gr5 Gr7 Gr12 Hot Rolled Titanium Sheet High Purity Titanium Plate

Name: Gr1 Gr2 Gr5 Gr7 Gr12 Hot Rolled Titanium Sheet High Purity Titanium Plate
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium plate
Price: 25.00 USD
Availability: InStock

Brand Name:	LH-Ti
Model Number:	Titanium plate
MOQ:	5 Kg
Price:	$20.00~$30.00/kg
Payment Terms:	T/T,MoneyGram,L/C,Western Union,Paypal
Supply Ability:	10000 Kilogram/Kilograms per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Width:

1mm~3000mm

Technique:

Hot Rolled

Model Number:

Gr1, Gr2, Gr5, Gr7, Gr12

Length:

1m,2m,3m,6m,12m,or As Requied

Surface:

Pickled Bright Polished Satin

Processing Service:

Bending, Welding, Decoiling, Cutting, Punching

Packaging Details:

First, packaging with moisture-proof paper; Second, packaging with kraft paper; Third, packaging with foam plastics in all side of plywood case.

Supply Ability:

10000 Kilogram/Kilograms per Month

Highlight:

Gr1 Hot Rolled Titanium Sheet

Bright Titanium Sheet 2m

High Purity Titanium Plate

Product Description

Hot Rolled Titanium Sheet - Grades Gr1, Gr2, Gr5, Gr7, Gr12

High purity titanium plates available in multiple industrial grades for various applications requiring exceptional strength, corrosion resistance, and lightweight properties.

Key Material Advantages

Lightweight Construction: With a density of 4.5g/cm³ (60% of steel), titanium enables high-strength, rigid products with significantly reduced weight.
High Temperature Performance: Maintains structural integrity and operates continuously in temperatures ranging from 450-500°C.
Superior Corrosion Resistance: Excellent performance in humid environments, seawater, strong acids, and strong alkaline solutions.
Non-Magnetic & Biocompatible: Non-magnetic properties combined with non-toxic nature and excellent compatibility with human tissue and blood, making it ideal for medical applications.

Chemical Composition Requirements

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile Strength Requirements

Grade	Tensile Strength (min)		Yield Strength		Elongation (%)
	KSI	MPa	KSI	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
