Product Details
Place of Origin: Shaanxi, China
Brand Name: LH-Ti
Certification: ISO9001:2015
Model Number: Titanium plate
Payment & Shipping Terms
Minimum Order Quantity: 5 Kg
Price: $20.00~$30.00/kg
Packaging Details: First, packaging with moisture-proof paper; Second, packaging with kraft paper; Third, packaging with foam plastics in all side of plywood case.
Delivery Time: 10-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 10000 Kilogram/Kilograms per Month
Width: |
1mm~3000mm |
Technique: |
Hot Rolled |
Model Number: |
Gr1, Gr2, Gr5, Gr7, Gr12 |
Length: |
1m,2m,3m,6m,12m,or As Requied |
Surface: |
Pickled Bright Polished Satin |
Processing Service: |
Bending, Welding, Decoiling, Cutting, Punching |
Width: |
1mm~3000mm |
Technique: |
Hot Rolled |
Model Number: |
Gr1, Gr2, Gr5, Gr7, Gr12 |
Length: |
1m,2m,3m,6m,12m,or As Requied |
Surface: |
Pickled Bright Polished Satin |
Processing Service: |
Bending, Welding, Decoiling, Cutting, Punching |
Titanium Plate Grade 1 Grade 2 Grade 5 Grade 7 Grade 12 Titanium Sheet
1. Titanium is a kind of rare nonferrous metal. Its density is 4.5g/cm³,it is just 60% of steel. So,it is very lighter than most other metals. We can use it to make high strength,good rigidity and light quality products.
2. It is also well-known as its high strength. It is able to work in the heat of 450-500°C continuously.
3. Excellent corrosion resistance:it can work in the wet air,sea water,strong acid and strong alkai.
4. Non magnetic nature:as it is a sort of Non magnetic metal,it cannot be magnetized easily. its nontoxic nature,a very good compatibility with human tissue and blood. So,it is widely adopted in the field of Medical Science.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |

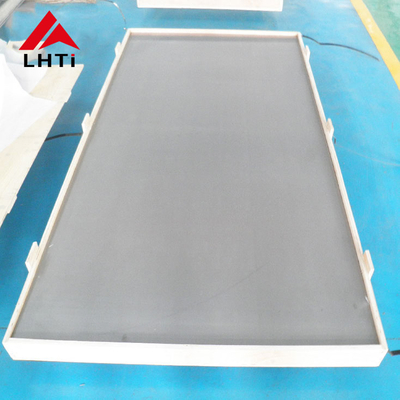

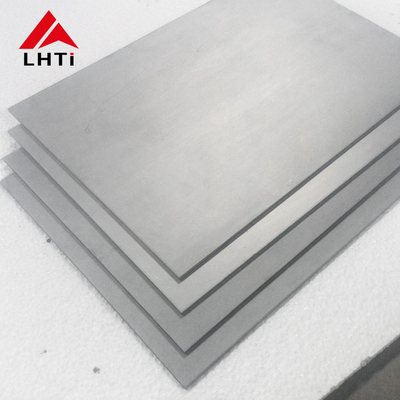

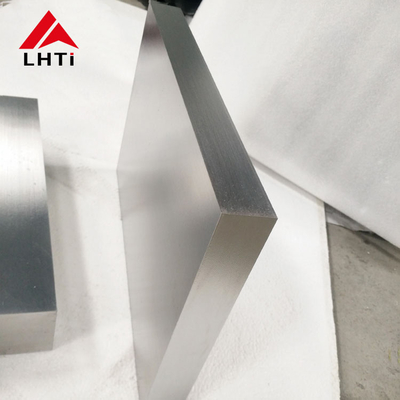

Product picture:
About us
Baoji Lihua Non-ferrous Metal Co., Ltd. was established in 2006. The company relies on theadvantages of Baoji industry and its strong technical support. It has been engaged in theproduction and sales of non-ferrous metals such as titanium, tantalum and nickel for many years.
The factory covers an area of 800 square meters. The factory has strong technical equipment. There are more than 20 sets of CNC machines, milling and drilling machines, and the annualproduction value is more than 30 million CNY.
The company's product is high quality and stable for many years, and it has obtained the Certification ISO 9001:2015, BV audit certification.
The company has been focusing on the improvement and stability of product quality for many years. Based on the business concept of maximizing customer service, we warmly welcome you to come for advice and business negotiation!
FAQ
1. Any discount?
A: The prices we quote are all wholesale price in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.
2. Are you a manufacturer?
A: Yes. As a manufacturer with 13 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best-quality products as we have fully equipped Product Department and QC Department.
3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.
4. Has your company acquired any certificate?
A: We are certified manufacturer with our auto parts approved by ISO9001 Quality Management System.
5. How about quality of products?
A: We guarantee strict control on every detail of the products. Each product is carefully inspected and tested before delivery.
6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.
7. How is your MOQ?
A: Minimum quantity for certain items is only 10kg. But MOQ can be lowered when you buy several different kinds of products together. For more details, please feel free to contact us at anytime.
8. How about delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
