Product Details
Place of Origin: BaoJi Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-01
Payment & Shipping Terms
Minimum Order Quantity: 1kg of each size
Price: US dollar $23/kg-US dollar $31/kg
Packaging Details: Each tube with environmental protection bags,outside is standard plywood case
Delivery Time: 3-5 working days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Key Words 1: |
Titanium Tube |
Key Words 2: |
GR2 Titanium Straight Tube |
Key Words 3: |
Titanium Pipe |
Material: |
Pure Titanium |
Grade: |
Grade 2 |
Purity: |
99.5%min |
Length: |
1000mm In Stock |
Surface: |
Pickling Surface |
Application: |
Industrial |
Production Time: |
3 Working Days |
Payment Term: |
T/T,Paypal,Western Union Etc |
Key Words 1: |
Titanium Tube |
Key Words 2: |
GR2 Titanium Straight Tube |
Key Words 3: |
Titanium Pipe |
Material: |
Pure Titanium |
Grade: |
Grade 2 |
Purity: |
99.5%min |
Length: |
1000mm In Stock |
Surface: |
Pickling Surface |
Application: |
Industrial |
Production Time: |
3 Working Days |
Payment Term: |
T/T,Paypal,Western Union Etc |

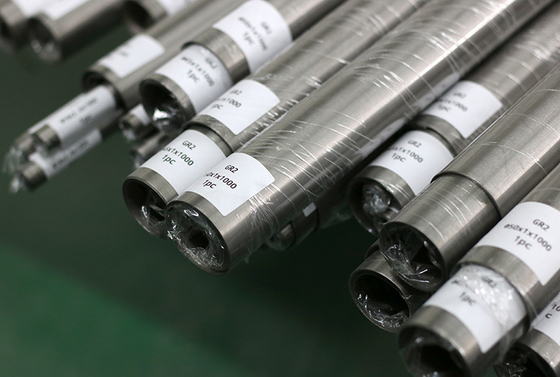

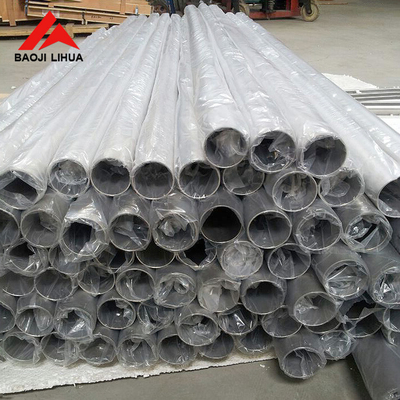

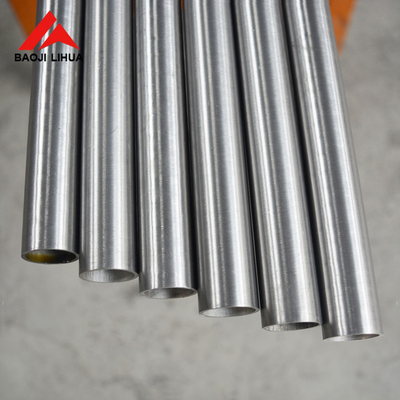

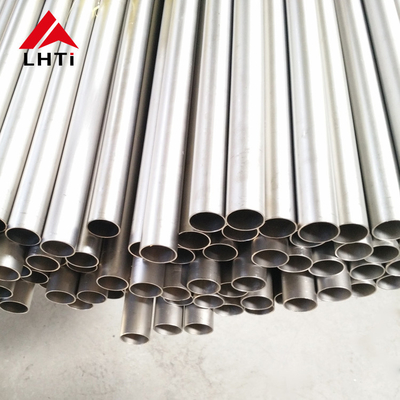

high quality GR2 Titanium Exhaust pipe Dia=38mm/50.8mm/63.5mm/76mm/89mm tube motorcycle Auto exhaust pipe
Material: pure Titanium (Gr2)
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
