1mm Cold Rolled Titanium Sheet Grade 5 Titanium Plate

Basic Information
Place of Origin: Baoji City Shaanxi Province China
Brand Name: LH-Ti
Certification: ISO9001
Model Number: LHTI-005
Minimum Order Quantity: 20kg
Price: USD20-30 per kg
Packaging Details: export wooden box packaging
Delivery Time: 7-30work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5Ton per month
Detail Information
Technique: Cold Rolled Shape: Plate, Sheet
Melting Point: 1678℃ Finishing: Pickling, Machining, Abrasive Blasting
Application: Industry,Aeroplane, Surgical Plant, Etc. Density: About 4.51g/cm3
Standard: ASTM B265 Material: GR1 GR2 GR5
High Light:

Cold Rolled Titanium Sheet


1mm Titanium Plate


Pickling Titanium Sheet

Product Description

titanium sheet 1mm titanium grade 5 plate titanium plate


Titanium plate has excellent comprehensive properties, such as low density (4.51cm³), high specific strength and specific fracture toughness, good fatigue strength and crack growth resistance, good low temperature toughness, excellent corrosion resistance, the highest work of some titanium alloy plates The temperature is 550ºC and is expected to reach 700ºC. Therefore, it has been widely used in aviation, aerospace, chemical, shipbuilding and other industrial sectors and has developed rapidly. The specific strength of titanium alloy is higher than that of other light metals, steel and nickel alloys, and this advantage can be maintained to about 500ºC. Therefore, certain titanium alloy alloy plates are suitable for manufacturing gas turbine components.


Product name:1mm titanium sheet

Material Grades: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr12, Gr23

Standard: ASTM B265/ASME B265 AMS 4911 ASTM F67 ASTM F136

Dimension: Thickness*Width:200-3000mm*Length:500-6000mm

Supply status: Annealed(M)

Package: Carton or plywood case.

MTC: EN10204.3.1 certificate

MOQ : 10kgs

Applications : Petroleum ,chemical industry, Marine etc.



Chemical requirements
  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal



Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
  KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18

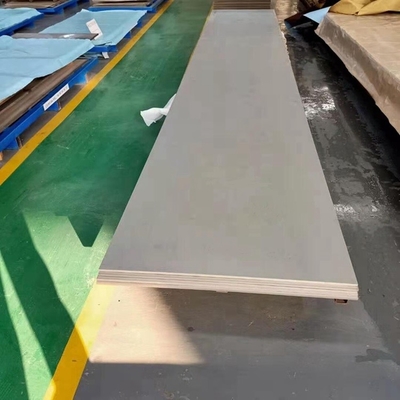

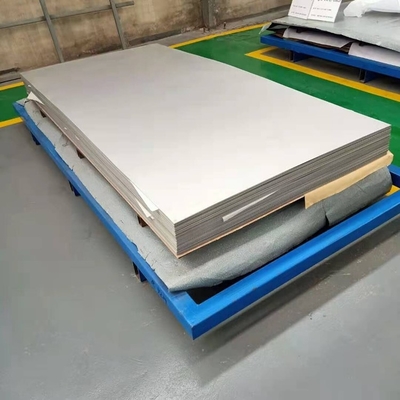

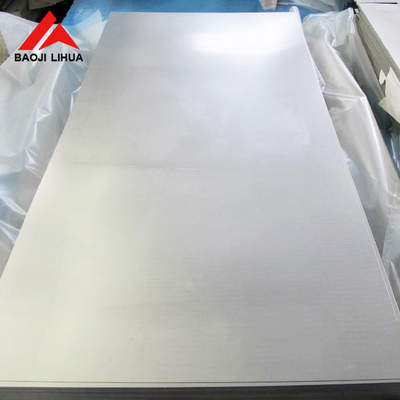

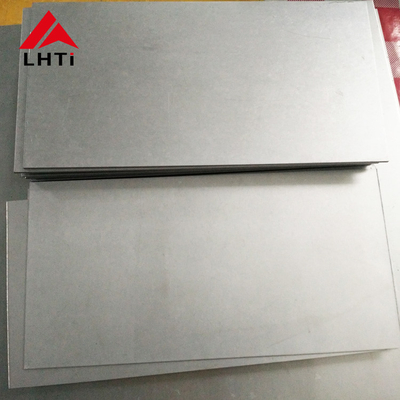

Product picture:


1mm Cold Rolled Titanium Sheet Grade 5 Titanium Plate 01mm Cold Rolled Titanium Sheet Grade 5 Titanium Plate 11mm Cold Rolled Titanium Sheet Grade 5 Titanium Plate 21mm Cold Rolled Titanium Sheet Grade 5 Titanium Plate 3

1mm Cold Rolled Titanium Sheet Grade 5 Titanium Plate 4

1mm Cold Rolled Titanium Sheet Grade 5 Titanium Plate 5

1mm Cold Rolled Titanium Sheet Grade 5 Titanium Plate 6

1mm Cold Rolled Titanium Sheet Grade 5 Titanium Plate 7

1mm Cold Rolled Titanium Sheet Grade 5 Titanium Plate 8

1mm Cold Rolled Titanium Sheet Grade 5 Titanium Plate 9

1mm Cold Rolled Titanium Sheet Grade 5 Titanium Plate 10
