Home > products > Titanium Sheet > Pickled Hot Rolled Titanium Sheet Gr2 Gr5 Titanium Plate ASTM B265

Pickled Hot Rolled Titanium Sheet Gr2 Gr5 Titanium Plate ASTM B265

Product Details

Place of Origin: Shaanxi, China

Brand Name: LH-Ti

Certification: ISO9001:2015

Model Number: ASTM B265 Grade 2 Grade 5 Titanium plate

Payment & Shipping Terms

Minimum Order Quantity: 5 Kg

Price: $20.00~$30.00/kg

Packaging Details: First, packaging with moisture-proof paper; Second, packaging with kraft paper; Third, packaging with foam plastics in all side of plywood case.

Delivery Time: 10-25 work days

Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal

Supply Ability: 10000 Kilogram/Kilograms per Month

Get Best Price
Highlight:

Hot Rolled Thin Titanium Sheet

,

Pickled Titanium Sheet

,

Gr2 Titanium Metal Plate

Width:
1mm~3000mm
Technique:
Hot Rolled
Model Number:
Gr1, Gr2, Gr5, Gr7,Gr9,Gr11
Length:
1m,2m,3m,6m,12m,or As Requied
Surface:
Pickled Bright Polished Satin
Processing Service:
Bending, Welding, Decoiling, Cutting, Punching
Width:
1mm~3000mm
Technique:
Hot Rolled
Model Number:
Gr1, Gr2, Gr5, Gr7,Gr9,Gr11
Length:
1m,2m,3m,6m,12m,or As Requied
Surface:
Pickled Bright Polished Satin
Processing Service:
Bending, Welding, Decoiling, Cutting, Punching
Pickled Hot Rolled Titanium Sheet Gr2 Gr5 Titanium Plate ASTM B265

ASTM B265 Grade 2 Grade 5 Titanium plate / Titanium sheet



Grade 5 titanium is one of the most commonly used alloys in titanium industry, accounting for 50% of the world titanium consumption. Also known as Ti-6Al-4V (or ti6-4), this name refers to its main chemical composition of 90% titanium, 6% aluminum, 4% vanadium, 0.25% (maximum) iron and 0.2% (maximum) oxygen. It has almost the same high corrosion resistance as pure titanium, but has better strength, low elastic modulus, good weldability and heat treatment. The addition of aluminum and vanadium improves the hardness and physical and mechanical properties of the alloy.



1.Based on High intensity,titanium products tensile strength can be up to 180Kg/mm².

2.Titanium and titanium alloy in aviation industry, is called "space metal"; In addition,in the shipbuilding industry, chemical industry, manufacturing machinery parts, telecommunications equipment, hard alloy, etc have increasingly extensive application

3.In addition, because of the titanium alloy with the human body has very good compatibility, so the titanium alloy can also be artificial bone.



Chemical requirements
  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal



Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
  KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18

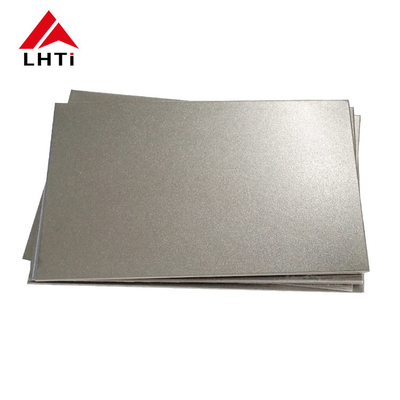

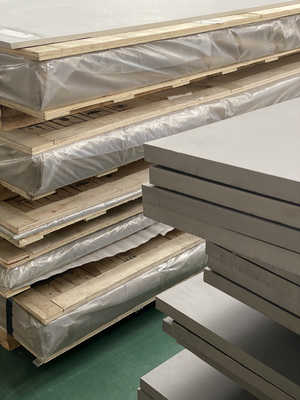

Product picture:



Pickled Hot Rolled Titanium Sheet Gr2 Gr5 Titanium Plate ASTM B265 0

Pickled Hot Rolled Titanium Sheet Gr2 Gr5 Titanium Plate ASTM B265 1Pickled Hot Rolled Titanium Sheet Gr2 Gr5 Titanium Plate ASTM B265 2

Pickled Hot Rolled Titanium Sheet Gr2 Gr5 Titanium Plate ASTM B265 3

Pickled Hot Rolled Titanium Sheet Gr2 Gr5 Titanium Plate ASTM B265 4

Pickled Hot Rolled Titanium Sheet Gr2 Gr5 Titanium Plate ASTM B265 5

Pickled Hot Rolled Titanium Sheet Gr2 Gr5 Titanium Plate ASTM B265 6

Pickled Hot Rolled Titanium Sheet Gr2 Gr5 Titanium Plate ASTM B265 7

Pickled Hot Rolled Titanium Sheet Gr2 Gr5 Titanium Plate ASTM B265 8

Pickled Hot Rolled Titanium Sheet Gr2 Gr5 Titanium Plate ASTM B265 9

Pickled Hot Rolled Titanium Sheet Gr2 Gr5 Titanium Plate ASTM B265 10

Pickled Hot Rolled Titanium Sheet Gr2 Gr5 Titanium Plate ASTM B265 11
