Product Details
Place of Origin: BaoJi Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-01
Payment & Shipping Terms
Minimum Order Quantity: If in stock, sample is available; If not in stock,200kgs of each size
Price: US dollar $23.5/kg--US dollar $35.9./kg
Packaging Details: Each tube with environmental protection bags,outside is standard plywood case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Standard: |
ASTM B338 |
Grade: |
Gr2 Gr7 Gr12 |
OD: |
12.7mm 15.2mm 17.8mm 19mm 25.4mm 38.1mm |
Wall Thickness: |
1.0mm/1.2mm Or As Customized |
Type: |
U Tube |
Purity: |
99.5%min |
Length: |
Max 16 Meter |
Surface: |
Pickling Surface |
Application: |
Heat Exchanger |
Production Time: |
15 Working Days |
Payment Term: |
T/T,Paypal,Western Union Etc |
Key Words: |
Titanium Seamless Tube |
Standard: |
ASTM B338 |
Grade: |
Gr2 Gr7 Gr12 |
OD: |
12.7mm 15.2mm 17.8mm 19mm 25.4mm 38.1mm |
Wall Thickness: |
1.0mm/1.2mm Or As Customized |
Type: |
U Tube |
Purity: |
99.5%min |
Length: |
Max 16 Meter |
Surface: |
Pickling Surface |
Application: |
Heat Exchanger |
Production Time: |
15 Working Days |
Payment Term: |
T/T,Paypal,Western Union Etc |
Key Words: |
Titanium Seamless Tube |
Titanium U-tube Heat Exchanger
Titanium U tubes are increasingly used in various occasions. A common titanium grinding product is titanium tube. Because of its superior corrosion resistance and strength weight ratio, titanium U tube is used in various products. The development of many different alloys has expanded the application of titanium in industry, chemical processing and power generation.
| Standard | ASTM B338, ASME SB338 |
| Regular Grade | Grade 1 Grade 2 |
| Outer Diameter | 12.7mm 15mm 17mm 19mm 25.4mm 31mm etc. |
| Wall thickness | 0.9mm/1.0mm/1.2mm/1.5mm |
| Length | 3000 - 6000mm or other economical lengths |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Form | Straight titanium Pipe, Coiled titanium tube |
| Type | Seamless, ERW, EFW, Welded, Fabricated |
| End | Plain End, Beveled End, Treaded |
| Marking | Standard, Grade, OD, Thickness, Length, Heat No. (Or as per customer's request.) |
| Application | Oil Tube, Gas Tube, Fluid Tube, Boiler and Heat exchanger |
| Value Added Service |
Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Test Certificate | Mill Test Certificate EN 10204/3.1,TPI Report, EN10204/3.2 |

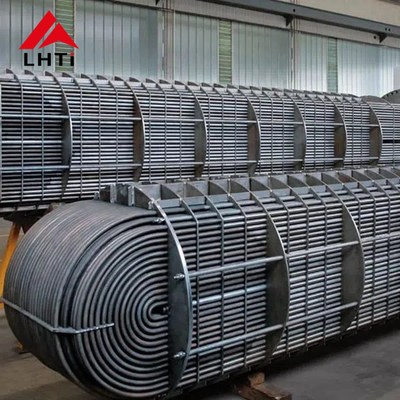

U-shaped tube heat exchanger, is a shell and tube heat exchanger, it is composed of tube-plate, shell, tube bundle and other parts.
Under the same diameter, the heat transfer area of u-tube heat exchanger is the largest. It has the advantages of simple structure, compact, high sealing performance, easy maintenance and cleaning, minimum metal consumption and lowest cost under high temperature and high pressure; U-tube heat exchanger has only one tube plate, good thermal compensation performance, strong bearing capacity, suitable for high temperature and high pressure operating conditions.
Name: Titanium U-tube heat exchanger
Material: Gr1 Gr2 Gr7 Gr12 titanium
Structure: tube box, barrel, head, heat exchange tube, etc
Advantages: simple structure, low cost
Disadvantages: High rejection rate
Application: Suitable for high temperature and high pressure corrosive fluid
| Grade | Fe max | O max | N max | C max | H max | Pd | Al | V | Mo | Ni | Elong'n |
Σb (Mpa) |
σr0.2 (Mpa) |
| No | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | % | MPa | MPa |
| Grade 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | 24 | 240 | 140 | |||||
| Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 20 | 400 | 275 | |||||
| Grade 7 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0,12-0,25 | 20 | 400 | 275 | ||||
| Grade 12 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0.3 | 0.8 | 18 | 460 | 300 |

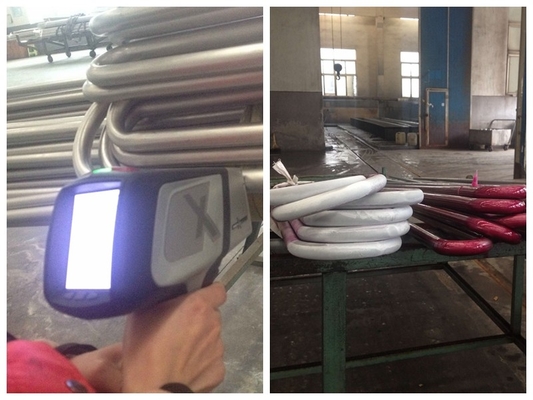

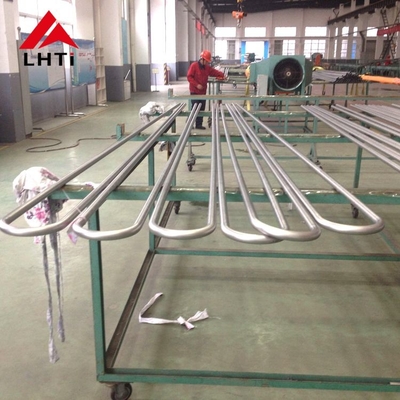

Detailed images:
The other products we can manufacture:
Packing and shipping:
