Product Details
Place of Origin: BaoJi Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-01
Payment & Shipping Terms
Minimum Order Quantity: If in stock, sample is available; If not in stock,200kgs of each size
Price: US dollar $220.5/kg--US dollar $338.5/kg
Packaging Details: Each tube with environmental protection bags,outside is standard plywood case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Standard: |
ASTM B338 ASTM B861 ASTM B862 |
Grade: |
Gr7 |
OD: |
5-914mm |
Wall Thickness: |
0.5-10mm |
Material: |
Pure Titanium |
Length: |
Max 16 Meter |
Surface: |
Pickling Surface |
Application: |
Heat Exchanger |
Production Time: |
15 Working Days |
Payment Term: |
T/T,Paypal,Western Union Etc |
Key Words: |
Titanium Seamless Tube |
Standard: |
ASTM B338 ASTM B861 ASTM B862 |
Grade: |
Gr7 |
OD: |
5-914mm |
Wall Thickness: |
0.5-10mm |
Material: |
Pure Titanium |
Length: |
Max 16 Meter |
Surface: |
Pickling Surface |
Application: |
Heat Exchanger |
Production Time: |
15 Working Days |
Payment Term: |
T/T,Paypal,Western Union Etc |
Key Words: |
Titanium Seamless Tube |
Grade 7 Titanium Tubes
Product name: Grade 7 titanium tubes
Standard:ASTM B338 ASTM B861 ASTM B862
Material:Titanium Gr7
Diameter:5-914mm
Wall thickness:0.5-10mm
Length:Max 16000mm
Surface:Pickling surface/Polished
Type:Seamless, welded
Application:Heat Exchanger, chemical industry etc.
Technique:Rolled
Dimension and Tolerance of titanium tube
|
Outside diameter, in.(mm) |
Diameter tolerance, in.(mm) |
Permissible variations , wall thinckness, t, % in.(mm) |
| <1 (25.4) | ±0.004( ± 0.012) | ±10 |
| 1-1½(25.4-38.1) | ±0.005( ±0.127 ) | ±10 |
| 1½-2(38.1-50.8) | ±0.006( ± 0.152) | ±10 |
| 2-2½(50.8-63.5) | ±0.007( ± 0.178) | ±10 |
| 2½-3½(63.5-88.9) | ±0.010( ± 0.254) | ±10 |
| Grade 7 (Ti-0.2Pd) titanium tube | ||||
| Chemical compositions(weight%,<=) | ||||
| Pd | Al | V | Fe | C |
| 0.12-0.25 | ---- | ---- | 0.30 | 0.08 |
| N | H | O | Other(total) | Ti |
| 0.05 | 0.015 | 0.2 | 0.4 | Remainder |
| Physical properties(>=) | ||||
|
Σb Tensile Strength (Mpa) |
σr0.2 Yield Strength (Mpa) |
δL0+50mm Elongation (%) |
ψ Reduction of area (%) |
|
| 370 | 250 | 20 | 25 | |
The density of titanium alloy is generally about 4.51g/ cubic centimeter, only 60 of steel, the strength of pure titanium is close to the strength of ordinary steel, some high strength titanium alloy exceeds the strength of many alloy structural steel. Therefore, the specific strength (strength/density) of titanium alloy is much higher than that of other metal structural materials, as shown in Table 7-1. It can produce components with high unit strength, good rigidity and light weight. At present, titanium alloy is used for engine components, skeleton, skin, fasteners and landing gear.
High thermal strength
The use temperature is several hundred degrees higher than aluminum alloy, can still maintain the required strength at moderate temperature, can work for a long time at 450500 temperature these two titanium alloys still have high specific strength in the range of 150500, and aluminum alloy at 150 than the strength decreased significantly. Titanium alloys operate at temperatures up to 500, while aluminum alloys operate below 200.
Good resistance to corrosion
The corrosion resistance of titanium alloy is much better than that of stainless steel when working in humid atmosphere and seawater medium. Resistance to pitting corrosion, acid corrosion, stress corrosion is particularly strong; Excellent corrosion resistance to alkali, chloride, chlorine organic articles, nitric acid, sulfuric acid and so on. But titanium has poor corrosion resistance to reducing oxygen and chromite medium.
Good low temperature performance
Titanium alloy can keep its mechanical properties at low temperature and ultra low temperature. Titanium alloys with good low temperature performance and very low gap elements, such as TA7, can maintain certain plasticity at -253. Therefore, titanium alloy is also an important low temperature structural material.

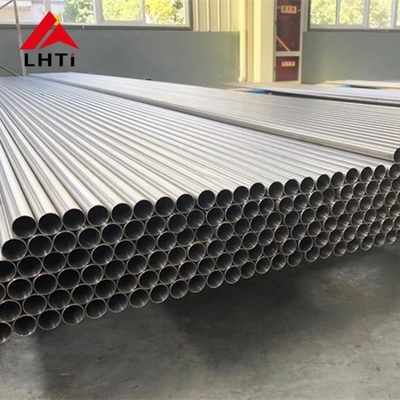

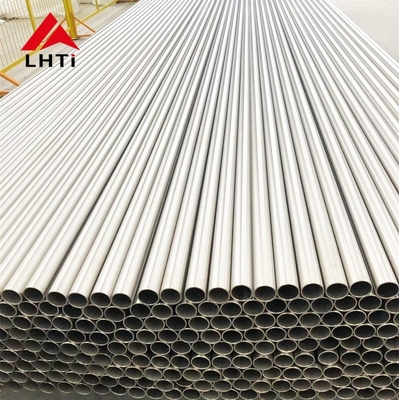

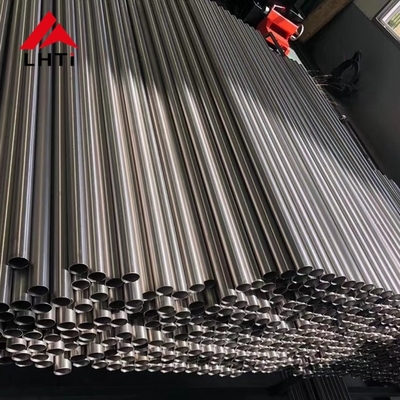

Detailed images:
Titanium tubes Quality inspections:
UT ,PT ,Hydrodtatic test, Eddy current inspection,Chemical composition inspection,Dimention inspection,
Tensile testing, Radiographic inspection,Thickness inspection,PMI inspection
Titanium pipes / titanium tubes used in heat exchanger:
