|Place of Origin:||BaoJi City Shaanxi China|
|Minimum Order Quantity:||If in stock, sample is available; If not in stock,100kgs of each size|
|Price:||US dollar $23/kg-US dollar $31/kg|
|Packaging Details:||Each tube with environmental protection bags,outside is standard plywood case|
|Delivery Time:||15 working days|
|Payment Terms:||L/C, D/P, T/T, Western Union,Paypal.etc|
|Supply Ability:||5 tons per month|
|Key Words 1:||Factory Gr2 Gr1 Gr5 Gr7 Gr9 Gr12 Gr23 Titanium Pipe Prices Seamless Tube From Factory||Key Words 2:||20mm GR2 Titanium Tube|
|Key Words 3:||Titanium Heat Exchanger Tube||Material:||Pure Titanium|
|Length:||Max 12 Meter||Surface:||Pickling Surface|
|Application:||Heat Exchanger||Production Time:||15 Working Days|
|Payment Term:||T/T,Paypal,Western Union Etc|

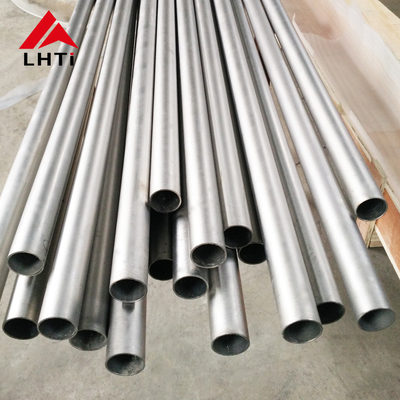

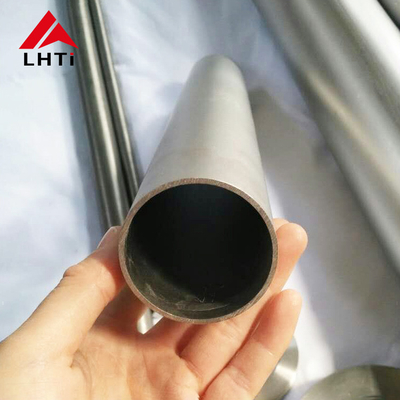

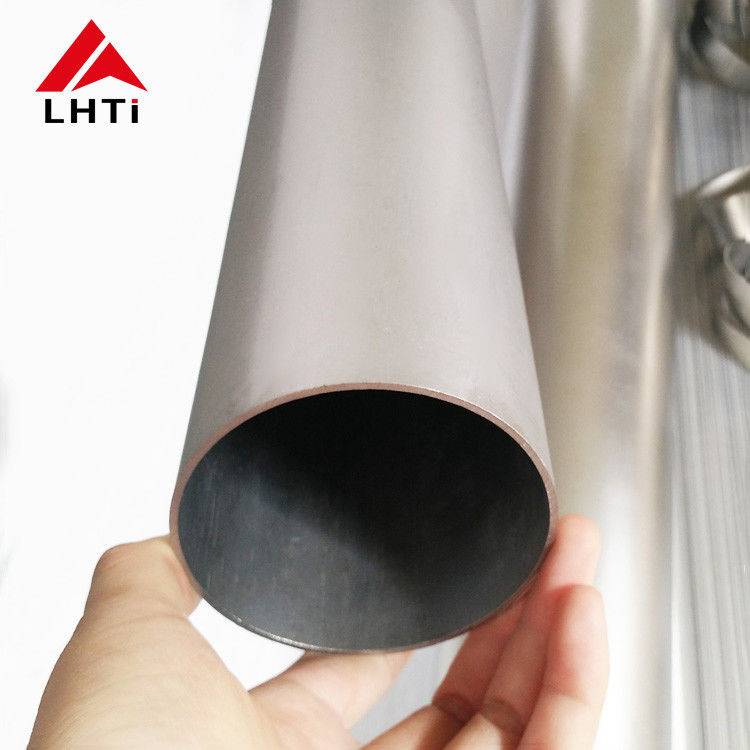

20mm Seamless Titanium Round Tube,
Pickling Seamless Titanium Tube,
Titanium Tube Gr7
Gr2 Gr1 Gr5 Gr7 Gr9 Gr12 Gr23 Titanium Pipe Prices Seamless Tube From Factory
Titanium Tube Information
|Name||Pure Titanium & Titanium Alloy Tube /Pipe/Tubing|
|Tube Shape||Round Square Flat Coil|
|Wall Thickness||1.2mm or as customized|
|Length||Max 12 meter|
|End||Plain End, Beveled End, Threaded|
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report---TUV,BV,SGS etc
Off-Shore Oil Drilling Companies
Sea Water Equipment
Pulp and Paper Industry
|Grade||Tensile Strength(min)||Yeild Strength(0.2% offset))||Elongation(%)|
|Grade||N||C||H||Fe||O||Al||V||Ti||Other , max|
Titanium tube Size List
1). The titanium tube has plasticity. The elongation of high purity titanium tube can reach 50 ~ 60% and the reduction of the section can reach 70 ~ 80%. Although the strength of high purity titanium tubes is low, the mechanical properties of pure industrial titanium can be significantly enhanced by a small number of impurities and the addition of alloying elements, so that its strength can be compared with that of high strength. This means that the industrial pure titanium pipe, as long as there is a small number of clearance impurities and other metal impurities, it can be made both with high strength, and proper plasticity.
2). The specific strength (strength to weight ratio) of the industrial pure titanium tube is very high in the metal structure materials, its strength, and steel, but its weight is only 57% of the steel.
3). The heat resistance of the titanium tube is very strong, and it can maintain good strength and stability in the atmosphere of 500℃.
4). Titanium tube also has good low-temperature resistance, even at -250℃ ultra-low temperature, it still has a high impact strength, can withstand high pressure and vibration.
5). Strong corrosion resistance, which is due to its strong affinity to oxygen, can generate a dense oxide film on its surface, which can protect titanium from medium corrosion. Therefore, titanium has good stability in acid, alkaline, neutral salt solution and oxidizing medium, better than existing stainless steel and other non-ferrous metals corrosion resistance.
|OD (mm)||WT (mm)||OD (mm)||WT (mm)||OD (mm)||WT (mm)|
Titanium tubes have the feature of lightweight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube-type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condenser, evaporator, and transmission pipeline. Many nuclear power industries use titanium tubes as the unit standard tubes
Titanium Pipe to Oil & Gas, Refineries, Fertilizers, Heat-Exchangers, Paper & Pulp, Pharmaceuticals, Chemicals, Water Treatment, Dairy, Sugar & Food Processing, Construction, Mining, Shipbuilding, Offshore, Defence, Ports, Railway, Nuclear Power, Power Plant, Cement
Titanium Tube Process
PVC packing, carton packing, or as customer request woodeng case.
ASTM B861 Titanium Alloy Seamless Pipe have to arrive safely, quickly and without damages at their destination in any part of the world. Packing is also an essential part of quality assurance.
LHTI is one of the professional titanium mill product manufactuers with Foreign Trade Department,and certified to ISO 9001:2008, we are be able to supply titanium products with full range of sizes in all grades under ASTM,ANSI,DIN,JIS with high quality and competitiveprice. Seamless titanium tube.Our ISO certificate is your order's premise.You can trust us.power and chemical plant,autumotive components,sports,marine corrosion.
We still have Titanium flange,titanium bends,titanium Pipe fittings etc.More details please feel free contact us.
