Home > products > Titanium Tube > 10" SCH80S Annealed Titanium Tube GR12 ASTM B363 WPT12 / W ASME B36.19M

10" SCH80S Annealed Titanium Tube GR12 ASTM B363 WPT12 / W ASME B36.19M

Product Details

Place of Origin: Baoji, Shaaxi, China

Brand Name: LHTi

Certification: ISO9001:2015;BV;TUV; SGS

Model Number: Gr12

Payment & Shipping Terms

Minimum Order Quantity: 200 kgs

Price: USD35-45800 per kg

Packaging Details: Standard export packaging: soft foam protection inside, plywood outside

Delivery Time: 7-20 work days

Payment Terms: Western Union, T/T, D/P, D/A, L/C

Supply Ability: 200000 kgs per month

Get Best Price
Highlight:

SCH80S Titanium Tube

,

Annealed Titanium Tube

,

10" Titanium Seamless Tube

Porudct Name:
Gr12 Titanium Pipe
Technology:
Cold Rolled, Hot Rolled
Situation:
Annealed
Surface:
Polished, Acid Washing
Regular Size:
10" SCH80S
Ultimate Strength (≥ MPa)::
790
Outer Diameter:
10" SCH80S
Technique:
Welded
Product Name:
Titanium Tube
Shape:
Round Shape
Porudct Name:
Gr12 Titanium Pipe
Technology:
Cold Rolled, Hot Rolled
Situation:
Annealed
Surface:
Polished, Acid Washing
Regular Size:
10" SCH80S
Ultimate Strength (≥ MPa)::
790
Outer Diameter:
10" SCH80S
Technique:
Welded
Product Name:
Titanium Tube
Shape:
Round Shape
10" SCH80S Annealed Titanium Tube GR12 ASTM B363 WPT12 / W ASME B36.19M

Pipe 10" SCH80S TITANIUM GR12 ASTM B363 WPT12/W ASME B36.19M

1. Specification



Mechanical Properties:



1.Chemical requirements
Grade N(≤) C(≤) H(≤) Fe(≤) O(≤) Al(≤) V(≤) Pd(≤) Mo(≤) Ni(≤) Ti
GR1 0.03 0.08 0.015 0.2 0.18 / / / / / bal
GR2 0.03 0.08 0.015 0.3 0.25 / / / / / bal
GR3 0.05 0.08 0.015 0.3 0.35 / / / / / bal
GR4 0.05 0.08 0.015 0.2 0.4 / / / / / bal
GR5 0.05 0.08 0.015 0.4 0.2 5.5~6.75 3.5~4.5 / / / bal
GR7 0.03 0.08 0.015 0.3 0.25 / / 0.12~0.25 / / bal
GR9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
GR12 0.03 0.08 0.015 0.3 0.25 / / / 0.2~0.4 0.6~0.9 bal
GR23 0.05 0.08 0.012 0.25 0.13 5.5~6.5 3.5~4.5       bal



2.Tensile requirements
Grade Tensil strength(≥) Yeild strength(≥)) Elongation(≥)%)
ksi Mpa ksi Mpa
GR1 35 240 20 138 24
GR2 50 345 40 275 20
GR3 65 450 55 380 18
GR4 80 550 70 483 15
GR5 130 895 120 828 10
GR7 50 345 40 275 20
GR9 90 620 70 483 15
GR12 70 483 20 345 18
GR23 120 828 110 760 10

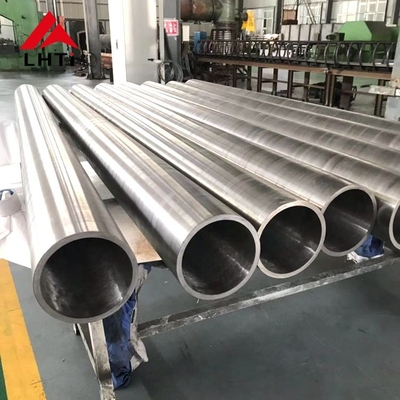

2.Detailed pictures:



10" SCH80S Annealed Titanium Tube GR12 ASTM B363 WPT12 / W ASME B36.19M 0

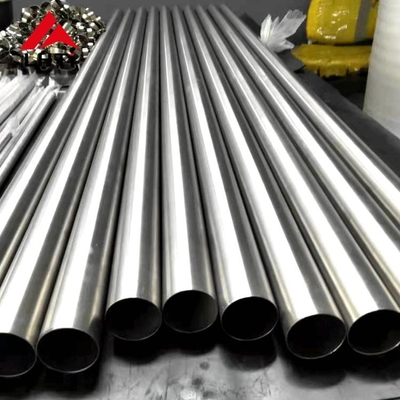

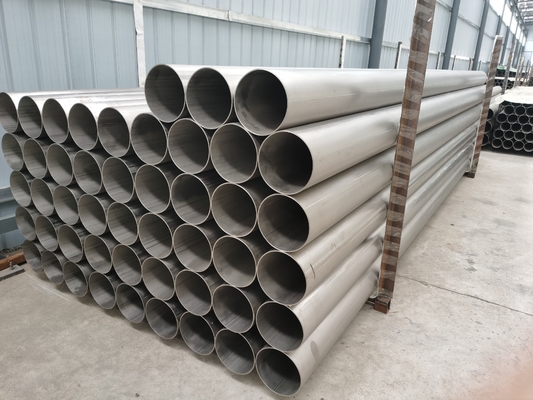

3.Inspection pictures:
10" SCH80S Annealed Titanium Tube GR12 ASTM B363 WPT12 / W ASME B36.19M 1
10" SCH80S Annealed Titanium Tube GR12 ASTM B363 WPT12 / W ASME B36.19M 2





Thickness 0.8-36mm
Width 650-2000mm
Length 0.8-6 m
Application Auto, turbines, blades, powder and engines,etc
Feature High corrosion resistance, low density, good thermal stability
Surface Bright, Polished, Pickling, Acid cleaning, Sandblasting
Quality and test Hardness test, Bending test, Hydrostatic etc.
Surface Polished
Trade Term FOB CIF EXW ,etc
Payment L/C,T/T,Western Union,MoneyGram
Delivery 7-25days or according to the product



 10" SCH80S Annealed Titanium Tube GR12 ASTM B363 WPT12 / W ASME B36.19M 3

10" SCH80S Annealed Titanium Tube GR12 ASTM B363 WPT12 / W ASME B36.19M 4
