Spiral Double Titanium Tube Heat Exchangers Coil Evaporator

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS
Model Number: titanium coil
Minimum Order Quantity: 5pcs
Packaging Details: Plywood box with soft foam for additional protection
Delivery Time: 12-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 200000 kg per month
Detail Information
Materials: Factory Direct-Sales Coiled Double Pipe Heat Exchangers Titaium Spiral Tube Titanium Coil Evaporator Outer Diameter: 6~168mm
Length: <15000mm Processing Service: Bending, Cutting
Wall Thickness: 0.5~10mm Inside Diameter: 0.5~100mm
Processing: Seamless MOQ: 50
High Light:

Titanium Spiral Coil

,

Heat Exchangers Titanium Spiral Tube

,

Coiled Double Titanium Tube


Product Description

Factory Direct-Sales Coiled Double Pipe Heat Exchangers Titaium Spiral Tube Titanium Coil Evaporator



Our Company



As a leading manufacturer of titanium products for over 16 years, Baoji Lihua has exported titanium tube to many countries, including the US, India and Korea etc. The quality of our products is widely recognized. So you should have confidence in our company.



1. Product Feature



Titanium tubes have the feature of light weight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condensator, evaporator and transmission pipeline. Many nuclear power industry ues titanium tubes as the unit standard tube



2.Quick Details



Place of Origin:

Shaanxi, China

Outer Diameter

6~168mm

Material

Pure Titanium

Standard

ASTM B338, ASTM B337, ASTM B861, ASTM B862

Application

Heat exchanger, condenser pipe, Heat exchanger, condenser

Technique

Seamless, Cold Roll & Annealed

Grade

Grade1 Grade2, Gr1 Gr2

Wall Thickness

0.5~10mm

Surface

Polished surface

Dimension

Custom-made size available

MOQ

50

Key Words

titanium tube coil for heat exchanger

DIMENSION (MM) OD6~168*WT0.5~10.0×L1000~15000mm (Cold Roll & Seamless tube)





3.Supply Ability



Supply Ability    30 Ton/Tons per Month



4.Packaging & Delivery



Packaging Details: plastic bag inside, wooden box outside.



Port:  Shanghai, Tianjin



Leading time:





Quantity(Kilograms)

1 - 1000 >1000
Est. Time(days) 30 To be negotiated



5.Pure titanium tube coil for heat exchanger pipe


1. Chemical requirements

Grade N C H Fe O Ti
Gr1 0.03 0.08 0.015 0.20 0.18 bal
Gr2 0.03 0.05 0.015 0.30 0.25 bal



2. Mechanical Properties



Grade Tensile strength (δ5MPa) Residual elongation stress (δ0.2MPa) Elongation δ (%)
Gr1 ≥240 140~310 ≥24
Gr2 ≥400 275~450 ≥20



6.Applications





Heat exchanger; Condenser;



Coiling pipe; petroleum pipeline;



Sea farming; electroplating equipment;



Fluid Transportation Piping


7.Products Details

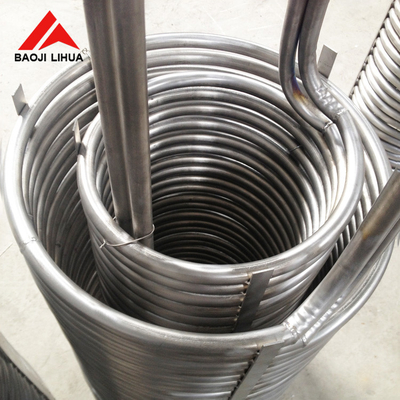

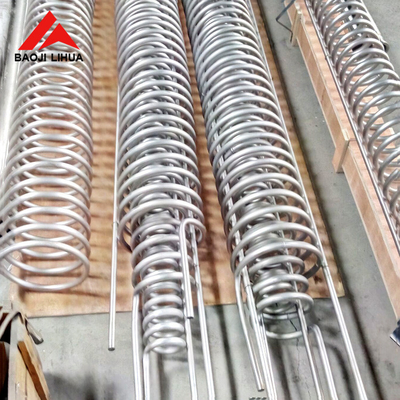

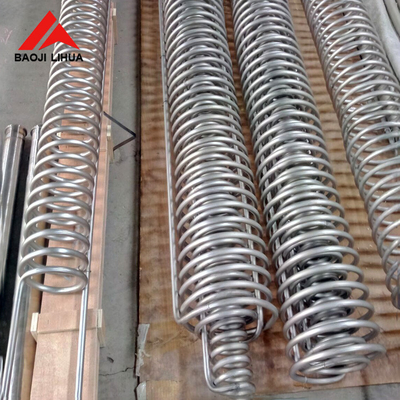

Spiral Double Titanium Tube Heat Exchangers Coil Evaporator 0
Spiral Double Titanium Tube Heat Exchangers Coil Evaporator 1
Spiral Double Titanium Tube Heat Exchangers Coil Evaporator 2
Spiral Double Titanium Tube Heat Exchangers Coil Evaporator 3
Spiral Double Titanium Tube Heat Exchangers Coil Evaporator 4
Spiral Double Titanium Tube Heat Exchangers Coil Evaporator 5

Spiral Double Titanium Tube Heat Exchangers Coil Evaporator 6



We need below information to quote for you:



1. What is the dimension of the titanium pipe? Out diameter? Wall thickness? Total length?
2. Material Grade? Gr1 or Gr2? Or some other Grade?

3. Produce Standard?

4. Application?

5. Quantity?

6. Other requirements?



If you have any interests, please don't hesitate to inquiry.

We welcome the sample orders.
