Gr2 Seamless Titanium Tube Welding 20mm ASTM B338

Product Details

Place of Origin: BaoJi Shaanxi China

Brand Name: LHTI

Certification: ISO9001

Model Number: LH-01

Payment & Shipping Terms

Minimum Order Quantity: If in stock, sample is available; If not in stock,100kgs of each size

Price: US dollar $23/kg-US dollar $31/kg

Packaging Details: Each tube with environmental protection bags,outside is standard plywood case

Delivery Time: 15 working days

Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc

Supply Ability: 5 tons per month

Get Best Price
Highlight:

Seamless Titanium Welding Tube

,

Welding Seamless Titanium Pipe

,

Gr2 Pure Titanium Tube

Key Words 1:
Factory Direct-Sales ASTM B338 20mm Titanium Welding Pipes Gr2 Grade 2 Grade 5 Titanium Pipe Seamless Tube Suppliers
Key Words 2:
20mm GR2 Titanium Tube
Key Words 3:
Titanium Heat Exchanger Tube
Material:
Pure Titanium
Grade:
Grade 2
Purity:
99.5%min
Length:
Max 12 Meter
Surface:
Pickling Surface
Application:
Heat Exchanger
Production Time:
15 Working Days
Payment Term:
T/T,Paypal,Western Union Etc
Key Words 1:
Factory Direct-Sales ASTM B338 20mm Titanium Welding Pipes Gr2 Grade 2 Grade 5 Titanium Pipe Seamless Tube Suppliers
Key Words 2:
20mm GR2 Titanium Tube
Key Words 3:
Titanium Heat Exchanger Tube
Material:
Pure Titanium
Grade:
Grade 2
Purity:
99.5%min
Length:
Max 12 Meter
Surface:
Pickling Surface
Application:
Heat Exchanger
Production Time:
15 Working Days
Payment Term:
T/T,Paypal,Western Union Etc
Gr2 Seamless Titanium Tube Welding 20mm ASTM B338



Factory Direct-Sales ASTM B338 20mm Titanium welding Pipes gr2 Grade 2 grade 5 Titanium Pipe Seamless Tube suppliers



Titanium Tube Information



Name Pure Titanium & Titanium Alloy Tube /Pipe/Tubing
Tube Shape Round Square Flat Coil
Material Gr1,Gr2,Gr7,Gr12.
Standard ASTM SB338
Type

Seamless

OD 20 mm
Wall Thickness 1.2mm or as customized
Length Max 12 meter
End Plain End, Beveled End, Threaded
Certificate EN 10204/3.1B,
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report---TUV,BV,SGS etc
Application

Off-Shore Oil Drilling Companies

Power Generation

Petrochemicals

Gas Processing

Specialty Chemicals

Pharmaceuticals

Pharmaceutical Equipment

Chemical Equipment

Sea Water Equipment

Heat Exchangers

Condensers

Pulp and Paper Industry



Grade Tensile Strength(min) Yeild Strength(0.2% offset)) Elongation(%)
ksi MPa Min Max
Ksi Mpa Ksi Mpa
1 35 240 25 170 45 310 24
2 50 345 40 275 65 450 20
7 50 345 40 275 65 450 20
9 90 620 70 483 - - 15C
12 70 483 50 345 - - 18C



Grade N C H Fe O Al V Ti Other , max
1 0.03 0.08 0.015 0.20 0.18 / / Bal 0.4
2 0.03 0.08 0.015 0.30 0.25 / / Bal 0.4
7 0.03 0.08 0.015 0.30 0.25 / / Bal 0.4
9 0.03 0.08 0.015 0.25 0.15 2.5-3.5 2.0-3.0 Bal 0.4
12 0.03 0.08 0.015 0.30 0.25 / / Bal 0.4

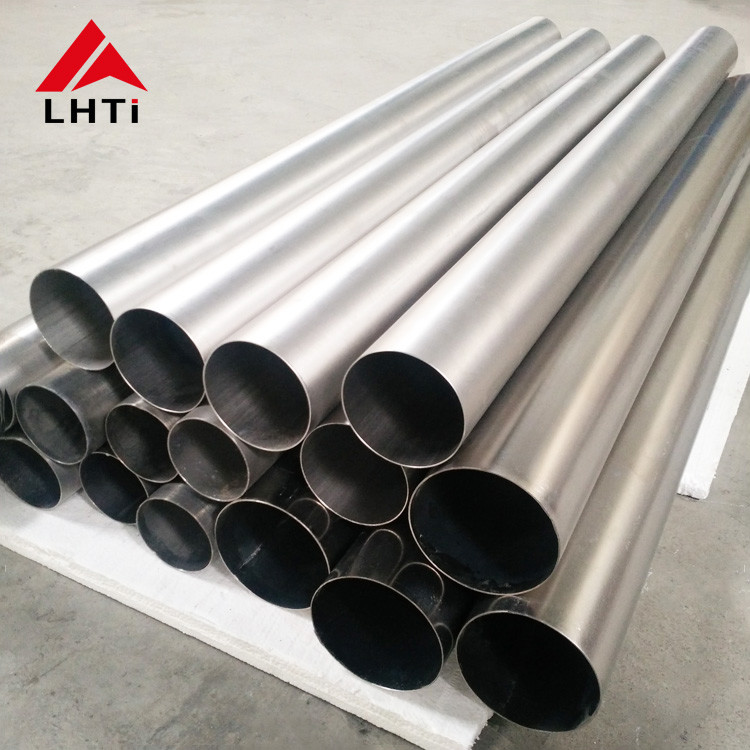

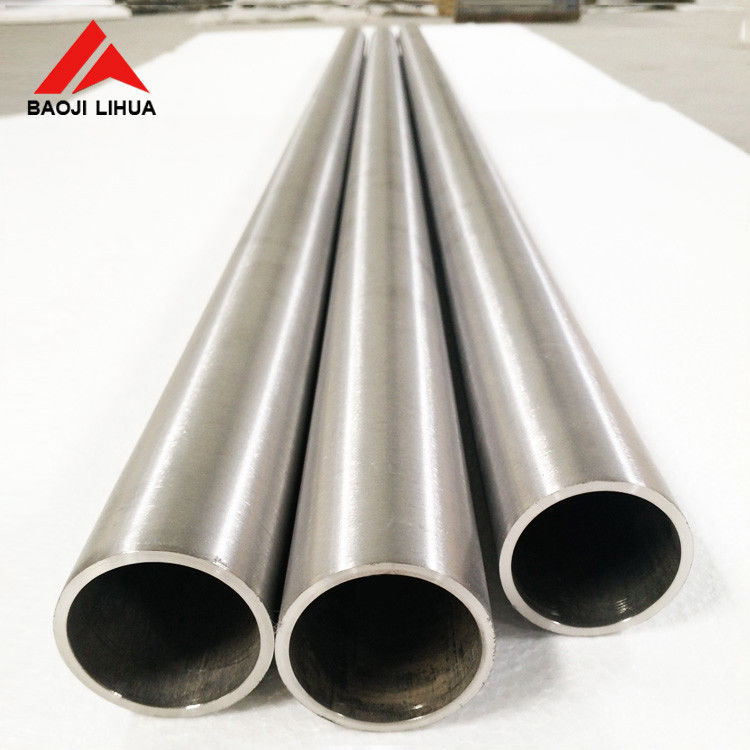

Detailed images:

Gr2 Seamless Titanium Tube Welding 20mm ASTM B338 0Gr2 Seamless Titanium Tube Welding 20mm ASTM B338 1 Gr2 Seamless Titanium Tube Welding 20mm ASTM B338 2Gr2 Seamless Titanium Tube Welding 20mm ASTM B338 3





Titanium tube Size List


1). The titanium tube has plasticity. The elongation of high purity titanium tube can reach 50 ~ 60% and the reduction of the section can reach 70 ~ 80%. Although the strength of high purity titanium tubes is low, the mechanical properties of pure industrial titanium can be significantly enhanced by a small number of impurities and the addition of alloying elements, so that its strength can be compared with that of high strength. This means that the industrial pure titanium pipe, as long as there is a small number of clearance impurities and other metal impurities, it can be made both with high strength, and proper plasticity.

2). The specific strength (strength to weight ratio) of the industrial pure titanium tube is very high in the metal structure materials, its strength, and steel, but its weight is only 57% of the steel.

3). The heat resistance of the titanium tube is very strong, and it can maintain good strength and stability in the atmosphere of 500℃.

4). Titanium tube also has good low-temperature resistance, even at -250℃ ultra-low temperature, it still has a high impact strength, can withstand high pressure and vibration.

5). Strong corrosion resistance, which is due to its strong affinity to oxygen, can generate a dense oxide film on its surface, which can protect titanium from medium corrosion. Therefore, titanium has good stability in acid, alkaline, neutral salt solution and oxidizing medium, better than existing stainless steel and other non-ferrous metals corrosion resistance.

Gr2 Seamless Titanium Tube Welding 20mm ASTM B338 4



OD (mm) WT (mm) OD (mm) WT (mm) OD (mm) WT (mm)
3.3 0.25 24 0.7 33.4 4.55
4 0.25 25 0.5 38 1.2
4.9 0.3 25 0.7 38.1 1.24
6.35 0.889 25 1.5 40 0.5
12.7 0.8 25 2 45 1.5
15.88 0.5 25 2.2 45 2
15.88 0.71 25.4 0.89 48.26 1.65
19 0.508 25.4 1.07 48.3 5.08
19 0.711 25.4 1.473 50.8 0.7
19 0.9 25.4 2.108 50.8 0.889
19 1.24 26.67 2.11 50.8 0.9
19.05 0.56 26.67 3.912 51 1.5
19.05 0.9 31.75 0.7112 56 0.8
19.05 1.24 31.75 0.889 60.3 1.5
19.05 1.65 31.75 1 60.325 0.889
19.05 3 31.8 0.89 62 2
21.34 2.11 33.4 2.77 89 2
24 0.5 33.4 3.38 114.3 3.05



Titanium tubes have the feature of lightweight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube-type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condenser, evaporator, and transmission pipeline. Many nuclear power industries use titanium tubes as the unit standard tubes



Titanium Pipe to Oil & Gas, Refineries, Fertilizers, Heat-Exchangers, Paper & Pulp, Pharmaceuticals, Chemicals, Water Treatment, Dairy, Sugar & Food Processing, Construction, Mining, Shipbuilding, Offshore, Defence, Ports, Railway, Nuclear Power, Power Plant, Cement

Gr2 Seamless Titanium Tube Welding 20mm ASTM B338 5



Titanium Tube Process

Gr2 Seamless Titanium Tube Welding 20mm ASTM B338 6

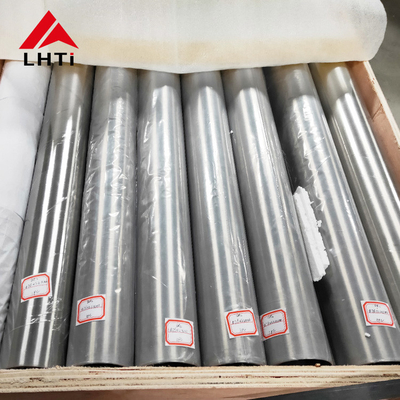

Packing details:
PVC packing, carton packing, or as customer request woodeng case.
ASTM B861 Titanium Alloy Seamless Pipe have to arrive safely, quickly and without damages at their destination in any part of the world. Packing is also an essential part of quality assurance.



Gr2 Seamless Titanium Tube Welding 20mm ASTM B338 7



LHTI is one of the professional titanium mill product manufactuers with Foreign Trade Department,and certified to ISO 9001:2008, we are be able to supply titanium products with full range of sizes in all grades under ASTM,ANSI,DIN,JIS with high quality and competitiveprice. Seamless titanium tube.Our ISO certificate is your order's premise.You can trust us.power and chemical plant,autumotive components,sports,marine corrosion.



We still have Titanium flange,titanium bends,titanium Pipe fittings etc.More details please feel free contact us.
