| Place of Origin: | BaoJi Shaanxi China |
|---|---|
| Brand Name: | LHTI |
| Certification: | ISO9001 |
| Model Number: | LH-01 |
| Minimum Order Quantity: | 10kgs of each size |
| Packaging Details: | Each tube with environmental protection bags,outside is standard plywood case |
| Delivery Time: | 15-25 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union,Paypal.etc |
| Supply Ability: | 5 tons per month |
| Key Words 1: | Titanium Welded Tube | Key Words 2: | Titanium Tube Gr1 Gr2 Gr7 Gr12 |
|---|---|---|---|
| Material: | Pure Titanium , Titanium Alloy | Standard: | ASTM/ASME B 338 & ASTM/ASME B862 |
| Grade: | Grade 1 Grade 2 Grade 7 Grade 12 Etc. | Length: | Max 12 Meter |
| Surface: | Pickling Surface | Payment Term: | T/T,L/C Etc |
| Application: | Chemical Industry | ||
| High Light: | Gr12 Titanium Welded Pipe,ASTM B862 Titanium Welded Pipe,12m Pickling Titanium Welded Pipe |
||
ASTM B862 Gr2 Gr7 Gr12 titanium welded pipe piping with length = 6000mm price per kg
Titanium welded tube is light but with high strength. The most important feature is high corrosion-resistance.
Titanium welded tubes are widely used in water engineering, petrochemical industry, chemical industry, power industry, and agricultural irrigation and urban construction.
For liquid transportation: water supply and drainage.
For gas delivery: gas, steam, liquefied petroleum gas.
For structural purposes: used as piling pipes, bridges, piers, roads, building structures, pipes, etc
Welded titanium tubing is supplied to the latest revisions of ASTM/ASME B 338 & ASTM/ASME B862 specifications, UT and Eddy-Current Tested. Please inquire for exact dimensional capabilities based on O.D. and Wall Requirements.
|
Product Name |
Titanium welded tube/ pipe |
|
|
Standard |
ASTM/ASME B 338 & ASTM/ASME B862 |
|
|
Material |
Pure titanium |
Gr1 Gr2 etc. |
|
Alloy titanium |
Gr.7(Ti-0.2Pd) Gr.9(Ti-3Al2.5V) Gr.11(Ti-0.2Pd ) Gr.12(Ti-0.3Mo-0.8Ni) Gr.16(Ti-0.05Pd ) |
|
|
Size |
OD>114.3mm,length is 12000mm(Max) |
|
|
Type |
Round, square, coiling |
|
|
Technique |
Hot forging, hot rolled, cold rolled |
|
|
Goods Condition |
Annealed |
|
|
Surface |
Mainly is sand blasting, the Polishing and pickling is also do as customers requested. |
|
|
|
Fe max |
O max |
N max |
C max |
H max |
Pd |
Al |
V |
Mo |
Ni |
Elong'n |
Rp 0.2 |
Rm |
|
No |
wt% |
wt% |
wt% |
wt% |
wt% |
wt% |
wt% |
wt% |
wt% |
wt% |
% |
MPa |
MPa |
|
Grade 1 |
0.2 |
0.18 |
0.03 |
0.1 |
0.015 |
|
|
|
|
|
24 |
170-310 |
240 |
|
Grade 2 |
0.3 |
0.25 |
0.03 |
0.1 |
0.015 |
|
|
|
|
|
20 |
275-450 |
345-480 |
|
Grade 7 |
0.3 |
0.25 |
0.03 |
0.1 |
0.015 |
0,12-0,25 |
|
|
|
|
20 |
275-450** |
345 |
|
Grade 9 |
0.25 |
0.15 |
0.02 |
0.05 |
0.015 |
|
2,5-3,05 |
|
|
|
15 |
550 |
650 |
|
Grade 12 |
0.3 |
0.25 |
0.03 |
0.1 |
0.015 |
|
|
|
0.3 |
0.8 |
25 |
414-460 |
499-600 |

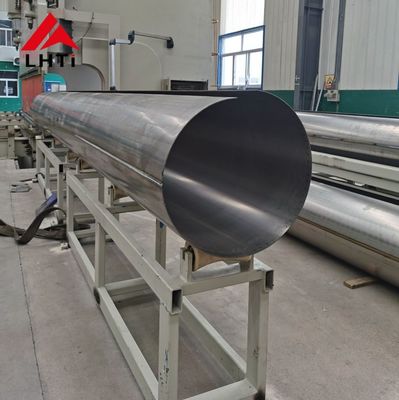

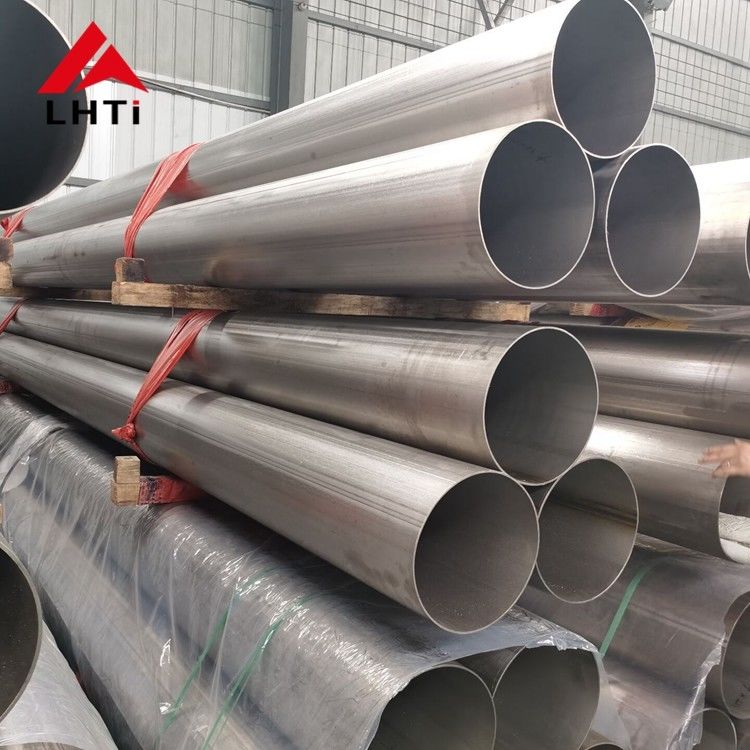

Detailed images:
The third party testing report:
Packaging and shipping:
Over 15 years experience in titanium production and export
Ensure the goods arrive at the customer's port in perfect condition
Standard export packaging, inside the foam film protection, outside plywood case
